| Processor Support |
| Processor Support | Dual and Single Intel® and AMD processors |
| System Monitoring |
| System Monitoring | Chassis intrusion switch |
| Power Supply |
| Certification | Titanium Certified |
| Power Efficiency | 96% |
| Total Output Power and Input | 1200W with Input 200 - 240Vac |
| 1000W with Input 100 - 127Vac |
| 1200W with Input 200 - 240Vdc |
| AC Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 336 x 76 x 40 mm |
| Output Type | Backplanes (gold finger) |
| +12V | Max: 100A / Min: 0A (200Vdc - 240Vdc) |
| Max: 100A / Min: 0A (200Vac - 240Vac) |
| Max: 83A / Min: 0A (100Vac - 127Vac) |
| +5Vsb | Max: 4A / Min: 0A |
| Power Distributor | -12V Max: 0.6A |
| PDB-PT826-8824 |
| O/P: 12V/135 |
| +5V Max: 40A |
| +3.3V Max: 24A |
| Product SKUs |

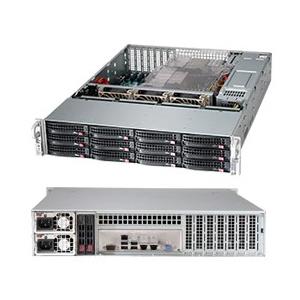

| Product SKUs | CSE-826BAC12-R1K23LPB |
| Form Factor |
| Form Factor | 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68" with rear 2.5" HDD option installed |
| Dimensions |
| Height | 3.5" (89 mm) |
| Width | 17.2" (437 mm) |
| Depth | 25.5" (647 mm) |
| Gross Weight | 55 lbs (24.95 kg) |
| Net Weight | 40 lbs (18.14 kg) |
| Packaging (W x H x L) | 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) |
| Available Color | Black |
| Expansion Slots |
| Expansion Slots | 7x Low-profile expansion slot(s) |
| Drive Bays |
| Drive Bays | Optional 2x 2.5" hot-swap drive bay |
| 12x 3.5" hot-swap drive bay |
| 12x SAS3/SATA3/NVMe4 storage devices |
| Backplane |
| Backplane | 12-Port 2U LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS |
| Front Panel |
| Button | Power On/Off button |
| System Reset button |
| LED | Power status LED |
| HDD activity LED |
| 2 Network Activity LEDs |
| Unit Identification (UID) LED |
| Fan Fail/System Over Heat LED |
| Systems Cooling |
| Fans | 3x 8cm high-performance PWM fan(s) |
| Operating Environment (System) |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | CCC |
| BSMI |
| CE/EMC |
| FCC class A |
| UL/CUL |
| UL/CB |
