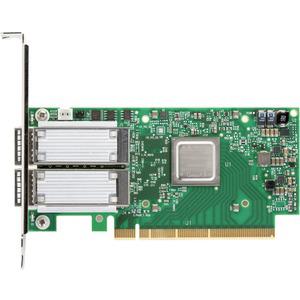

Supermicro AOC-MCX556A-ECAT ConnectX-5 VPI EDR IB Network Interface Card 100GbE Dual-Port
NVMe over fabric (NVMf) offloads
Adaptive routing on reliable transport
Tag matching and rendezvous offloads
Back-end switch elimination by host chaining
ConnectX-5 VPI EDR InfiniBand Network Interface Card 100GbE Dual-Port QSFP28, PCIe 3.0 x16, RoHS
Tag matching and rendezvous offloads
Adaptive routing on reliable transport
Burst buffer offloads for background checkpointing
NVMe over fabric (NVMf) offloads
Back-end switch elimination by host chaining
Embedded PCIe switch
Enhanced vSwitch/vRouter offloads
Flexible pipeline
RoCE for overlay networks
PCIe Gen 4 support
Extra Specifications for Supermicro AOC-MCX556A-ECAT ConnectX-5 VPI EDR IB Network Interface Card 100GbE Dual-Port
| Main Specifications | ||
| Device Type | Network adapter - 2 ports | |
| Form Factor | Plug-in Card | |
| Interface (Bus) Type | PCI Express 3.0 x16 | |
| PCI Specification Revision | PCIe 3.0 | |
| Dimensions (WxDxH) | 5.6 in x 2.7 in | |
| Networking | ||
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand | |
| Data Transfer Rate | 100 Gbps | |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI | |
| Expansion / Connectivity | ||
| Expansion / Connectivity | 2 x 100Gb Ethernet / 100Gb Infiniband - QSFP28 | |
| Miscellaneous | ||
| RoHS Compliant | Yes | |
| Features | Auto-negotiation, VLAN support, InfiniBand QDR Link support, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), InfiniBand DDR Link support, Jumbo Frames support, RDMA support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, InfiniBand FDR Link support, Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), InfiniBand EDR Link support, InfiniBand SDR Link support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), On demand paging (ODP) | |
| Compliant Standars | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by | |
| Warranty: | 1 year |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Mellanox |
| Type of Support: | FULL |
| Phone No.: | 408-916-0055 |
| URL: | Click here for Manufacturer Website |
