Supermicro AS-1124US-TNRP Barebone 1U A+ AMD EPYC 7002 Series
• Virtualization
• Cloud Computing
• High End Enterprise Server
Barebone 1U Rackmount for Dual AMD EPYC 7002, up to 8TB DDR4 ECC 3200MHz memory in 32 DIMM slots, 12 Hot-Swap U.2 Gen4/Gen3 NVMe Drive bays (optional support for 12 SAS3 or SATA3 via additional cables), Dual 10BaseT + Dual 10G SFP+ LAN ports, IPMI 2.0 + KVM, Redundant 1200W Power Supplies (CSE-119UHTS-R1K22HP-T + MBD-H12DSU-iN)
- AS -1124US-TNRP
1. Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
3. Expansion slots: 2 PCI-E 4.0 x16 (FH, 9.5"L), 1 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x16 (internal proprietary LP slot) [ Details ]
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
6. Drive Bays: 12 Hot-swap 2.5" U.2 NVMe drive bays or SATA3/SAS3 (via optional SAS kit)
7. 1200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1124US-TNRP Barebone 1U A+ AMD EPYC 7002 Series
Motherboard | ||
Motherboard | Super H12DSU-iN | |
Processor/Cache | ||
CPU | Socket SP3 | |
Supports CPU TDP up to 280W * | ||
Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
Cores | Up to 64 Cores | |
Note | * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
System Memory | ||
Memory Capacity | 8-channel memory bus | |
32 DIMM slots | ||
Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM | ||
Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB | |
Memory Voltage | 1.2V | |
Error Detection | Corrects single-bit errors | |
Detects double-bit errors (using ECC memory) | ||
On-Board Devices | ||
Chipset | System on Chip (SoC) | |
SATA | SATA3 (6Gbps) | |
Network Connectivity | Networking options provided via Ultra Riser card | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Graphics | ASPEED AST2500 BMC | |
Input / Output | ||
NVMe | 12 NVMe ports (default) | |
LAN | 1 RJ45 Dedicated IPMI LAN port | |
Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4 | ||
USB | 4 USB 3.0 ports (2 rear + 1 Type A + 1 front) | |
VGA | 1 VGA port | |
SAS | 12 SAS3 ports support via optional SAS kit | |
SATA | 12 SATA3 ports support via optional kits | |
Others | 1 COM port (rear) | |
2 SATA DOM power connectors | ||
TPM 2.0 header | ||
System BIOS | ||
BIOS Type | AMI 128Mb SPI Flash EEPROM | |
Management | ||
Software | NMI | |
KVM with dedicated LAN | ||
Redfish API | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SSM , SPM , SUM | ||
Power Configurations | ACPI Power Management | |
Power-on mode control for AC power loss recovery | ||
PC Health Monitoring | ||
CPU | 4+1 Phase-switching voltage regulator | |
Monitors for CPU Cores, Chipset Voltages, Memory. | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 1U Rackmount | |
Model | CSE-119UHTS-R1K22HP-A | |
Dimensions and Weight | ||
Height | 1.7" (43mm) | |
Width | 17.2" (437mm) | |
Depth | 29.1" (739mm) | |
Package | 7.8" (H) 23.66" (W) 37.13" (D) | |
Gross Weight | 48 lbs (21.8 kg) | |
Available Color | Black | |

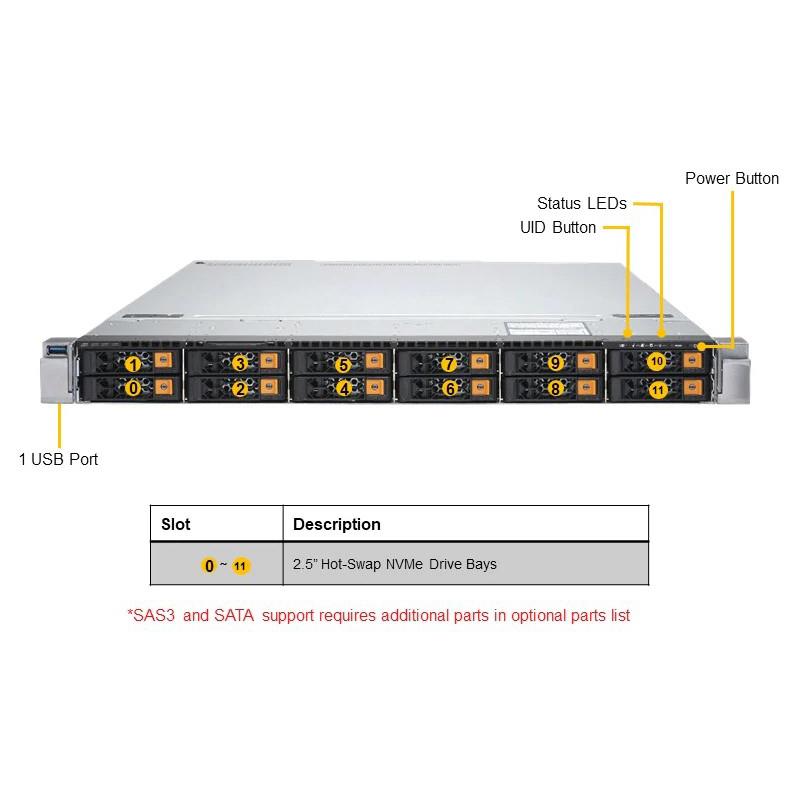

Front Panel | ||
Buttons | Power On/Off button | |
System UID button | ||
LEDs | Power LED | |
Network activity LEDs | ||
Hard drive activity LED | ||
UID LED | ||
Expansion Slots | ||
PCI-Express | 2 PCI-E 4.0 x16 (FH/HL, 9.5"L) | |
1 PCI-E 4.0 x16 (LP) | ||
1 PCI-E 4.0 x16 (internal proprietary LP slot) | ||
Drive Bays | ||
Hot-swap | 12 Hot-swap 2.5" U.2 NVMe drive bays | |
Backplane | ||
HDD Backplane | Supports 12 NVMe or 12 SAS3 HDD or 12 SATA3 | |
System Cooling | ||
Fans | 8 Heavy duty fans with optimal fan speed control | |
Air Shroud | 1 Air Shroud | |
Power Supply | ||
Power Supply | 1200W Redundant Power Supplies with PMBus | |
Total Output Power | 800W: 100 – 127Vac | |
1200W: 200 – 240Vac | ||
1200W: 200 -240Vdc (for CCC only) | ||
Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
Input | 100-127Vac / 9.8 - 7A / 50-60Hz | |
200-240Vac / 7.5 - 6A / 50-60Hz | ||
200-240Vdc / 7.5 - 6A (for CCC only) | ||
+12V | Max: 66.7A / Min: 0A (100-127Vac) | |
Max: 100A / Min: 0A (200-240Vac) | ||
Max: 100A / Min: 0A (200-240Vdc) | ||
+12Vsb | Max: 2.1A / Min: 0A | |
Output Type | 25 Pairs Gold Finger Connector | |
Certification | Titanium Level | |
Operating Environment | ||
RoHS | RoHS Compliant | |
Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Operating Temperature: 10°C ~ 30°C (50°F ~ 86°F) | ||
Product SKUs | ||
Product SKUs | A+ Server 1124US-TNRP (Black) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-H12DSU-iN | 1 | Super H12DSU-iN Motherboard | |
Motherboard / Chassis | CSE-119UHTS-R1K22HP-A | 1 | CSE-119UHTS-R1K22HP-A chassis | |
Add-on Card / Module | AOC-URG4N4-I4XTS-P | 1 | 1U Ultra Riser with 2-port 10GBase-T RJ45 & 2-port 10G SFP+, based on Intel Carlsville X710-AT2, with 1 PCI-E 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8).,RoHS | |
Backplane | BPN-SAS3-119A-N12 | 1 | 1U Hybrid BPN for 12x2.5"; SAS3/SATA3/NVMe Storage Devices | |
Cable 1 | CBL-CDAT-0190 | 1 | CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,30CM,28AWG,RoHS | |
Cable 2 | CBL-PWEX-0781 | 1 | PWR EXT,2X4F/P4.2 TO TWO 2X2F/P4.2,CPU(5,12V),65/65CM,18AWG | |
Cable 3 | CBL-PWEX-1067 | 1 | PWR EXT,2X4F to 2x2, 42CM,18AWG, 8A/pin,RoHS | |
Cable 4 | CBL-SAST-1243-85 | 1 | Slimline x8 (LE) to Slimline x8 (RE),43CM,85 OHM | |
Cable 5 | CBL-SAST-1254F-85 | 1 | Slimline x8 (STR) to Slimline x8 (RE/LE),FFC,54CM,85 OH | |
Cable 6 | CBL-SAST-1258-85 | 1 | Slimline x8 (RE) to Slimline x8 (LE),58CM,85 OHM | |
Cable 7 | CBL-SAST-1260-85 | 1 | Slimline x8 (LE) to Slimline x8 (LE),60CM,85 OHM | |
Cable 8 | CBL-SAST-1263F-85 | 1 | Slimline x8 (LE) to 2x Slimline x4 (RA),FFC,63/65CM,85 | |
Drive Tray(s) | MCP-220-00178-0B | 12 | 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH | |
Riser Card | RSC-W-66G4 | 1 | 1U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS | |
Riser Card | RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS | |
Heatsink / Retention | SNK-P0062P | 2 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
* Power Supply | PWS-1K22A-1R | 2 | 1U 1200W/800W Titanium Redundant Power Supply CRPS 73.5x203x40mm,RoHS/REACH | |
* FAN | FAN-0163L4 | 8 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Storage Control Card and Cable(s) | AOC-S3008L-L8e & | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA | |||
Storage Control Card and Cable(s) | 2x CBL-SAST-0531 | 0 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s | |||
Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E | |||
Storage Control Card and Cable(s) | AOC-S3008L-L8i & | 0 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s | |||
Storage Control Card and Cable(s) | 2x CBL-SAST-0531 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 | |||
Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s | |||
Storage Control Card and Cable(s) | AOC-S3108L-H8iR/16DD & | 0 | MegaRAID SAS 9361-16i | |||
Storage Control Card and Cable(s) | 2x CBL-SAST-0531 | 0 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s | |||
Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | 16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP | |||
Storage Control Card and Cable(s) | AOC-SAS3-9361-16I & | 0 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s | |||
Storage Control Card and Cable(s) | 3x CBL-SAST-0531 | 0 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS | |||
Storage Control Card and Cable(s) | (support up to 12 SAS3 HDD) | 0 | Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS | |||
Storage Control Card and Cable(s) | AOC-S3616L-L16IT & | 0 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS | |||
Storage Control Card and Cable(s) | 3x CBL-SAST-0531 | 0 | Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS | |||
Storage Control Card and Cable(s) | (support up to 12 SAS3 HDD) | 0 | 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS | |||
Storage Control Card and Cable(s) | AOC-S3808L-L8iT & | 0 | Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS | |||
Storage Control Card and Cable(s) | 1x CBL-SAST-1264-100 | 0 | 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS | |||
Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS | |||
Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD & | 0 | - | |||
Storage Control Card and Cable(s) | 1x CBL-SAST-1264-100 | 0 | - | |||
Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | - | |||
Storage Control Card and Cable(s) | AOC-S3816L-L16iT & | 0 | - | |||
Storage Control Card and Cable(s) | 2x CBL-SAST-1264-100 | 0 | - | |||
Storage Control Card and Cable(s) | (support up to 12 SAS3 HDD) | 0 | - | |||
Storage Control Card and Cable(s) | AOC-S3916L-H16iR-32DD & | 0 | - | |||
Storage Control Card and Cable(s) | 2x CBL-SAST-1264-100 | 0 | - | |||
Storage Control Card and Cable(s) | (support up to 12 SAS3 HDD) | 0 | - | |||
M.2 by AOC | AOC-SLG3-2M2 | $ 54.00 | 1 | LP, PCIe3 x8, Dual port NVMe M.2 carrier | ||
M.2 by AOC | AOC-SLG3-2H8M2 | $ 188.00 | 1 | 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS | ||
HDD Tray for SAS/SATA | MCP-220-00187-0B | $ 23.50 | 1~12 | Tool-less black hot-swap 2.5" drive tray (red tab) | ||
CacheVault(s) | BTR-TFM8G-LSICVM02 | 0 | CacheVault for Broadcom 3108 | |||
CacheVault(s) | BTR-TFM8G-LSICVM02 | 0 | CacheVault for Broadcom 3108 | |||
CacheVault(s) | BTR-CVPM05 | $ 207.50 | 0 | Cache Vault for 3908/3916 controller | ||
CacheVault(s) | BTR-CVPM05 | $ 207.50 | 0 | Cache Vault for 3908/3916 controller | ||
TPM | AOM-TPM-9665H | $ 43.00 | 0 | Horizontal TPM using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
SATADOM | SSD-DM128-SMCMVN1 | $ 140.50 | 0 | SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH | ||
SATADOM | SSD-DM480-SMCMVN1 | 0 | SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS | |||
SATADOM | SSD-DM064-SMCMVN1 | $ 84.00 | 0 | SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
SATADOM | SSD-DM032-SMCMVN1 | $ 60.50 | 0 | SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
SATADOM | MEM-IDSAVS4-032G | 0 | SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725) | |||
SATADOM | MEM-IDSAVM8A-128G | 0 | SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411) | |||
SATADOM | MEM-IDSAVM8A-256G | 0 | SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411) | |||
SATADOM | MEM-IDSAVE1-064G | 0 | SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i) | |||
SATADOM | MEM-IDSAVS3-032G | 0 | SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710) | |||
SATADOM | MEM-IDSAVT1-256G | 0 | IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP | |||
Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
