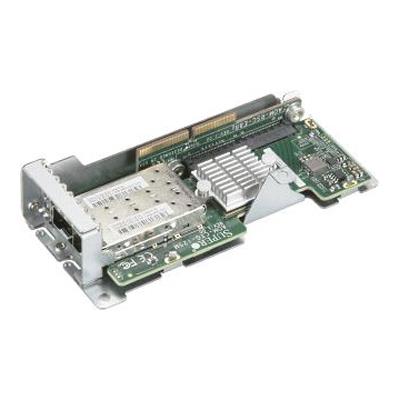

Supermicro AOM-CTG-i2SM-12 2-Port MicroLP 10GbE SFP+ Adapter Card with Intel 82599EN
Small MicroLP, fit Supermicro MicroCloud 12-node systems
Virtualization, flexibility for LAN and SAN networking, With NC-SI built-in
Intel QuickData Technology, VMDq, and PC-SIG SR-IOV, RoHS Compliant 6/6
Dual 10GbE SFP+ Connectors, Supports Direct Attach Copper and Fiber Cables
Dual Port MicroLP 10GbE SFP+ Adapter Card, Intel 82599EN - For MicroCloud and Twin Server Systems with microLP Expansion Slot For system integration / bundle, ONLY
The AOM-CTG-i2SM-12 10 Gigabit Ethernet Adapter is the most compact and scalable 10G Ethernet adapter for today’s demanding data center environments.
With NC-SI built-in, this adapter provides connection for both data and remote management which simplifies cabling needs in a data center.
The AOM-CTG-i2SM-12 is designed in a proprietary and small MicroLP form factor to fit Supermicro MicroCloud 12-node systems.
Based on the Intel 10GbE network controller 82599ES, it addresses the demanding needs of the next-generation data center by providing features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance.
Extra Specifications for Supermicro AOM-CTG-i2SM-12 2-Port MicroLP 10GbE SFP+ Adapter Card with Intel 82599EN
|Device Type||10 Gigabit Ethernet Adapter|
|Dimensions (WxDxH)||Card PCB dimensions: 113mm (4.45in) x 49mm (1.93in)|
|Expansion / Connectivity|
|Expansion / Connectivity||Dual 10GbE SFP+|
|Features||Direct Cache Access (DCA) to avoid cache misses, MSI-X support to minimize the overhead of interrupts, allowing loadbalancing between multiple cores/CPUs, Tx/Rx IP, SCTP, TCP and UDP checksum offloading capabilities (IPv4, IPv6), Receive and Transmit Side Scaling for Windows environments and scalable I/O for Linux environments|
|Cables Required||SFP+ Direct attach copper cables|
|Fiber-optic cables (with required optional SFP+ transceivers)|
|Compatible Servers||SYS-5039MC-H12TRF (X11SCE-F)|
|Compliance Standards||RoHS Compliant 6/6|
|Virtualization Features||VMDq, Next-Generation VMDq (64 queues per port), PC-SIG SR-IOV implementation (64 virtual functions per port), Advanced Packet Filtering, VLAN support to allow creation of multiple VLAN segments, VXLAN through Software|
|Management Features||Preboot eXecution Environment (PXE) support, Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistics counters, iSCSI remote boot, NC-SI for remote management, Asset Management support on Supermicro platforms, Controller asset tags such as part number, revision, serial number, and MAC addresses|
|Software||Teaming support, IEEE 802.3ad (link aggregation control protocol), IEEE 802.1Q VLANs, IEEE 802.3 2005 flow control support|
|Software / System Requirements|
|OS Support||Windows Server, Windows, RedHat Linux, SUSE Linux, FreeBSD, UEFI, VMware|
|Power Consumption||7 W|
|Operating Environment||Operating temperature: 0°C to 55°C (32°F to 131°F)|
|Storage temperature: -40°C to 70°C (-40°F to 158°F)|
|Storage humidity: 90% non-condensing relative humidity at 35°C|
|Warranty:||3 years labor, 1 year parts, 120 days advanced replacement (DOA)|
|URL:||Click here for Manufacturer Website|
|Coverage:||Replacement or Repair|
|Average Service Time:||Overnight Replacement for 120 days, 2 weeks afterwards|
