Add-on Card |

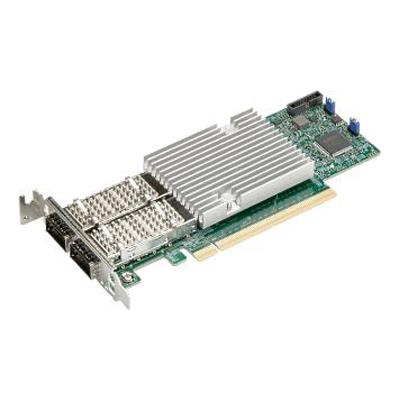

Add-on Card | The Supermicro AOC-S100GC-i2C is a high-performance leading-edge 100Gb/s Ethernet adapter featuring Intel® E810-CAM2 with PCI-E Gen 4 support with backward compatibility to PCI-E Gen 3. It is also a feature-rich adapter that provides support to RoCE, iWarp, DCDB, VXLAN, NVGRE and Geneve. The support of both RoCE and iWarp delivers low latency and high efficiency over Ethernet networks. The Supermicro AOC-S100GC-i2C adapter is an excellent solution for your cloud-scale networking, storage, machine learning, data analytics and HPC. |
Compliance |
RoHS | RoHS Compliant 6/6 |
Downloads |
Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-S100GC-i2C.pdf ] |
Driver | Choose the latest CDR-NIC folder, and then click on the Intel folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
Specification |
Host Interface | Message Signal Interrupt (MSI-X) |
| PCI-E v4.0 (16GT/s) |
| Backward compatible with PCIe-E v3.0 |
Networking Features | Virtual LANs 802.1q VLAN tagging |
| Jumbo Packet (9K Max) |
| Teaming |
| Up to four 25Gb Connections or eight 10Gb connections |
Stateless Offload Features | TCP, UDP, IPv4, IPv6 checksum offload |
| Large Send Offload |
| Receive Segment Coalescing |
| TCP segmentation Offload |
| Large Receive Offload |
| Receive Side Scaling (RSS) |
Virtualization Features | VXLAN |
| NVGRE |
| Geneve |
| SR-IOV |
| 768 Virtual Station Interface (VSI) |
| 8 Physical Functions (PF) |
| Microsoft VM Queue |
| DPDK Support |
| QoS: Priority-based Flow Control (802.1Qbb) |
| WMWare NetQueue |
| Enhanced Transmission Selection (802.1Qaz) |
RDMA over Converged Ethernet (iWARP and RoCE) | iWARP |
| RoCEv2 |
| Data Center Bridging |
Manageability | Asset Management with Thermal Sensors |
| Network Controller Sideband Interface (NC-SI)* |
Remote Boot | iSCSI Boot |
| Legacy PXE Boot |
| UEFI PXE Boot |
Data Center Bridging | Enhanced transmission – IEEE 802.1Qaz |
| Priority based Flow Control – IEEE 802.1Qbbb |
| Edge Virtual Bridging - IEEE 802.Qbg |
Power Saving | ACPI Compliant power management |
| Pass through Energy Efficient Ethernet (IEEE802.3az-2010) |
Operating Conditions | Storage temperature: -40°C to 70°C (-40°F to 158°F) |
| Storage humidity: 90% non-condensing relative humidity at 35°C |
| Intel E810-CAM2 Ethernet Controller |
