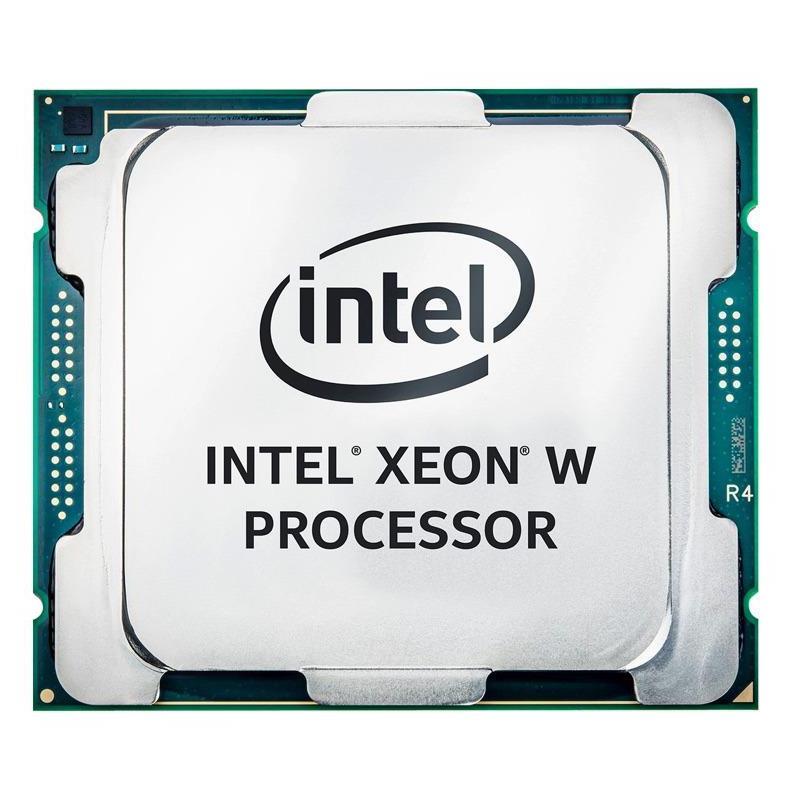

Intel CM8070104380910 Xeon W-1270 3.4GHz 8-Core Processor - Comet Lake
3.40GHz Xeon W-1270 FCLGA1200
8-Cores, 16 thread - 16 MB Intel Smart Cache
Ideal for mainstream workstation professionals
Xeon W processors deliver optimized performance
3.4GHz Xeon W-1270 8-Core (16 Threads), FCLGA1200 socket, 16MB Cache, 14nm, 80W TDP, P630, 1P, HT (OEM, Tray)
Enables performance boosts, plus enhanced app response times for your commonly used applications.
Delivers two processing threads per physical core. Highly threaded applications can get work done in parallel, completing tasks sooner.
Dynamically increases the processor’s frequency, as needed, by taking advantage of thermal and power headroom when operating below specified limits.
Extra Specifications for Intel CM8070104380910 Xeon W-1270 3.4GHz 8-Core Processor - Comet Lake
| Main Specifications | ||
| Device Type | Processor | |
| Processor Number | W-1270 | |
| Clock Speed | 3.40 GHz | |
| Max Turbo Speed | 5.00 GHz | |
| Multi-Core Technology | 8-Cores | |
| Number of Threads | 16-Threads | |
| Product Collection | Intel Xeon W Processor | |
| Code Name | Products formerly Comet Lake | |
| Vertical Segment | Workstation | |
| Bus Speed | 8 GT/s | |
| Miscellaneous | ||
| Use Conditions | Workstation | |
| Features | Enhanced SpeedStep technology, Hyper-Threading Technology, Execute Disable Bit capability, Intel Virtualization Technology, Intel 64 Technology, Intel Trusted Execution Technology, streaming SIMD extensions 4.1, streaming SIMD extensions 4.2, Intel Turbo Boost Technology 2.0, Intel AES New Instructions (AES-NI), Thermal Monitoring Technologies, Intel Virtualization Technology for Directed I/O (VT-d), Intel vPro Technology, Idle States, Intel VT-x with Extended Page Tables (EPT), Intel Identity Protection Technology, Intel Secure Key, Intel Advanced Vector Extensions 2 (AVX2.0), Intel OS Guard, Intel Software Guard Extensions (SGX), Intel Turbo Boost Max Technology 3.0, Intel Optane Memory Supported, Intel Boot Guard | |
| Processor | ||
| Cache | 16 MB Intel Smart Cache | |
| Thermal | ||
| Design Power | 80 W | |
| Specification | 100 °C | |
| Memory Specifications | ||
| Max Memory Size (dependent on memory type) | 128 GB | |
| Memory Types | DDR4-2933 | |
| Max # of Memory Channels | 2 | |
| Max Memory Bandwidth | 45.8 GB/s | |
| ECC Memory Supported | Yes | |
| Integrated Graphics | ||
| Type | Intel UHD Graphics P630 | |
| Base Frequency | 350 MHz | |
| Max Dynamic Frequency | 1.2 GHz | |
| Max Supported Memory Size | 64 GB | |
| Max Supported Resolution | 4096x2304@60Hz (eDP), 4096x2304@60Hz (DP), 4096x2160@30Hz (HDMI) | |
| Features IG | Intel Clear Video Technology, Intel Clear Video HD Technology, InTRU 3D Technology, Intel Quick Sync Video, Triple Display Capable | |
| Expansion Options | ||
| Scalability | 1S | |
| PCI Express Revision | 3.0 | |
| PCI Express Configurations | 1x16, 2x8, 1x8/2x4 | |
| Max # of PCI Express Lanes | 16 | |
| Package Specifications | ||
| Sockets Supported | FCLGA1200 | |
| Max CPU Configuration | 1 | |
| Package Size | 37.5mm x 37.5mm | |
| Security Features | ||
| Security Features | Intel AES New Instructions, Secure Key, Intel Software Guard Extensions (Intel SGX) - Yes with Intel ME, Intel OS Guard, Intel Trusted Execution Technology, Execute Disable Bit, Intel Boot Guard | |
