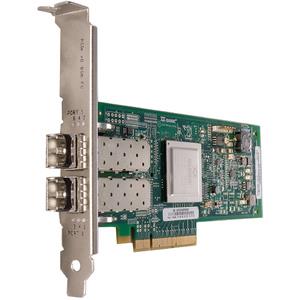

QLogic QLE2562 8Gb/s Fibre Channel Card - Gen 2 PCI-E x8 Dual-Port SFP+ Connectors Low-profile
Power optimized, StarPower technology
Security optimized, 3200 MBps (full-duplex)
Reliability, Availability, Serviceability (RAS) optimized
2-Port 8Gbps Fibre Channel PCI-E 2.0 x8 Fibre Channel Card
The QLE2562 is a PCI Express, dual port, Fiber Channel (FC) Host Bus Adapter (HBA).
The QLE2562 is part of the QLE2500 HBA product family that offers next-generation 8Gb FC technology, meeting the business requirements of the enterprise data center.
Virtualization Optimized. The QLE2562 delivers enhanced security, Quality of Service (QoS), and enables dynamic provisioning.
The QLE2562 allows multiple logical (virtual) connections to share the same physical port. Each logical connection has its own resources and the ability to be managed independently.
Extra Specifications for QLogic QLE2562 8Gb/s Fibre Channel Card - Gen 2 PCI-E x8 Dual-Port SFP+ Connectors Low-profile
| Main Specifications | ||
| Device Type | Host bus adapter | |
| Form Factor | Plug-in card - low profile | |
| Interface (Bus) Type | PCI Express 2.0 x8 | |
| Dimensions (WxDxH) | Height 2.5" x Width 6.6" | |
| Weight | 3.99 oz | |
| Networking | ||
| Ports | 8Gb Fibre Channel x 2 | |
| Data Link Protocol | 8Gb Fibre Channel | |
| Data Transfer Rate | 8.5 Gbps | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 2 (total) / 0 (free) x SFP+ | |
| Expansion / Connectivity | 2 x 8Gb Fibre Channel - LC multi-mode - x 2 | |
| Compatible Slots | 1 x PCI Express 2.0 x8 | |
| Miscellaneous | ||
| Designed For | Cisco UCS C200 M2 High-Density Rack-Mount Server, C200 M2 Small Form Factor, C210 M2 General-Purpose Rack-Mount Server, C460 M1 High-Performance Rack-Mount Server, C460 M2 High-Performance Rack-Mount Server, S3260 Storage Server | |
| Features | Virtualization optimized, Power optimized, Reliability, Availability, Serviceability (RAS) optimized, Security optimized, Management optimized, 3200 MBps (full-duplex), 200,000 initiator and target IOPS per port, StarPower technology | |
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
| E-mail: | support@qlogic.com |
| If you need Technical Support for this item please contact: | |
| Provider: | QLogic |
| Type of Support: | FULL |
| Phone No.: | 952-932-4040 |
| URL: | Click here for Manufacturer Website |
