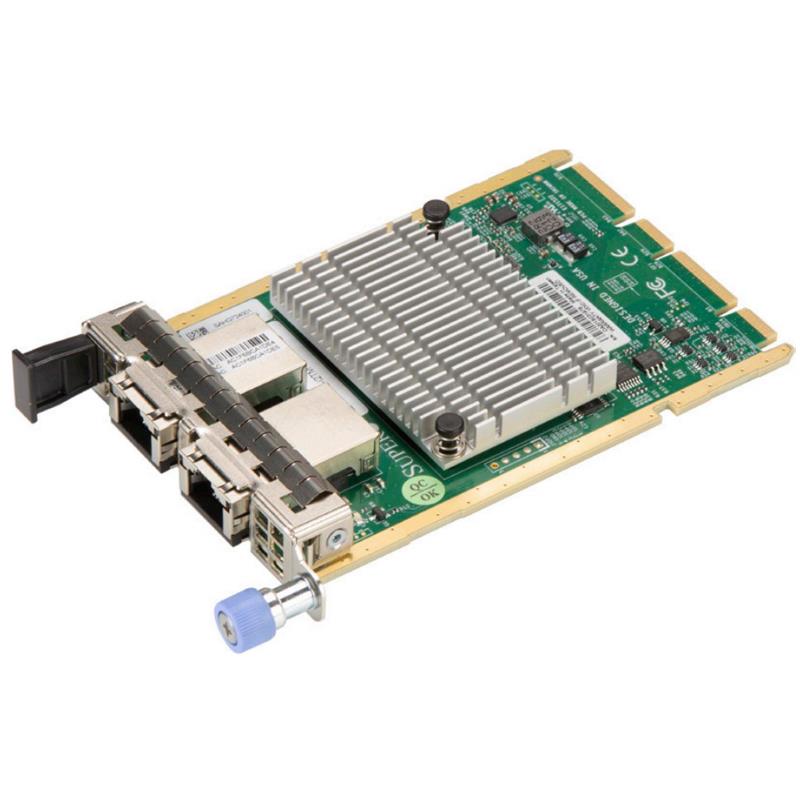

- Supermicro AOC-ATG-i2TM X550 10Gb Ethernet Controller Card Integrated MAC and PHY Dual-port RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0
Supermicro AOC-ATG-i2TM X550 10Gb Ethernet Controller Card Integrated MAC and PHY Dual-port RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0
Network Adapter 2-Port 10GBase-T (AIOM), Intel X550 with integrated MAC and PHY, RoHS
Advanced I/O Module (AIOM) Form Factor
Intel® X550 10GbE controller
Dual RJ45 Connectors
Network Virtualization Offloads: VXLAN and NVGRE
VMDq and SR-IOV for virtualized Environment
Jumbo Frames support up to 15.5KB
Asset Management Features with thermal sensor
NC-SI for Remote Management
Supports RJ45 Category-6 and 6A cables
Extra Specifications for Supermicro AOC-ATG-i2TM X550 10Gb Ethernet Controller Card Integrated MAC and PHY Dual-port RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0
| Add-on Card | ||
| Add-on Card | Supermicro® Advanced I/O Modules (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The AOC-ATG-i2T is one of the most feature-rich low power 10GBase-T controllers in the market today. Based on the Intel® X550 chipset with virtualization features such as VXLAN and NVGRE, it offers flexible connectivity selection for all networking requirements. The integration of 10GbE MAC+PHY with Intel® X550 it helps to drive down both cost and power, enabling the most cost-effective solution in the data center. The AOC-ATG-i2T is among the most innovative 10GbE controllers in the market and an excellent choice to expand network connectivity in the data centers and enterprise environments. To order, contact your distributor. This product is only available through Supermicro. | |
| Compliance | ||
| RoHS | RoHS Compliant 6/6 | |
| Specifications | ||
| I/O Features | Intel Flow Director | |
| MSI/MSI-X support | ||
| Tx/Rx IP, SCTP, TCP, and UDP Checksum Offloading (IPv4, IPv6) Capabilities | ||
| Tx TCP Segmentation Offload (IPv4, IPv6) | ||
| RSS for Windows Environment Scalable I/O for Linux Environments | ||
| Virtualization Features: | Network Virtualization Stateless Offload: VXLAN, NVGRE | |
| Support for Virtual Machine Device Queues (VMDq) | ||
| 64 Transmit (Tx) and Receive (Rx) Queue Pairs Per Port | ||
| FPP – 64 VFs per Port | ||
| PCI-SIG SR-IOV | ||
| 802.1q VLAN support | ||
| Manageability Features: | Preboot eXecution Environment (PXE) support | |
| Remote Boot iSCSI and FCoE | ||
| EEEE 1588 | ||
| Asset Management support on Supermicro® platforms | ||
| NC-SI for Remote Management on Supermicro® platforms | ||
| Cable Support: | RJ45 Category-6 up to 55m; Category-6A up to 100m | |
| Power Consumption: | Maximum power consumption 13W | |
| Operating Conditions: | Storage temperature: -40°C to 70°C (-40°F to 158°F) | |
| Storage humidity: 90% non-condensing relative humidity at 35°C | ||
| Physical Dimensions: | PCB dimensions: 76mm x 115mm (W x D) | |
| Advanced I/O Module (AIOM) Form Factor | ||
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-ATG-i2T_i2TM.pdf ] | |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-ATG-i2T_i2TM.pdf ] | |
| Driver | Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
