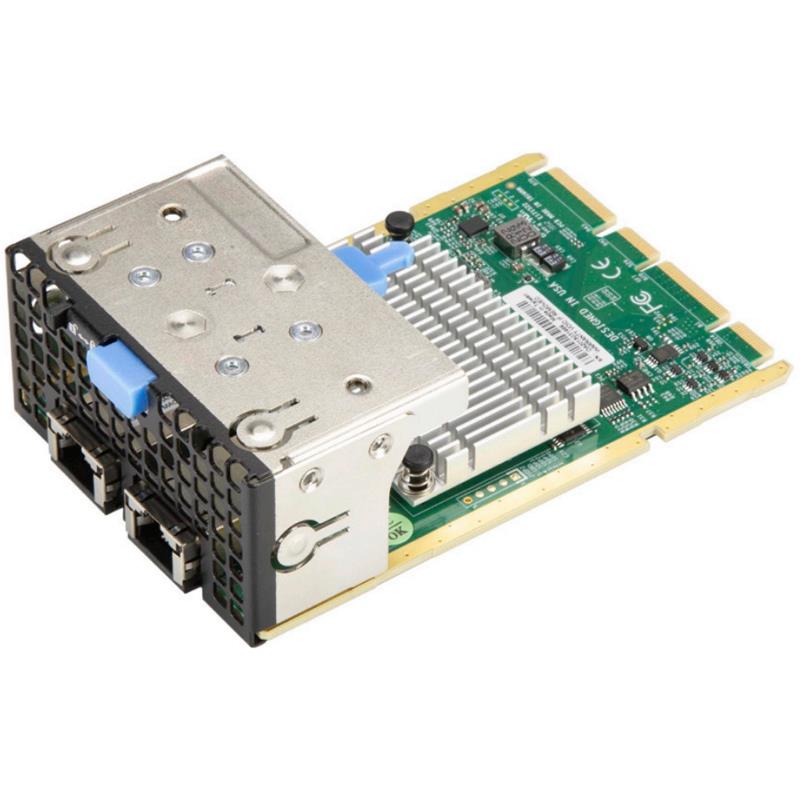

Supermicro AOC-ATG-i2T X550 10Gb Ethernet Controller Card Integrated MAC and PHY Dual-port RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0

Network Adapter 2-Port 10GBase-T (AIOM), Intel X550 with integrated MAC and PHY, RoHS

Supermicro Advanced I/O Modules (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies.
The AOC-ATG-i2T is one of the most feature-rich low power 10GBase-T controllers in the market today.
Based on the Intel X550 chipset with virtualization features such as VXLAN and NVGRE, it offers flexible connectivity selection for all networking requirements.
The integration of 10GbE MAC+PHY with Intel X550 it helps to drive down both cost and power, enabling the most cost-effective solution in the data center.
The AOC-ATG-i2T is among the most innovative 10GbE controllers in the market and an excellent choice to expand network connectivity in the data centers and enterprise environments.

Main Specifications
Device Type	Ethernet Controller
Form Factor	Advanced I/O Module (AIOM)
Miscellaneous
Bracket Included	BKT-0167L - 1U height bracket
Features	Intel Flow Director, MSI/MSI-X support, Tx/Rx IP, SCTP, TCP, and UDP Checksum Offloading (IPv4, IPv6) Capabilities, Tx TCP Segmentation Offload (IPv4, IPv6), RSS for Windows Environment Scalable I/O for Linux Environments
Cables Required	RJ45 Category-6 up to 55m; Category-6A up to 100m
Compliant Standards	RoHS Compliant 6/6
Networking
Ports	Intel X550 dual-port 10GbE controller with integrated MAC and PHY
Virtualization Features	Network Virtualization Stateless Offload: VXLAN, NVGRE, Support for Virtual Machine Device Queues (VMDq), 64 Transmit (Tx) and Receive (Rx) Queue Pairs Per Port, FPP – 64 VFs per Port, PCI-SIG SR-IOV, 802.1q VLAN support
Management Features	Preboot eXecution Environment (PXE) support, Remote Boot iSCSI and FCoE, EEEE 1588, Asset Management support on Supermicro platforms, NC-SI for Remote Management on Supermicro platforms
Power
Power Consumption	Maximum power consumption 13W
Environmental
Operating Environment	Storage temperature: -40°C to 70°C (-40°F to 158°F)
	Storage humidity: 90% non-condensing relative humidity at 35°C

Warranty:	3 years, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
