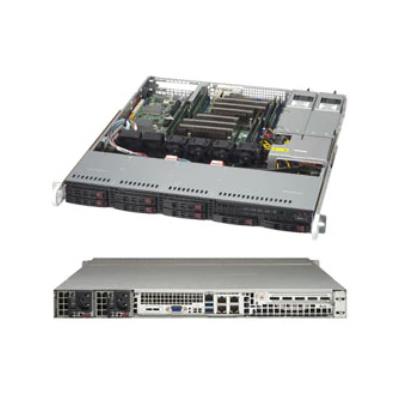

Supermicro CSE-113MFAC2-R804CB 1U Rackmount 800W Redundant Power Supply

Eight hot-swappable 2.5” SAS/SATA hard drive bays
High-end performance, astonishingly short 20” deep chassis
Advanced airflow/thermal design for space-limited applications
Equipped with 800W 1U redundant Platinum Certified power supply

1U Rackmount 800W 1U Redundant Power Supply for ATX motherboard up to 12in x 10in, support single and dual Intel / AMD processors, up to 6x SAS3/SATA 2.5in drives and 2x SAS3/SATA3/NVMe, 1x Full-Height slot - SC113MFAC2-R804CB

1U Chassis, support motherboard size: ATX 12" x 10"
8 x 2.5" hot-swap SAS/SATA drive bay
8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
800W 1U redundant power supply
1 full height expansion slot(s)
4 x 40x28mm PWM fan(s)
Optional 2 x fans for AOC cooling

Extra Specifications for Supermicro CSE-113MFAC2-R804CB 1U Rackmount 800W Redundant Power Supply

Main Specifications
Device Type	SuperChassis
Form Factor	1U Chassis
Supported Mainboards	ATX 12" x 10"
Dimensions (WxDxH)	Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 19.98" (507 mm)
Weight	30 lbs (13.61 kg)
Enclosure Color	Black
Processor Support
Processor Support	Dual and Single Intel and AMD processors
Expansion / Connectivity
Expansion Slots Total (Free)	1 full height expansion slot
Expansion Bays Total (Free)	Optional 1 x slim DVD-ROM drive bay
	8 x 2.5" hot-swap SAS/SATA drive bay
SAS/SATA Backplane
SAS/SATA Backplane	8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Front Panel
Buttons	Power On/Off button, System Reset button
LEDs	2 Network Activity LEDs, HDD activity LED, Power Status LED, Unit Identification (UID) LED
System Cooling
Fans	4 x 40x28mm PWM fan - Optional 2 x fans for AOC cooling
System Monitoring
System Monitoring	Chassis intrusion switch
Environmental
Operating Environment	Operating Temperature Range: 5°C - 35°C (41°F - 95°F)
	Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F)
	Operating Relative Humidity Range: 8% - 90% (non-condensing)
	Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
Power Supply
Power Supply	800W 1U redundant power supply
Certification	80PLUS Platinum Certified
Regulatory Safety / EMC	BSMI, CCC, CE/EMC, UL/CB
Parts List - (Items Included)
Backplane	1x BPN-SAS3-113A-N2
Cable	1x CBL-0335L, 2x CBL-PWCD-0160-IS
Parts	1x MCP-290-00036-0B, 1x MCP-320-00031-0B, 2x MCP-340-00001-01, 1x MCP-260-00078-0N, 1x MCP-290-00037-0N, 1x MCP-250-00016-0V
Fan(s)	4x FAN-0154L4
Front Panel	1x FPB-FP112
Drive Tray	8x MCP-220-00047-0B
Power Distributor(s)	1x PDB-PT813M-2424
Mounting Rails	1x MCP-290-00102-0N, 1x MCP-290-00107-0N, 1x MCP-290-00110-0N
Rear Window	1x MCP-240-00086-0N

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro CSE-113MFAC2-R804CB 1U Rackmount 800W Redundant Power Supply

$ 776.00$ 776.00776.0USD

$ 776.00
