  2. Supermicro CSE-512F-600LB 1U Rackmount 600W Power Supply

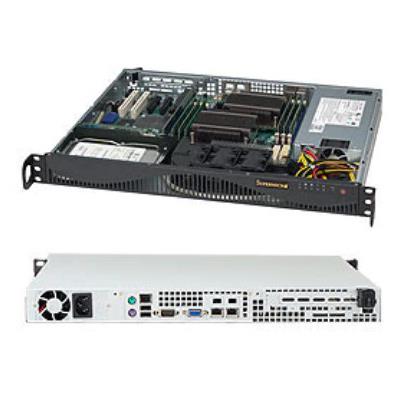

Supermicro CSE-512F-600LB 1U Rackmount 600W Power Supply

Supermicro CSE-512F-600LB 1U Rackmount 600W Power Supply

  • 1 full-height & half-length expansion slot

  • Supports Single and Dual Intel and AMD processors

  • 14.5" Mini 1U chassis, supports motherboard sizes: ATX 12" x 10"

  • Equipped with 600/680W Multi-output 80PLUS gold power supply

1U Rackmount 600W 80PLUS GOLD Power Supply for ATX motherboard up to 12in x 10in, support single and dual Intel / AMD processors, up to 1x 3.5in fixed drive bay, 11x Full-Height Slot - SC512F-600LB

$ 247.50$ 247.50247.5USD

$ 247.50

Option not available

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    • 14.5" Mini 1U chassis - supports for maximum motherboard sizes: ATX 12" x 10"

    • 1 x 3.5" fixed drive bay

    • SAS or enterprise SATA HDD only recommended

    • 1U 600/680W Multi-output 80PLUS Gold power supply, 24pin output

    • 1 full-height & half-length expansion slot(s) (Riser Card Required)

    • 3 x 4cm counter-rotating PWM fan

    Extra Specifications for Supermicro CSE-512F-600LB 1U Rackmount 600W Power Supply

    Main Specifications
    Device TypeSuperChassis
    Form Factor14.5" Mini 1U chassis
    Supported Mainboards12" x 10" ATX
    Dimensions (WxDxH)Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 14.5" (369 mm)
    Weight14 lbs (6.35 kg)
    Enclosure ColorBlack
    Processor Support
    Processor SupportDual and Single Intel and AMD processors
    Expansion / Connectivity
    Expansion Slots Total (Free)1 full-height & half-length expansion slot(s) (Riser Card Required)
    Standard Parts List
    Drive Bays1 x 3.5" fixed drive bay - SAS or enterprise SATA HDD only recommended
    Front Panel
    ButtonsPower On/Off button, System Reset button
    LEDs2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED
    System Cooling
    Fans3 x 4cm counter-rotating PWM fan(s)
    Environmental
    Operating EnvironmentOperating Temperature Range: 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range: 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
    Power Supply
    Power Supply1U 600/680W Multi-output 80PLUS gold power supply, 24pin output
    Certification80 PLUS Gold Certified
    Regulatory Safety / EMCBSMI, CCC, CE/EMC, FCC class B, TUV/CB, UL/CUL
    Parts List - (Items Included)
    Cable1x CBL-0156L, 1x CBL-0160L, 1x CBL-0261L, 1x CBL-0262L
    Fan(s)3x FAN-0087L4
    Front Panel1x MCP-280-51201-0N
    Parts1x MCP-320-00002-01, 2x MCP-290-00005-01, 1x MCP-120-00029-0N
    I/O Shield(s)1x MCP-260-00024-0N, 1x MCP-260-00078-0N
    Power Supply Number1x PWS-601-1H

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
