| Main Specifications |

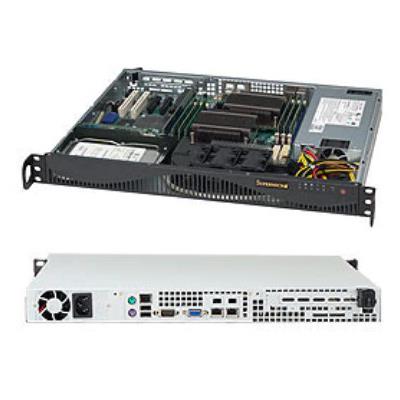

| Device Type | SuperChassis |
| Form Factor | 14.5" Mini 1U chassis |
| Supported Mainboards | 12" x 10" ATX |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 14.5" (369 mm) |
| Weight | 14 lbs (6.35 kg) |
| Enclosure Color | Black |
| Processor Support |
| Processor Support | Dual and Single Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 full-height & half-length expansion slot(s) (Riser Card Required) |
| Standard Parts List |
| Drive Bays | 1 x 3.5" fixed drive bay - SAS or enterprise SATA HDD only recommended |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED |
| System Cooling |
| Fans | 3 x 4cm counter-rotating PWM fan(s) |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Power Supply | 1U 600/680W Multi-output 80PLUS gold power supply, 24pin output |
| Certification | 80 PLUS Gold Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class B, TUV/CB, UL/CUL |
| Parts List - (Items Included) |
| Cable | 1x CBL-0156L, 1x CBL-0160L, 1x CBL-0261L, 1x CBL-0262L |
| Fan(s) | 3x FAN-0087L4 |
| Front Panel | 1x MCP-280-51201-0N |
| Parts | 1x MCP-320-00002-01, 2x MCP-290-00005-01, 1x MCP-120-00029-0N |
| I/O Shield(s) | 1x MCP-260-00024-0N, 1x MCP-260-00078-0N |
| Power Supply Number | 1x PWS-601-1H |
