4 x 2.5" hot-swap SAS/SATA drive bay
Equipped with a 780W, high-efficiency power supply
Support Twin Dual and Single Intel and AMD processors
Highly-optimized design for twin dual-core Xeon platforms

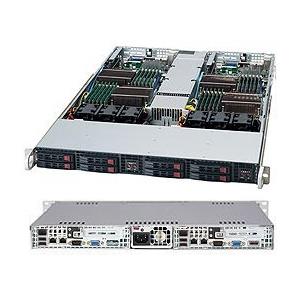

1U Rackmount 780W Power Supply for Twin MB motherboard up to 6.8in x 18in, support twin dual and single Intel / AMD processors, up to 4x SAS/SATA 2.5in drive bay, 1 low-profile expansion slot - SC809T-780B
1U Chassis - supports for Twin MB, max. motherboard size of 6.8" x 18"
4 x 2.5" hot-swap SAS/SATA drive bay
4-port 1U SC809/SC111 backplane (W/O enclosure management), support up to 4x 2.5-inch SAS/SATA HDD
1U 780W cold swap power supply.
1 low-profile expansion slot(s)
3 x 40x56mm counter-rotation PWM fan
| Main Specifications | ||
| Device Type | SuperChassis 809T-780B | |
| Form Factor | 1U Chassis | |
| Supported Motherboards | Supports for Twin MB, max. motherboard size of 6.8" x 18" | |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 27.75" (705 mm) | |
| Weight | 40 lbs (18.14 kg) | |
| Enclosure Color | Black | |
| Processor | ||
| Compatible Processors | Twin Dual and Single Intel and AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 low-profile expansion slot(s) | |
| Expansion Bays Total (Free) | 4 x 2.5" hot-swap SAS/SATA drive bay | |
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 4-port 1U SC809/SC111 backplane (W/O enclosure management), support up to 4x 2.5-inch SAS/SATA HDD | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button | |
| LEDs | Power Status LED, HDD activity LED, 2 Network Activity LEDs, Unit Identification (UID) LED | |
| System Cooling | ||
| Fans | 3 x 40x56mm counter-rotation PWM fan(s) | |
| Environmental | ||
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) | ||
| Operating Relative Humidity Range: 8% - 90% (non-condensing) | ||
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) | ||
| Power Supply | ||
| Power Supply | 1U 780W cold swap power supply | |
| Certification | N/A | |
| Regulatory Safety / EMC | CCC, CE/EMC, FCC class A, TUV/CB | |
| Parts List - (Items Included) | ||
| Air Shroud | 2x MCP-310-18008-0N | |
| Backplane | 2x BPN-SAS-809T-P | |
| Cable(s) | 2x CBL-0086, 2x CBL-0207L, 2x CBL-0226L, 2x CBL-0227L, 2x CBL-0228L, 2x CBL-0303L | |
| Fan(s) | 6x FAN-0085L4, 6x FAN-0101L4, 1x MCP-340-00021-0N, 1x MCP-340-00030-0N | |
| Front Panel | 2x MCP-280-80901-0N | |
| Drive Tray(s) | 8x MCP-220-00047-0B | |
| Parts | 2x MCP-290-00033-0N, 2x MCP-160-80901-0N, 1x MCP-250-80801-0N | |
| Mounting Rails | 1 set MCP-290-00042-0V | |
| Rear Window | 2x MCP-240-00038-00 | |
| Power Supply Number | 1x PWS-781-1S | |
| Power Distributor(s) | 1x PDB-PT808-S20 | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
