  2. Supermicro CSE-813MT-410CB 1U Rackmount 410W Power Supply

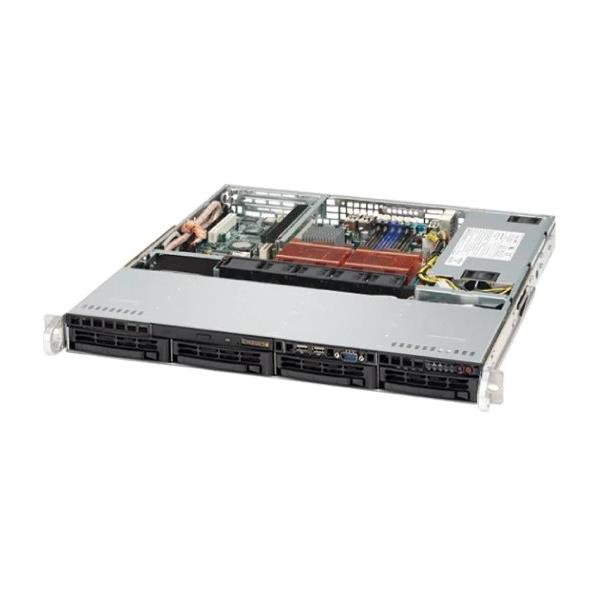

Supermicro CSE-813MT-410CB 1U Rackmount 410W Power Supply
Supermicro CSE-813MT-410CB 1U Rackmount 410W Power Supply

Supermicro CSE-813MT-410CB 1U Rackmount 410W Power Supply

  • 4x 3.5" Hot-swap SAS / SATA Drive Bays

  • Support Dual, single Intel / AMD processors

  • Support for maximum motherboard size: ATX 12" x 10"

  • Equipped with 410W 48Vdc input Multi-output power supply

1U Rackmount 410W Power Supply for ATX motherboard up to 12in x 10in and Micro-ATX 9.6in x 9.6in, support single and dual Intel / AMD processors, up to 4x SAS/SATA 3.5in drive bays, 1x Full-Height, Half-Length Slot - SC813MT-410CB

$ 448.50$ 448.50448.5USD

$ 448.50

Option not available

    This combination does not exist.

    Add to Cart

    • 1U chassis support for maximum motherboard size: ATX 12" x 10"

    • 1x Full-height, Half-length Expansion Slot

    • 4x 3.5" Hot-swap SAS / SATA Drive Bays

    • 1x Slim DVD ROM Drive (Optional)

    • 2x Front USB ports, 1x COM port

    • 4x 4cm 12,500 RPM PWM Fans

    • 410W -48Vdc input Multi-output power supply

    Extra Specifications for Supermicro CSE-813MT-410CB 1U Rackmount 410W Power Supply

    Main Specifications
    Device TypeSuperChassis 813MT-410CB
    Form Factor1U Chassis
    Supported Mainboards ATX 12" x 10" and Micro-ATX 9.6" x 9.6"
    Dimensions (WxDxH)Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 19.85" (503 mm)
    Weight31 lbs (14.06 kg)
    Enclosure ColorBlack
    Processor
    Compatible ProcessorsDual, single Intel / AMD processors
    Expansion / Connectivity
    Expansion Slots Total (Free)1 full-height & half-length expansion slot
    Expansion Bays Total (Free)4 x 3.5" hot-swap SAS/SATA
    Peripheral Bay (Free)Optional 1 x Slim DVD-ROM Drive
    SAS / SATA Backplane
    SAS / SATA Backplane4-port 1U TQ backplane (W/O AMI9071/72 enclosure management), support up to 4x 3.5-inch SAS/SATA HDD
    Front Panel
    ButtonsPower On/Off button, System Reset button
    LEDs2 Network Activity LEDs, HDD activity LED, Power Status LED, System Information LED
    Ports2x USB Port, 1x Com Port
    System Cooling
    Fans4 x 4cm high performance PWM fan(s), Optional 1 x fan for PCI card cooling
    Environmental
    Operating EnvironmentOperating Temperature Range: 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range: 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
    Power Supply
    Power Supply1U 410W -48Vdc input Multi-output power supply, 100mm width
    Regulatory Safety / EMCBSMI, CCC, CE/EMC, FCC class B, TUV/CB, UL/CUL

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
