| Main Specifications |

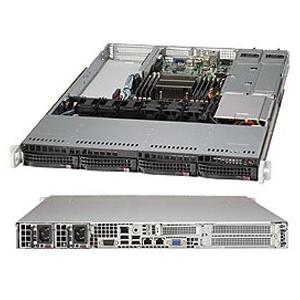

| Device Type | SuperChassis 815TQ-R500WB |
| Form Factor | 1U Chassis |
| Supported Motherboards | E-ATX 12" x 13"; Optimized for WIO (W series) motherboards |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 25.6" (650 mm) |
| Weight | 36 lbs (16.33 kg) |
| Enclosure Color | Black |
| Processor Support |
| Processor Support | Dual and Single Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 low-profile expansion slot(s) (Riser Card Required) |
| 1 full-height & half-length expansion slot(s) (Riser Card Required) |
| 1 full-height & full-length expansion slot(s) (Riser Card Required) |
| Drive Bays |
| Hot-swap | 4 x 3.5" hot-swap drive bay - SAS or enterprise SATA HDD only recommended |
| Peripheral Drives | Optional 1 x slim DVD-ROM drive bay |
| Backplane |
| SAS/SATA HDD Backplane | 4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD |
| Front Panel |
| Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Unit Identification (UID) LED |
| System Cooling |
| Fans | 3 x 4cm heavy duty counter-rotating with optimal fan(s) speed control |
| Environmental Parameters |
| Operating Temperature | Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Power Supply |
| Power Supply | 1U 500W Redundant Single Output power supply W/PMbus 54.5mm width |
| Certification | 80PLUS Platinum Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, TUV/CB, UL/CUL |
| Parts List - (Items Included) |
| Backplane | 1x BPN-SAS-815TQ |
| Cable(s) | 1x CBL-0157L, 1x CBL-0180L-01, 1x CBL-0335L, 2x CBL-PWCD-0160-IS |
| Fan(s) | 3x FAN-0086L4 |
| Front Panel | 1x FPB-FP815U |
| Drive Tray(s) | 4x MCP-220-00075-0B |
| Power Distributor(s) | 1x PDB-PT112-2420 |
| Parts | 1x MCP-120-00030-0N, 2x MCP-120-00053-0N |
| Power Supply Number | 2x PWS-504P-1R |
| Mounting Rails | 1x MCP-290-00101-0N, 1x MCP-290-00105-0N, 1x MCP-290-00109-0N |
| Rear Window | 1x MCP-240-00098-0N |
| Miscellaneous |
| Included Accessories | 1x CSE-PT93L-B, 1x CSE-PT0135, 1x MCP-340-00035-0B, 1x MCP-250-81502-0N |
| Compatible Motherboards | X9SRW-F, X11SSW-F |
| Compatible Servers | 5017R-WRF, 5018R-WR, 5019S-WR |
