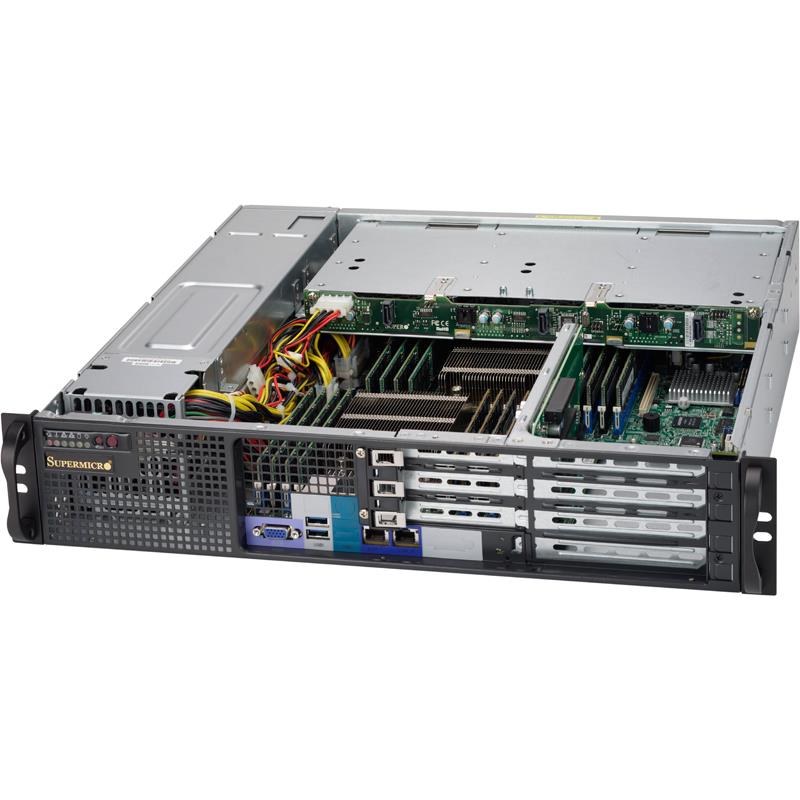

Supermicro CSE-823MTQC-R802WB 2U Rackmount 2x 800W Power Supply
3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
Ideal for e-business, server clustering applications
Offers a 17.7" short-depth 2U W/ advanced airflow thermal control
Equipped with 800W Redundant Power Supply, W/PMbus, Titanium
2U Rackmount 800W Redundant Power Supply for SMC ProprietaryWIO motherboard up to 12.8in x 13.4in, support single and dual Intel / AMD processors, up to 3x SAS/SATA 3.5in drive bay, 1x Full-Height slot - SC823MTQC-R802WB
- 2U chassis - supports for maximum motherboard sizes: SMC Proprietary WIO, 12.8" x 13.4" motherboards
- 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
- 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
- 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
- 4 full height expansion slot(s) (Riser Card Required), 3 low-profile expansion slot(s) (Riser Card Required)
- 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
- Optional 2 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
Extra Specifications for Supermicro CSE-823MTQC-R802WB 2U Rackmount 2x 800W Power Supply
| Main Specifications | ||
| Device Type | SuperChassis | |
| Form Factor | 2U chassis | |
| Supported Motherboards | SMC Proprietary WIO, 12.8" x 13.4" motherboards | |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 17.7" (450 mm) | |
| Weight | 42 lbs (19.05 kg) | |
| Enclosure Color | Black | |
| Processor Support | ||
| Processor Support | Dual and Single Intel and AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 4 full height expansion slot(s) (Riser Card Required) | |
| 3 low-profile expansion slot(s) (Riser Card Required) | ||
| Drive Bays | ||
| Hot-swap | 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO | |
| SAS/SATA Backplane | ||
| SAS/SATA Backplane | 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Power Fail LED, System Information LED | |
| System Cooling | ||
| Fans | 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control | |
| Optional 2 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control | ||
| Environmental | ||
| Operating Environment | Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) | |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) | ||
| Operating Temperature Range: 5°C ~ 35°C (41°F ~ 95°F) | ||
| Operating Relative Humidity Range: 8% ~ 90% (non-condensing) | ||
| Power Supply | ||
| Power Supply | 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium | |
| Certification | 80PLUS Titanium Certified | |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, TUV/CB, UL/CUL | |
| Parts List - (Items Included) | ||
| Air Shroud | 1x MCP-310-29019-0N | |
| Backplane | 1x BPN-SAS3-825MTQ-P | |
| Cable(s) | 1x CBL-0071L, 2x CBL-0160L | |
| Fan(s) | 4x FAN-0157L4 | |
| Front Panel | 1x FPB-FP836-D | |
| Drive Tray | 3x MCP-220-00075-0B, 1x MCP-220-82301-0N | |
| Power Distributor(s) | 1x PDB-PT823M-8824 | |
| Power Supply Number | 2x PWS-802A-1R | |
| Mounting Rails | 1x MCP-290-00053-0N | |
| Rear Window | 1x MCP-240-82304-0N | |
| Miscellaneous | ||
| Compatible Motherboards | X11DDW-L, X11DDW-NT | |
