| Main Specifications |

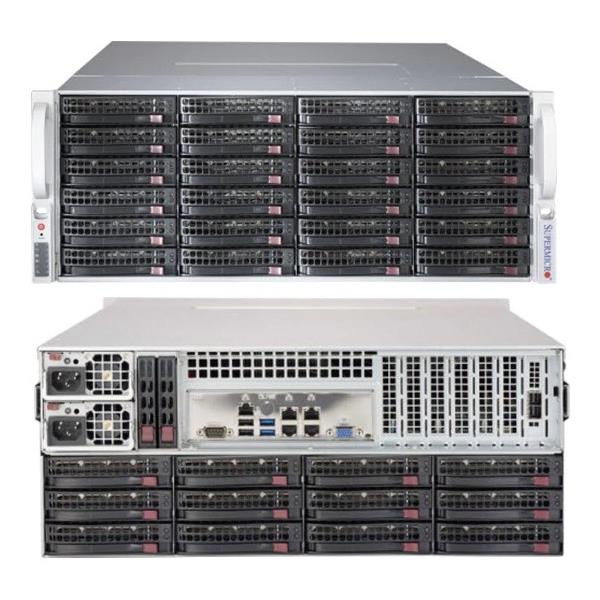

| Device Type | SuperChassis 847BE2C-R1K23LPB |
| Form Factor | 4U chassis |
| Supported Motherboards | Motherboard support size: (12" x 10") (13.68" x 13") (9.6" x 9.6") |
| Dimensions (WxDxH) | Height 7" (178 mm) x Width 17.2" (437 mm) x Depth 27.5" (699 mm) |
| Weight | 91 lbs (41.28 kg) |
| Enclosure Color | Black |
| Processor Support |
| Processor Support | Dual and Single Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7 low-profile expansion slot(s) |
| Drive Bays |
| Hot-swap | 36 x 3.5" hot-swap SAS/SATA drive bay with SES3, Optional 2 x 2.5" hot-swap drive bay |
| Peripheral Drives | Optional 2 x 3.5" internal fixed drive bay |
| Optional 4 x 2.5" internal fixed drive bay |
| Backplane |
| SAS/SATA HDD Backplane | 12-port 2U SAS3 12Gbps dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) |
| 24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED, Unit Identification (UID) LED |
| System Cooling |
| Fans | 7 x 80mm high-performance fan(s) |
| System Monitoring |
| System Monitoring | Chassis intrusion switch |
| Environmental Parameters |
| Operating Temperature | Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Power Supply |
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm |
| Certification | 80PLUS Titanium Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL |
| Parts List - (Items Included) |
| Backplane | 1x BPN-SAS3-826EL2, 1x BPN-SAS3-846EL2 |
| Power Distributor(s) | 1x PDB-PT847-8824 |
| Power Supply Number | 2x PWS-1K23A-1R |
