| Main Specifications |

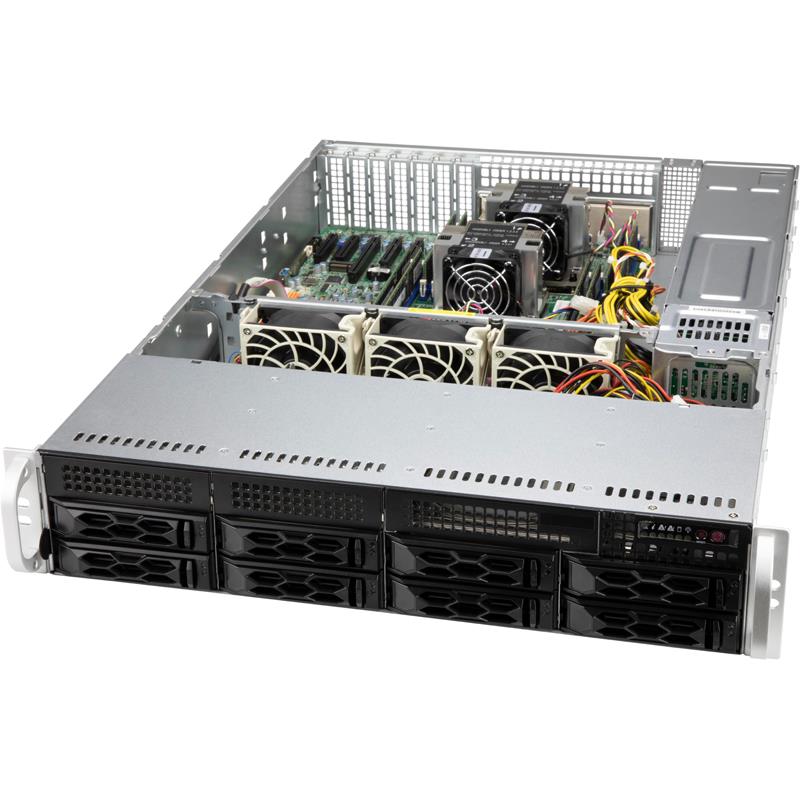

| Device Type | SuperChassis |
| Form Factor | 2U chassis |
| Supported Motherboards | ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) |
| Weight | 33 lb (14.97 kg) |
| Enclosure Color | Black |
| Processor |
| Compatible Processors | Dual and Single Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7 low-profile expansion slot(s) |
| Expansion Bays Total (Free) | 8 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay |
| Optional 2 x 3.5" fixed drive bay, Optional 2 x 2.5" hot-swap SAS3/SATA drive bay |
| Peripheral Bay (Free) | Optional 1 x slim DVD-ROM drive bay |
| Optional 2 x USB 2.0 ports |
| Optional 1 x COM port tray |
| Optional 2 x USB 3.0 ports |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Power Fail LED, System Information LED |
| System Cooling |
| Fans | 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control |
| System Monitoring |
| System Monitoring | Optional Chassis intrusion switch |
| Power Supply |
| Power Supply | 600W / 650W 1U Redundant Power Supply |
| Certification | 80PLUS Platinum Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Parts List - (Items Included) |
| Backplane | 1x BPN-SAS3-825TQ |
| Cable | 1x CBL-0071L |
| Parts | 1x MCP-290-82518-0B |
| Fan(s) | 3x FAN-0181L4 |
| Front Panel | 1x FPB-FP836-D |
| Drive Trays | 8x MCP-220-00184-0B |
| Power Distributor(s) | 1x PDB-PT826-L8824 |
| Power Supply Number | 2x PWS-609P-1R2 |
| Rear Window | 1x MCP-240-82608-0N |
| Miscellaneous |
| Compatible Motherboards | X11DPi-N, X11DPi-NT, X11SRL-F, X11DPL-i, X11SPL-F |
