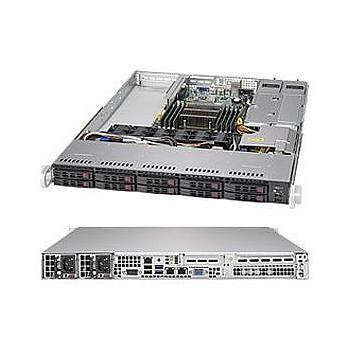

- Supermicro SYS-1018R-WC0R 1U Barebone Single Intel Xeon E5-2600 v4/v3, E5-1600 v4/v3 Processors
Supermicro SYS-1018R-WC0R 1U Barebone Single Intel Xeon E5-2600 v4/v3, E5-1600 v4/v3 Processors
Barebone 1U Rackmount SuperServer, Support Single Socket R3 (LGA 2011), Supporting Intel Xeon E5-2600 v4/v3, E5-1600 v4/v3 family Processors Up to 22-Core/Up to 55MB Cache. Up to 1TB DDR4 ECC 3DS LRDIMM in 8x 288-pin DIMM slots - On-Board: Intel C612 chipset, SATA3 6Gbps via C612 controller (RAID 0, 1, 10 support / RAID 5 supported under Windows), IPMI 2.0, 2x Intel i350-AM2 Gigabit Ethernet, VGA - Includes: 8x 2.5in SAS3/SATA3 Hot-Swap Drive Bays + 2x 2.5in SATA3 Hot-Swap Drive Bays, Left Riser: 2x PCI-E 3.0 x16 slots, 1x PCI-E 3.0 x8 LP slot, 1x Heatsink (SNK-P0047PS), 750W Redundant Platinum Level Certified Power Supply (2x PWS-706P-1R), MBD-X10SRW-F Motherboard, SC116AC-R706WB 1U Chassis (Black)
1. Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 and E5-1600 v4 † /v3 family
2. Up to 1TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 8x DIMM slots
3. 2x PCI-E 3.0 x16 FH slots and 1x PCI-E 3.0 x8 (in x16) HH slot
4. Intel® i350-AM2 Dual port GbE LAN
5. Integrated IPMI 2.0 and KVM with Dedicated LAN
6. 8x 2.5" Hot-swap SAS3/SATA3 + 2x 2.5" Hot-swap SATA3 HDD bays Default support 8+2 SATA3 HDD
7. 750W Redundant Power Supplies Platinum Level Certified
Extra Specifications for Supermicro SYS-1018R-WC0R 1U Barebone Single Intel Xeon E5-2600 v4/v3, E5-1600 v4/v3 Processors
| Product SKUs | ||
| Product SKUs | SuperServer 1018R-WC0R (Black) | |
| Motherboard | ||
| Motherboard | Super X10SRW-F | |
| Processor | ||
| CPU | Intel® Xeon® processor E5-2600 v4 † / v3, E5-1600 v4 † / v3 family (up to 145W TDP **) | |
| Single Socket R3 (LGA 2011) | ||
| Core / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| Note | † BIOS version 2.0 or above is required | |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support | ||
| System Memory | ||
| Memory Capacity | 8x 288-pin DDR4 DIMM slots | |
| Up to 1TB ECC 3DS LRDIMM | ||
| Up to 512GB ECC LRDIMM | ||
| Up to 256GB ECC RDIMM | ||
| Memory Type | 2400 † / 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | RAID 0, 1, 5, 10 support | |
| SATA3 (6Gbps) via C612 controller | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC with 10/100/1000Mbps | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Intel® i350-AM2 Dual Port Gigabit Ethernet | ||
| VGA | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 10x SATA3 (6Gbps) ports | |
| SATA DOM Power Connector | ||
| LAN | 1x RJ45 Dedicated IPMI LAN port | |
| 2x RJ45 Gigabit Ethernet LAN ports | ||
| USB | 2x USB 3.0 ports (rear) | |
| 2x USB 2.0 ports (rear) | ||
| 2x USB 3.0 ports (front) | ||
| VGA | 1x VGA port | |
| Serial Port / Header | 2x COM ports (1 rear, 1 header) | |
| DOM | 2x Super DOM (Disk on Module) ports | |
| PC Health Monitoring | ||
| Voltage | Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. | |
| 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V | ||
| FAN | Status monitor for speed control | |
| Status monitor for on/off control | ||
| Low noise fan speed control | ||
| Pulse Width Modulated (PWM) fan connectors | ||
| Support 3-pin fans (w/o speed control) | ||
| 6x 4-pin fan headers | ||
| 6x fans w/ tachometer status monitoring | ||
| Temperature | CPU thermal trip support | |
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| Monitoring for CPU & chassis environment | ||
| FC temperature sensing logic | ||
| LED | System Information LED | |
| +5V Standby alert LED | ||
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-116AC-R706WB | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 23.5" (597mm) | |
| Package | 8" (H) x 24" (W) x 32" (D) | |
| Weight | Gross Weight: 40 lbs (18.1 kg) | |
| Net Weight: 25 lbs (11.3 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Hard drive activity LED | ||
| 2x Network activity LEDs | ||
| Expansion Slots | ||
| PCI-Express | 2x PCI-E 3.0 x16 Full-height Full-length slots | |
| 1x PCI-E 3.0 x8 (in x16) Half-height Half-length slot | ||
| Drive Bays | ||
| Hot-swap | 8x 2.5" Hot-swap SAS3/SATA3 HDD bays + 2x 2.5" Hot-swap SATA3 (total of 10) | |
| Backplane | ||
| Backplane | SAS3/SATA3 HDD Backplane (SAS support requires optional SAS controller + cables) | |
| System Cooling | ||
| Fans | 4x 40x56mm 4-pin PWM Cooling Fans | |
| 1x Additional fan to cool add-on cards | ||
| AC/DC240V Input Redundant Power Supply | ||
| AC/DC240V Input Redundant Power Supply | 700W/750W Redundant Power Supplies with PMBus | |
| Total Output Power | 700W/750W | |
| Dimension (W x H x L) | 54.5 x 40.25 x 320 mm | |
| Input | 100 - 140Vac / 8 - 6A / 50-60Hz | |
| 200 - 240Vac / 4.5 - 3.8A / 50-60Hz | ||
| 200 - 240Vdc / 4.5 - 3.8A (CCC Only) | ||
| +12V | Max: 58A / Min: 0.5A (100 - 140Vac) | |
| Max: 62A / Min: 0.5A (200 - 240Vac) | ||
| Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only) | ||
| +5V sb | Max: 3A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| Certification | Platinum Certified | |
| System BIOS | ||
| BIOS Type | 64Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| RTC (Real Time Clock) Wakeup | ||
| Hardware BIOS Virus protection | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| IPMI (Intelligent Platform Management Interface) v2.0 with KVM support | ||
| SuperDoctor® III | ||
| Power Configurations | ACPI / ACPM Power Management | |
| Main Switch Override Mechanism | ||
| Power-on mode for AC power recovery | ||
| Internal/External modem ring-on | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10SRW-F | 1 | Super X10SRW-F Motherboard | |
| Motherboard / Chassis | CSE-116AC-R706WB | 1 | 1U Chassis | |
| Backplane | BPN-SAS3-116A | 1 | 10-port 1U SAS3 12Gbps direct-attached backplane, support up to 10x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-0207L | 2 | SATA,INT,ROUND,ST-ST,59CM,26AWG | |
| Cable 2 | CBL-0157L | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG | |
| Cable 3 | CBL-SAST-0591 | 2 | MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,75CM,75CM SB,30AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1608-QRG | 1 | SYS-1018R-WC0R, QRG,HF,RoHS/REACH | |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots | |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot | |
| Heatsink / Retention | SNK-P0047PS | 1 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-706P-1R | 2 | 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF | |
| Fan | FAN-0101L4 | 5 | 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808 |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cooling Fan | FAN-0101L4 | $ 31.00 | 0 | 40x40x56mm 14.4K-10.7K RPM Counter-rotating Fan | ||
| Storage Controller card & cable | AOC-S3108L-H8iR& 2x CBL-SAST-0593 | 0 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Controller card & cable | AOC-S3108L-H8iR-16DD& 2x CBL-SAST-0593 | 0 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Controller card & cable | AOC-S3008L-L8i& 2x CBL-SAST-0593 | 0 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,63HDD, RAID 0, 1, 10 | |||
| Storage Controller card & cable | AOC-S3008L-L8e& 2x CBL-SAST-0593 | 0 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,122HDD HBA | |||
| CacheVault | BTR-CV3108-1U1 | $ 324.50 | 0 | CacheVault for Broadcom 3108 with SuperCap mounting in 1Y 40x56 fan tray | ||
| CacheVault | BTR-TFM8G-LSICVM02 &BKT-BBU-BRACKET-05 | 0 | CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location | |||
| Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 | |||
| Network Card(s) | AOC-STGN-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | |||
| Network Card(s) | AOC-STGF-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 | |||
| Network Card(s) | AOC-STG-B4S | $ 408.00 | 0 | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | ||
| Network Card(s) | AOC-STGS-i2T | 0 | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 | |||
| Network Card(s) | AOC-S25G-b2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 | |||
| Network Card(s) | AOC-S25G-m2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX | |||
| Front Bezels | MCP-210-11601-0B | $ 31.00 | 1 | Black front bezels | ||
| TPM security module | AOM-TPM-9665V | $ 43.00 | 1 | TPM 2.0, vertical form factor | ||
| TPM security module | AOM-TPM-9655V | $ 43.00 | 1 | TPM 1.2, vertical form factor | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
