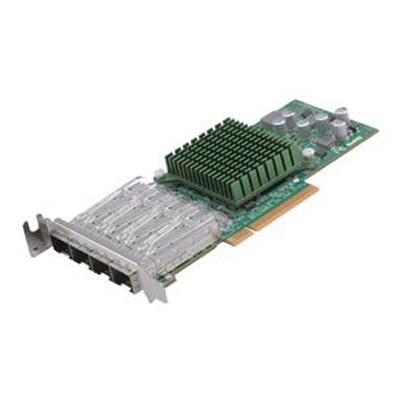

Supermicro AOC-STG-B4S 4-Port 10GbE SFP+ Ethernet Card
4-Port 10GbE SFP+ Ethernet Card Standard Low Profile, based on Broadcom BCM57840S (OEM, Bundled with Supermicro System ONLY)
• Low-Profile Standard Form Factor
• PCI Express 3.0 (8GT/s)
• 4 SFP+ Ports
• TCP Offload Engine (TOE)
• VMDq and PC-SIG SR-IOV for Virtualized Environments
• Jumbo Frame Support
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Low Power Consumption (About 14W)
• iSCSI Remote Boot Support
• PXE Boot Support
• RoHS compliant 6/6
Extra Specifications for Supermicro AOC-STG-B4S 4-Port 10GbE SFP+ Ethernet Card
| Compliance | ||
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/manuals/other/AOC-STG-b4S.pdf ] (944 KB) | |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-STG-b4S.pdf ] | |
| Driver | Choose the latest CDR-NIC folder, and then click on Broadcom folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Driver CD | Choose the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Compatibility Matrices | ||
| Compatible Servers | Standard Networking AOC Compatibility :https://www.supermicro.com/support/resources/AOC/standard_AOC_Compatibility.cfm | |
| Cables & Transceivers | Networking Cables & Transceivers :https://www.supermicro.com/support/resources/AOC/Networking_Cables_Transceivers_Compatibility.cfm | |
| Supported Platforms | ||
| Supported Platforms | • Supermicro motherboards with minimum PCI-E x8 slot with enough clearance • Supermicro server systems with low-profile or full-height PCI-E x8 expansion slot with enough clearance | |
| Specification | ||
| Specification | • General - Broadcom BCM57840S controller - Compact size low-profile standard form factor - PCI-E 3.0 x8 (8GT/s) interface - Quad SFP+ connectors • Ethernet Features - Energy Efficient Ethernet IEEE 802.3az supported - Traffic Steering for MAC address and VLAN Tag - Up to 32 queues/port supported for RSS (Receive Side Scaling) - Congestion Notification 802.1au - Large Send Offload (LSO) and Large Receive Offload (LRO) - Link Aggregation 802.3ad • Network Features - Jumbo Frames up to 9000B - Clause 73 Auto-negotiation - IEEE 801.2q VLAN - External PHY support - TCP Offload Engine (TOE) reduces host CPU utilization while preserving the rich and flexible nature of soft OS stack implementation - iSCSI Acceleration - IPv6 Acceleration - Support port aggregation, failover, load balancing • Remote Boot Options - Preboot eXecution Environment (PXE) support - iSCSI remote boot • Virtualization Features - Up to 128 per port for VMDq - SR-IOV with up to 64 Virtual Functions (VFs) for Guest Operating Systems (GOS) per port - Supports NetQueue and VMQueue - Supports Data Center Bridging which provides lossless data delivery, lower latency, and standards-based bandwidth sharing of data center physical links - Supports up to 68 Rx/Tx Descriptor Queues for Virtualization per port - Supports up to 136 MAC Addresses per port - Supports IEEE 802.1Qau Congestion Notification • OS Support - Windows® 2008 Server R2 (with HyperV), Server 2012 (with HyperV) - RedHat EL 5, 6, and 7 - SuSE SLES 10, 11, and 12 - VMware ESX 5.0 (vSphere 5.0), 5.1 (vSphere 5.1), and 6.0 (vSphere 6.0) - Solaris 11 • Cables Support - SFP+ direct attached twin axial cables, up to 5 meters - LC-LC fiber-optic cables (with required optional transceivers) • Operating Conditions - Operating temperature: 0°C to 55°C (32°F to 131°F) - Storage temperature: -40°C to 70°C (-40°F to 158°F) • Physical Dimensions - Card PCB dimensions: 13.72cm (5.4") x 6.90cm (2.73") (L x H) - Height of end brackets: standard 12cm (4.725"), low-profile 7.94cm (3.13") | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
