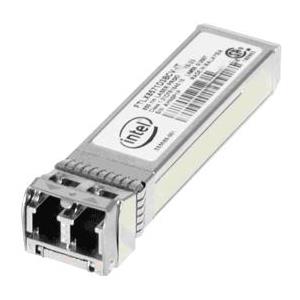

Supermicro AOC-E10GSFPSR SFP+ transceiver module for short range

• Long distance fiber applications
• Long Distance Fiber Applications
• Multi Mode Fiber; Duplex LC connector
• Available in 10GBASE-SR 1000BASE-SX

SFP+ transceiver module for short range fiber cables (up to 300m)


    130.50130.50130.5USD

    130.50

    Option not available

    This combination does not exist.

    Add to Cart


    The Supermicro AOC-E10GSFPSR enables SFP+ 10Gb/1Gb dual-rate highspeed Ethernet long-distance fiber connections for servers, adapter cards, and switches. This transceiver is compliant with IEEE and SFF standards and is verified with Supermicro servers, AOC cards, and switches. The AOC-E10GSFPSR supports 10G/1G Ethernet 10GBASE-SR 1000BASE-SX. Each Supermicro transceiver is validated to ensure quality and performance.


    • Duplex LC connector

    • Hot-pluggable SFP+ footprint

    • Built-in digital diagnostic functions

    • Receiver limiting electrical interface

    • Max. link length 300m on 2000MHz-km MMF

    • Supports rate selectable 1.25Gb/s or 9.95 to 10.3Gb/s bit rates

    Extra Specifications for Supermicro AOC-E10GSFPSR SFP+ transceiver module for short range

    Main Specifications
    Device type SFP+ transceiver module
    Form Factor Plug-in module
    Networking
    Cabling Type 10GBase-SR
    Connectivity Technology Wired
    Data Link Protocol 10 Gigabit Ethernet
    Data Transfer Rate 10 Gbps
    Max Transfer Distance Supported Distance at 10G: 300m with 50µm Fiber: OM3 2000 MHz-km
      Supported Distance at 10G: 82m with 50µm Fiber: OM2 500 MHz-km
      Supported Distance at 10G: 66m with 50µm Fiber: 400 MHz-km
      Supported Distance at 10G: 33m with 62.5µm Fiber: OM1 200 MHz-km
      Supported Distance at 10G: 26m with 62.5µm Fiber: 160 MHz-km
      Supported Distance at 1G: >550m with 50µm Fiber: OM3 2000 MHz-km
      Supported Distance at 1G: 550m with 50µm Fiber: OM2 500 MHz-km
      Supported Distance at 1G: 500m with 50µm Fiber: 400 MHz-km
      Supported Distance at 1G: 275m with 62.5µm Fiber: OM1 200 MHz-km
      Supported Distance at 1G: 220m with 62.5µm Fiber: 160 MHz-km
    Optical Wave Length 850 nm
    Expansion / Connectivity
    Interfaces Network Standards Physical Layer Interface: 1000BASE-SX 1G Ethernet
      Network Standards Physical Layer Interface: 10GBASE-SR 10G Ethernet
    Power
    Power Device Power dissipation < 1W
    Environmental Parameters
    Operating Temperature 0°C to 70°C case temperature
    Miscellaneous
    Compatible Motherboards and Servers Motherboards: X8DTU-6TF+
      Servers: 1026T-6RFT+, 6016T-6RFT+, 2026T-6RFT+, 6026T-6RFT+
      Cable: Fiber Optic SR (850nm) cable, LC to LC Multimode (Not Included)
      Add-on Cards: AOC-STG-i4S, AOC-STGN-i1S, AOC-STGN-i2S, AOC-STG-b4S, AOC-CTG-i1S, AOC-CTG-i2S, AOC-PTG-i1S, AOC-MTG-i4S, AOC-MTGN-i2S
    Compliance RoHS 6/6 compliant (lead free)
    Features Supports rate selectable 1.25Gb/s or 9.95 to 10.3Gb/s bit rates
