- Supermicro CSE-732D4F-500B Mid-Tower Chassis 500W Power Supply

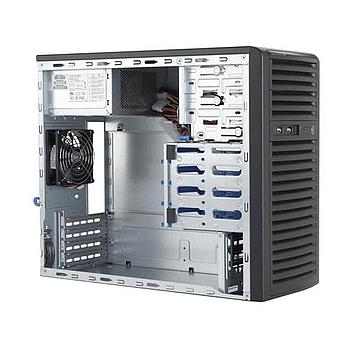

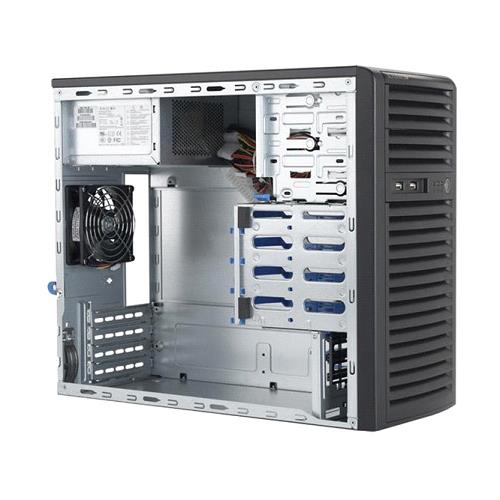

Supermicro CSE-732D4F-500B Mid-Tower Chassis 500W Power Supply
Mid-Tower Chassis w/ 500W Whisper-Quiet 80 Plus Power Supply w/ PFC, for motherboard up to 12in x 13in E-ATX - 4x Internal SAS / Sata Fixed Bays, 2x 5.25in Peripheral Drive Bays, 1x 3.5in Peripheral Drive Bay, 7x Full-Height / Full-Length I/O Expansion Slots, Rails Kit (Black)
1. 90° Rotatable HDD Cage
2. Whisper-Quiet (<21dB)
3. Kensington Lock Support
4. Front I/O Ports: 2x Audio (HD/AC97) & 2x USB 3.0 & 2x USB 2.0 & 2x 1394 Firewire Ports
5. 1x Optional Front 12cm (1850 RPM) PWM Fan
6. Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes E-ATX/ATX/Micro ATX
7. 500W Bronze Level Certified High-Efficiency Power Supply
8. 1x Rear 12cm (1850 RPM) PWM Fan
9. 2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays
Extra Specifications for Supermicro CSE-732D4F-500B Mid-Tower Chassis 500W Power Supply
| Processor Support | ||
| Processor Support | Dual, single Intel® / AMD processors | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power Status LED | |
| 1 Network Activity LEDs | ||
| HDD activity LED | ||
| System Overheat LED | ||
| Ports | 2x USB 2.0 Port(s) | |
| 2x USB 3.0 Port(s) | ||
| 2x HD/AC97 Audio port(s) | ||
| 2x 1394 Port(s) | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Bronze Certified | |
| Power Supply | PS2/ATX 500W Multi-output power supply with 12CM fan, Bronze level | |
| Power Efficiency | 88% | |
| Total Output Power and Input | 500W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 140 x 150 x 86 mm | |
| Output Type | 24pin ATX | |
| -12V | Max: 0.5A / Min: 0A | |
| +12V | Max: 17A / Min: 1A (100Vac - 240Vac) | |
| Max: 17A (100Vac - 240Vac) | ||
| Max: 18A (100Vac - 240Vac) | ||
| +5V | Max: 20A / Min: 0.5A | |
| +3.3V | Max: 15A / Min: 0.5A | |
| +5Vsb | Max: 3A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CE/EMC | |
| TUV/CB | ||
| UL/CUL | ||
| FCC class B | ||
| Product SKUs | ||
| Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply | |
| Form Factor | ||
| Form Factor | Mid-tower chassis support for max. motherboard size - 12" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX | |
| Dimensions | ||
| Height | 16.7" (424 mm) | |
| Width | 7.6" (193 mm) | |
| Depth | 20.68" (525 mm) | |
| Net Weight | 28 lbs (12.7 kg) | |
| Gross Weight | 30 lbs (13.61 kg) | |
| Packaging (W x H x L) | 21.38" (543 mm) x 11.97" (304 mm) x 25.28" (642 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7 full-height & full-length expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 4 x 3.5" fixed drive bay | |
| Optional 4 x 2.5" fixed drive bay | ||
| Peripheral Drives | ||
| Peripheral Drives | 1 x 3.5" internal fixed drive bay | |
| 2 x standard 5.25" drive bay | ||
| Systems Cooling | ||
| Fans | 1 x 12cm rear exhaust fan(s) | |
| Optional 1 x 12cm (front) cooling fan | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Adapter Cable | CBL-0454L | $ 20.00 | 0 | USB3.0 to 2.0 adapter cable - 30cm(19pin male to 9pin female) | ||
| LCD | MCP-220-00095-0B | $ 90.00 | 0 | 5.25" USB LCD Kit | ||
| 2.5" HDD Bracket | MCP-220-73201-0N | $ 70.00 | 0 | HDD Cage (4x Internal 2.5" fixed HDD bays) | ||
| Card Reader | MCP-450-73101-0B | $ 39.00 | 0 | All-In-One card reader (for SC732D only) | ||
| Fan Kit | FAN-0124L4 | $ 36.00 | 0 | 12 CM x12 CM fan | ||
| IO shield | MCP-260-00063-0N | $ 19.50 | 0 | Standard I/O Shield for X10SAE with EMI Gasket | ||
| Heatsink / Retention | - | 0 | Please refer to our Thermal Components Matrix |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
