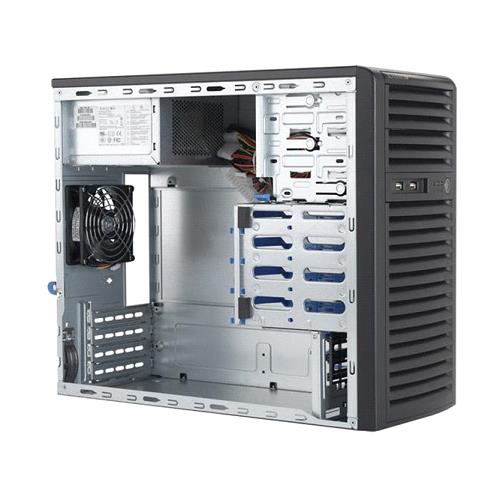

Supermicro CSE-732D4F-500B Mid-Tower Chassis 500W Power Supply

90° rotatable HDD cage with 2x 5.25" external and 4x 3.5" internal drive bays
Whisper-Quiet Operation: Ultra-low noise level of <21dB for silent performance
Efficient Cooling: 1x rear 12cm PWM fan and optional front 12cm (1850 RPM) PWM fan
Front I/O panel with 2x USB 3.0, 2x USB 2.0, 2x Audio (HD/AC97), and 2x 1394 Firewire ports

Mid-Tower Chassis w/ 500W Whisper-Quiet 80 Plus Power Supply w/ PFC, for motherboard up to 12in x 13in E-ATX - 4x Internal SAS / Sata Fixed Bays, 2x 5.25in Peripheral Drive Bays, 1x 3.5in Peripheral Drive Bay, 7x Full-Height / Full-Length I/O Expansion Slots, Rails Kit (Black)

1. 90&deg Rotatable HDD Cage
2. Whisper-Quiet (<21dB)
3. Kensington Lock Support
4. Front I/O Ports: 2x Audio (HD/AC97) & 2x USB 3.0 & 2x USB 2.0 & 2x 1394 Firewire Ports
5. 1x Optional Front 12cm (1850 RPM) PWM Fan
6. Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes E-ATX/ATX/Micro ATX
7. 500W Bronze Level Certified High-Efficiency Power Supply
8. 1x Rear 12cm (1850 RPM) PWM Fan
9. 2x 5.25&quot External HDD Drive Bays &amp 4x 3.5&quot Internal HDD Drive Bays

Extra Specifications for Supermicro CSE-732D4F-500B Mid-Tower Chassis 500W Power Supply

Processor Support
Processor Support	Dual, single Intel® / AMD processors
Front Panel
Buttons	Power On/Off button
LEDs	Power Status LED
	1 Network Activity LEDs
	HDD activity LED
	System Overheat LED
Ports	2x USB 2.0 Port(s)
	2x USB 3.0 Port(s)
	2x HD/AC97 Audio port(s)
	2x 1394 Port(s)
Operating Environment (System)
Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)
Power Supply
Certification	Bronze Certified
Power Supply	PS2/ATX 500W Multi-output power supply with 12CM fan, Bronze level
Power Efficiency	88%
Total Output Power and Input	500W with Input 100 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	140 x 150 x 86 mm
Output Type	24pin ATX
-12V	Max: 0.5A / Min: 0A
+12V	Max: 17A / Min: 1A (100Vac - 240Vac)
	Max: 17A (100Vac - 240Vac)
	Max: 18A (100Vac - 240Vac)
+5V	Max: 20A / Min: 0.5A
+3.3V	Max: 15A / Min: 0.5A
+5Vsb	Max: 3A / Min: 0A
+12Vsb	Max: NAA
Regulatory (Power Supply)
Power Supply Safety / EMC	CE/EMC
	TUV/CB
	UL/CUL
	FCC class B
Product SKUs
Product SKUs	- Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
Form Factor
Form Factor	Mid-tower chassis support for max. motherboard size - 12" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX
Dimensions
Height	16.7" (424 mm)
Width	7.6" (193 mm)
Depth	20.68" (525 mm)
Net Weight	28 lbs (12.7 kg)
Gross Weight	30 lbs (13.61 kg)
Packaging (W x H x L)	21.38" (543 mm) x 11.97" (304 mm) x 25.28" (642 mm)
Available Color	Black
Expansion Slots
Expansion Slots	7 full-height & full-length expansion slot(s)
Drive Bays
Drive Bays	4 x 3.5" fixed drive bay
	Optional 4 x 2.5" fixed drive bay
Peripheral Drives
Peripheral Drives	1 x 3.5" internal fixed drive bay
	2 x standard 5.25" drive bay
Systems Cooling
Fans	1 x 12cm rear exhaust fan(s)
	Optional 1 x 12cm (front) cooling fan

Name	Part Number	Price	Add to Cart	Qty.	Description
Adapter Cable	CBL-0454L			0	USB3.0 to 2.0 adapter cable - 30cm(19pin male to 9pin female)
	LCD	MCP-220-00095-0B	$ 90.00		0	5.25" USB LCD Kit
	2.5" HDD Bracket	MCP-220-73201-0N	$ 70.00		0	HDD Cage (4x Internal 2.5" fixed HDD bays)
	Card Reader	MCP-450-73101-0B	$ 39.00		0	All-In-One card reader (for SC732D only)
	Fan Kit	FAN-0124L4	$ 36.00		0	12 CM x12 CM fan
	IO shield	MCP-260-00063-0N	$ 19.50		0	Standard I/O Shield for X10SAE with EMI Gasket
Heatsink / Retention	-			0	Please refer to our Thermal Components Matrix

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
