- Intel CD8069504425301 Xeon Gold 6256 3.6GHz 12-Core Processor Gen 2 - Cascade Lake

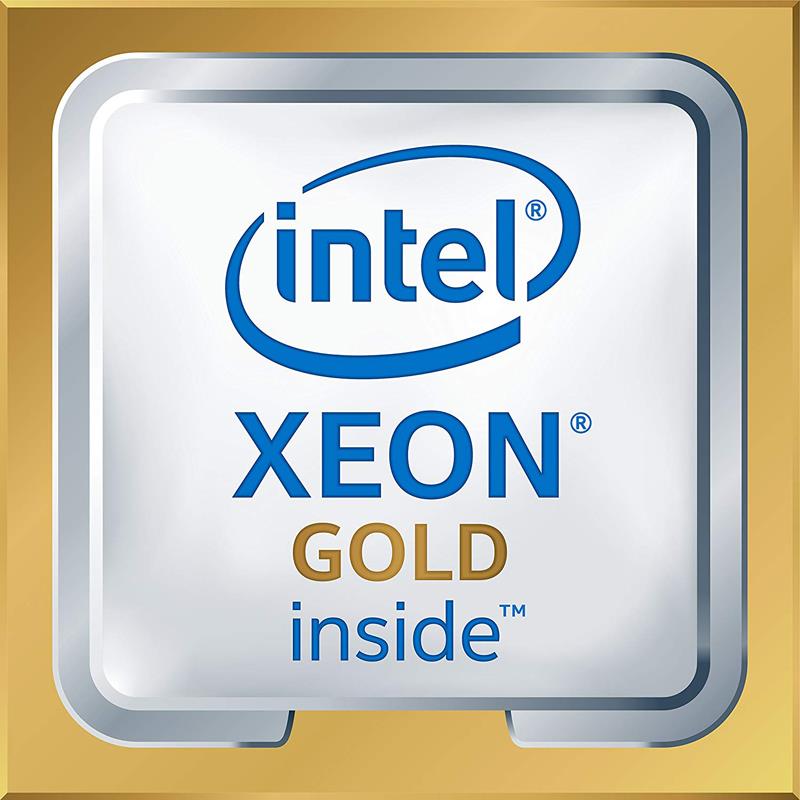

Intel CD8069504425301 Xeon Gold 6256 3.6GHz 12-Core Processor Gen 2 - Cascade Lake
With support for the higher memory speeds
Advanced reliability; hardware-enhanced security
Optimized for demanding mainstream data center
3.60GHz Frequency, 12 Core/24 Thread, 33MB Cache
Processor 3.6GHz Xeon Gold 6256 12-Core (24 Threads), FCLGA3647, 2933MHz, 33MB, 14nm, 205W, OEM
This product is no longer available.
It is optimized for demanding mainstream data center, multi-cloud compute, and network and storage workloads
With support for the higher memory speeds, enhanced memory capacity, and four-socket scalability, the Intel Xeon Gold 6200 processors deliver significant improvement in performance, advanced reliability, and hardware-enhanced security
Extra Specifications for Intel CD8069504425301 Xeon Gold 6256 3.6GHz 12-Core Processor Gen 2 - Cascade Lake
Main Specifications | ||
Device Type | Processor | |
Processor Number | 6256 | |
Clock Speed | 3.60 GHz | |
Max Turbo Speed | 4.50 GHz | |
Multi-Core Technology | 12-Cores | |
Number of Threads | 24-Threads | |
Manufacturing Process | 14 nm | |
QPI/UPI | Number of UPI Links: 3 | |
Product Collection | 2nd Generation Intel Xeon Scalable Processor | |
Code Name | Products formerly Cascade Lake | |
Vertical Segment | Server | |
Processor | ||
Cache | 33 MB | |
Thermal | ||
Design Power | 205 W | |
Memory Specifications | ||
Max Memory Size (dependent on memory type) | 1 TB | |
Memory Types | DDR4-2933 | |
Maximum Memory Speed | 2933 MHz | |
Max # of Memory Channels | 6 | |
ECC Memory Supported | Yes | |
Intel Optane DC Persistent Memory Supported | Yes | |
Expansion Options | ||
Scalability | S4S | |
PCI Express Revision | 3.0 | |
Max # of PCI Express Lanes | 48 | |
Package Specifications | ||
Sockets Supported | FCLGA3647 | |
Case Temperature | 64°C | |
Package Size | 76.0mm x 56.5mm | |
Miscellaneous | ||
Features | Enhanced SpeedStep technology, Hyper-Threading Technology, Execute Disable Bit capability, Intel Virtualization Technology, Intel 64 Technology, Intel Trusted Execution Technology, Intel Turbo Boost Technology 2.0, Intel AES New Instructions (AES-NI), Intel Virtualization Technology for Directed I/O (VT-d), Intel vPro Technology, Intel VT-x with Extended Page Tables (EPT), Intel TSX-NI, Intel Speed Shift Technology, Intel Optane Memory Supported, Intel Advanced Vector Extensions 512 (AVX-512), Mode-based Execute Control (MBE), Intel Volume Management Device (VMD), Intel Run Sure Technology, Intel Deep Learning Boost (DL Boost), Intel Resource Director Technology (RDT) | |
Package Type | OEM, Tray | |
Security Features | ||
Security Features | Intel AES New Instructions, Intel Trusted Execution Technology, Execute Disable Bit, Intel Run Sure Technology, Mode-based Execute Control (MBE) |
