| Main Specifications |

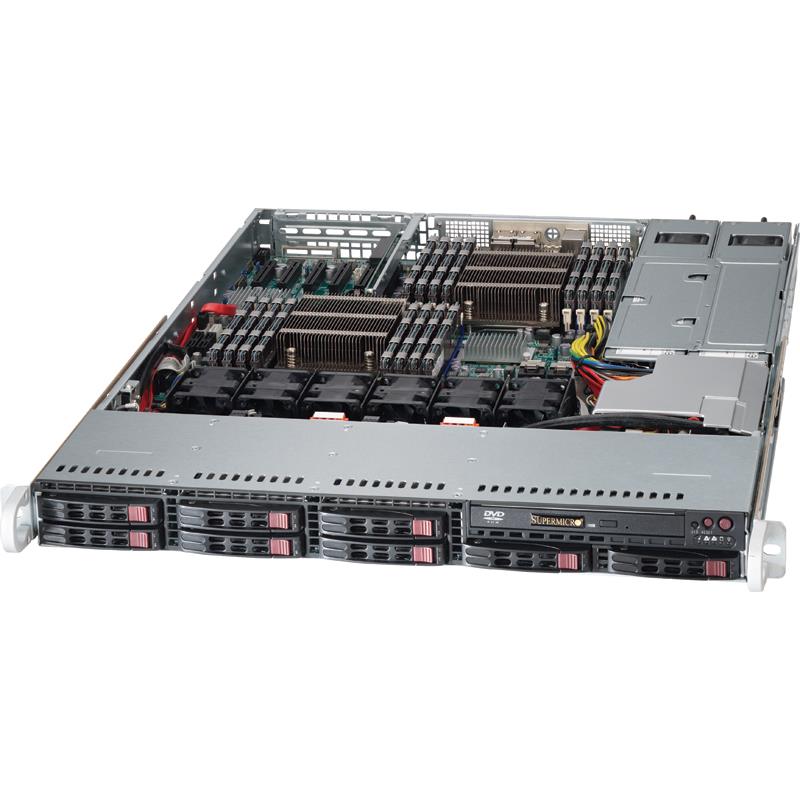

| Device Type | SuperChassis 113TQ-R500CB |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 23.5" (597 mm) |
| Color | Black |
| Form Factor | 23.5" Depth 1U Rackmount Chassis - support for MB sizes of 12" x 13" and 13.68" x 13" (single power only) |
| Weight | 25 lbs (11.34kg) |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1x Full-height & Full-length PCI expansion slot (Riser Card Required) |
| Peripheral Drives |
| CD-ROM / DVD-ROM | Slim DVD-ROM drive |
| Drive Bays |
| Hot-swap | 8x Hot-swap 2.5" SAS / SATA HDD tray - SAS or enterprise SATA HDD only recommended |
| Peripheral Drives | MCP-290-00036-0B |
| Front Panel |
| Buttons | Power On/Off button, System Reset button, UID button |
| LEDs | Power status LED, HDD activity LED, 2x Network activity LEDs, Universal Information (UID) LED |
| System Cooling |
| Fans | FAN-0086L4 |
| 3x 40x56mm Counter-rotating PWM fans (Opt. 2x fans for AOC cooling) |
| Operating Environment (System) |
| Operating Temperature Range | Non-Operating Humidity Range 5 - 95% non-condensing |
| Non-Operating Temperature Range -40 - 70C (-40 - 158F) |
| Humidity Range 8 - 90% non-condensing |
| Operating Temperature Range 10 - 35C (50 - 95F) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | 500W high-efficiency (94+%) power supply with PMBus |
| PWS-504P-1R |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 1x 1U SAS / SATA backplane with SES2 |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, CCC Certification, EN 60950/IEC 60950-Compliant, Europe/CE Mark, Germany - TUV Certified, Taiwan- BSMI mark |
| Standard Parts List |
| Accessory | MCP-290-00037-0N |
| Chassis | CSE-113TQ-R500CB |
| Fan Holder | CSE-PT0135, MCP-340-00035-0B |
| Front Panel | FP112 |
| Power Distributor | PDB-PT112-2424 |
| Rear Window | MCP-240-00086-0N |
| Parts List - (Items Included) |
| Backplane | BPN-SAS-113TQ |
| Drive Trays | MCP-220-00047-0B |
| Mounting Rails | MCP-290-00101-0N, MCP-290-00107-0N, MCP-290-00111-0N |
| Parts List |
| Cables | CBL-0157L, CBL-0206L, CBL-0227L, CBL-0335L |
