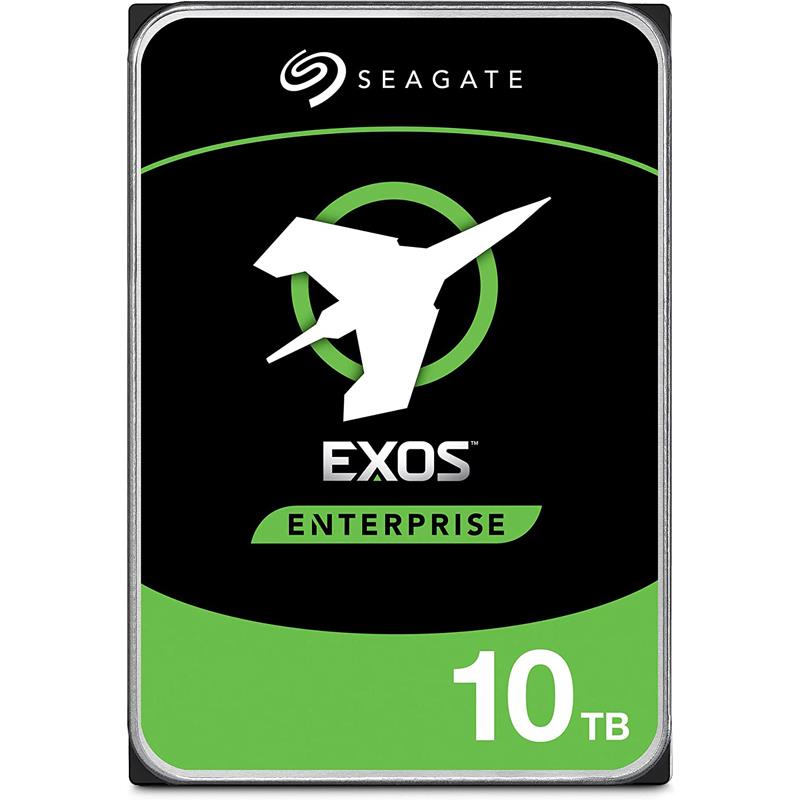

Seagate ST10000NM004G Hard Drive 10TB SAS3 12Gbps 7200RPM 3.5in SED 512e/4Kn - Exos X16 Series

Hard Drive 10TB SAS3 12Gbps 7200RPM 3.5in SED, 256MB Buffer, 512e/4kN, Internal - Evans Series - OEM

Helium sealed-drive design delivers lower total cost of ownership through lower power and weight.
Next-generation helium side-sealing weld technology for added handling robustness and leak protection.
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance.
Data protection and security: Seagate Secure features for safe, affordable, fast, and easy drive retirement.

Main Specifications
Device Type	Hard drive - internal - Format (512e/4Kn)
Capacity	10 TB
Form Factor	3.5-inch
Interface	SAS 12Gb/s
Dimensions (WxDxH)	Height 1.028 x Depth 5.787 x Width 4.010 in
Weight	1.477 lb
Hard Drive
Spindle Speed	7200RPM
Buffer Size	256 MB
Performance
Average Latency	4.16
Interface Access Speed (Gb/s)	12.0, 6.0, 3.0
Internal Data Rate	261 MBps
Max Sustainable Transfer Rate	245, 233
Rotational Vibration	12.5
Expansion / Connectivity
Interface Ports	Dual
Expansion / Connectivity	2 x SAS 12 Gb/s
Reliability
Non-Recoverable Errors	1 sector per 10E15
Power-On Hours	8760
Reliability Rating @ Full 247 Operation	0.35%
Environmental
Operating Environment	Temperature, Operating (°C): 5°C – 60°C
	Vibration, Nonoperating: 2 to 500Hz (Grms): 2.27
	Shock, Operating 2ms (Read/Write) (Gs): 50
	Shock, Nonoperating 2ms (Gs): 200
Power
Idle (W)	5.0W
Requirement	+12 V and +5 V
Miscellaneous
MTBF	2,500,000hr
Applications	Hyperscale applications/cloud data centers, Massive scale-out data centers, Big data applications, High-capacity density RAID storage, Mainstream enterprise external storage arrays, Distributed file systems, including Hadoop and Ceph, Enterprise backup and restore—D2D, virtual tape, Centralized surveillance
Features	Helium Sealed-Drive Design, Protection Information (T10 DIF), SuperParity, Low Halogen, PowerChoice Idle Power Technology, PowerBalance Power/Performance Technology, Hot-Plug Support, 256 Cache Multisegmented (MB), Organic Solderability Preservative, RSA 2048 Firmware Verification (SD&D)

Warranty:	5 years, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
