- Netgear ProSafe XSM4348CS-100NES 48G Managed Switch 48 x 10GbE

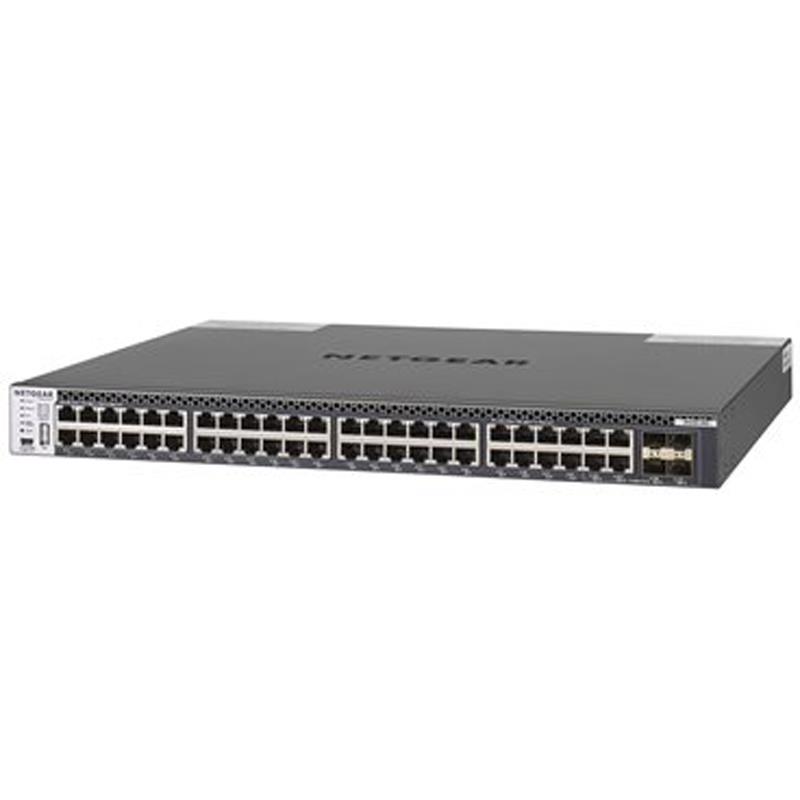

Netgear ProSafe XSM4348CS-100NES 48G Managed Switch 48 x 10GbE
Dual redundant, modular power supplies
48 x 10 Gigabit Ethernet + 4 x shared 10 Gigabit SFP+
Advanced Layer 2, Layer 3, Layer 4 feature set, no license required
Software-defined Network and OpenFlow 1.3 enabled for your network
Netgear ProSafe M4300 48G Managed Switch 48 x 10GbE, 48 Ports, Manageable, 4 Layer Supported, Modular, Twisted Pair, Optical Fiber - 1U High MANAGED SWITCH
Cost-effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
Innovative mixed "Spine and Leaf", 1G and 10G stacking with nonstop forwarding and hitless failover redundancy
Up to 384 (Gigabit) ports, or 384 (10 Gigabit) ports, or a combination of both in a single logical switch
PoE+ (30 watts per port) with hot swap, redundant power supplies and full provisioning
48-port 10G models ultra-low latency and scalable table size with 128K MAC, 8K ARP/NDP, 4K VLANs, 12K routes
Mixed Stack of 1G and 10G models provides 16K MAC, 2K ARP/NDP, 4K VLANs and 512 routes
SDN-Ready OpenFlow 1.3 support for maximum investment protection
Extra Specifications for Netgear ProSafe XSM4348CS-100NES 48G Managed Switch 48 x 10GbE
| Main Specifications | ||
| Device Type | Switch - 48 ports - L3 - managed - stackable | |
| Enclosure Type | Front to back airflow rack-mountable 1U | |
| Subtype | 10 Gigabit Ethernet | |
| Dimensions (WxDxH) | Width 17.3 x Depth 13.6 x Height 1.7 in | |
| Weight | 14.44 lbs | |
| Processor | ||
| Host Processor | 1: 800 MHz | |
| Memory | ||
| RAM | 1GB | |
| Flash Memory | 256 MB | |
| Networking | ||
| Ports | 48 x 10 Gigabit Ethernet + 4 x shared 10 Gigabit SFP+ | |
| Performance | Switching capacity: 960 Gbps , Throughput: 714 Mpps , 10 Gbps fiber latency (64-byte packets): 1.508 µs , 10 Gbps fiber latency (512-byte packets): 1.516 µs , 10 Gbps fiber latency (1024-byte packets): 1.516 µs , 10 Gbps fiber latency (1518-byte packets): 1.523 µs , 10 Gbps copper latency (64-byte packets): 2.409 µs , 10 Gbps copper latency (512-byte packets): 2.425 µs , 10 Gbps copper latency (1024-byte packets): 2.43 µs , 10 Gbps copper latency (1518-byte packets): 2.432 µs , 1 Gbps fiber latency (64-byte packets): 2.285 µs , 1 Gbps fiber latency (512-byte packets): 2.39 µs , 1 Gbps fiber latency (1024-byte packets): 2.426 µs , 1 Gbps fiber latency (1518-byte packets): 2.379 µs , 1 Gbps copper latency (64-byte packets): 2.702 µs , 1 Gbps copper latency (512-byte packets): 2.714 µs , 1 Gbps copper latency (1024-byte packets): 2.73 µs , 1 Gbps copper latency (1518-byte packets): 2.709 µs | |
| MAC Address Table Size | 128K | |
| Jumbo Frame Support | 12KB | |
| Routing Protocol | OSPF, RIP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, MLDv2 | |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTPS, SSH, CLI | |
| Expansion / Connectivity | ||
| Expansion / Connectivity | 48 x 10GBase-T RJ-45 , 4 x 10GBase-X SFP+ , 1 x management (Gigabit LAN) RJ-45 , 1 x serial (RS-232) RJ-45 , 1 x console (mini-USB) , 1 x USB Type A | |
| Power | ||
| Power Device | Internal power supply | |
| Installed Qty | 1 (installed) / 2 (max) | |
| Power | 2500 Watt | |
| Voltage Required | AC 120/230 V | |
| Power Consumption Operational | 237.2 Watt | |
| Miscellaneous | ||
| Compliant Standards | CISPR 22 Class A, EN55024, EN50082-1, FCC Part 15 A, C-Tick Class A, VCCI Class A, EN 55022 Class A | |
| Features | ARP support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, STP Root Guard, IPv4 support, LACP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), dynamic ARP protection, IP source guard, Bridge protocol data unit (BPDU), LISP Across Subnet Mode (ASM), Source-Specific Multicast (SSM) | |
| Environmental | ||
| Operating Environment | Min Operating Temperature: 32 °F | |
| Max Storage Temperature: 158 °F | ||
| Max Operating Temperature: 122 °F | ||
| Humidity Range Operating: 0 - 90% (non-condensing) | ||
| Min Storage Temperature: -4 °F | ||
| Humidity Range Storage: 0 - 95% (non-condensing) | ||
| Warranty: | 5 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 3-4 weeks |
| E-mail: | support@netgear.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Netgear |
| Type of Support: | FULL |
| Phone No.: | 888-638-4327 |
| URL: | Click here for Manufacturer Website |
