- Innodisk DESSH-A28DK1EC1SFA-B051 SATA3DOM 128GB TLC - MEM-IDSAHT1-128G - SH 3TE7 Series

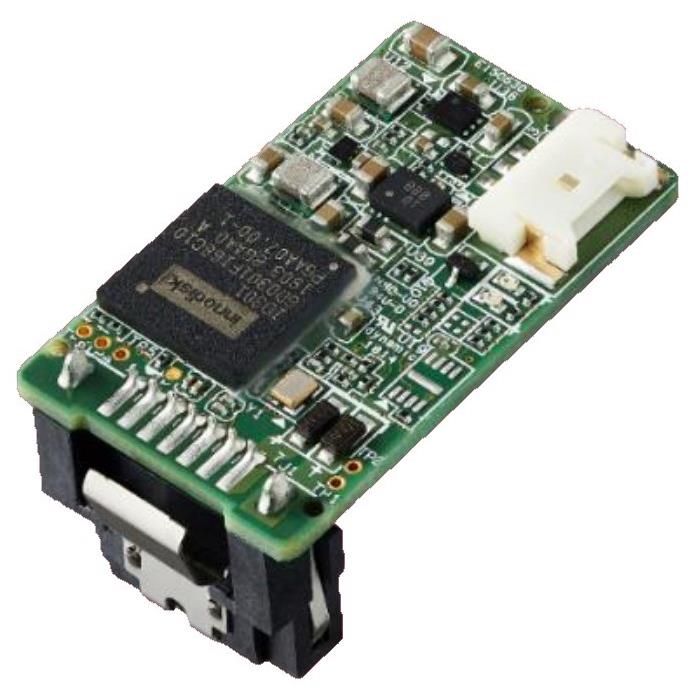

Innodisk DESSH-A28DK1EC1SFA-B051 SATA3DOM 128GB TLC - MEM-IDSAHT1-128G - SH 3TE7 Series
SATA III (6.0GHz) Marvell NAND controller
Designed with hardware LDPC ECC engine
Perfect for a variety of industrial applications
Features, including TRIM, NCQ, and S.M.A.R.T.
SATA3DOM SH 3TE7 128GB TLC with 8-pin VCC - Horizontal - Supermicro P/N MEM-IDSAHT1-128G - OEM
Innodisk SATADOM-SH 3TE7 is characterized by L3 architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L3 architecture is L2 architecture multiplied LDPC (Low-Density Parity Check). L2 (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear-leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.
Innodisk SATADOM-SH 3TE7 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on customer’s system without additional power cable. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.
Features
SATA III solution for industrial field
Exclusive L3 architecture
DRAM-less, 100% data integrity
Excellent random performance
Designed with hardware LDPC ECC engine
Built-in Pin 8 power supply
Extra Specifications for Innodisk DESSH-A28DK1EC1SFA-B051 SATA3DOM 128GB TLC - MEM-IDSAHT1-128G - SH 3TE7 Series
| Main Specifications | ||
| Device Type | SATADOM | |
| Capacity | 128GB | |
| Interface | SATA III 6.0 Gb/s | |
| Form Factor | Horizontal | |
| NAND Flash Memory Type | 3D TLC NAND | |
| Dimensions (WxDxH) | 33.05 x 18.0 x 15.2 | |
| Host Connectivity | 8-pin | |
| Performance | ||
| Internal Data Rate | 550 MB/sec (read) / 490 MB/sec (write) | |
| Power | ||
| Power Consumption | 1.7W | |
| Miscellaneous | ||
| Features | Thermal Sensor, S.M.A.R.T., ATA Security | |
| Environmental Parameters | ||
| Vibration Tolerance | 20G @7~2000Hz | |
| Shock Tolerance | 1500G @ 0.5ms | |
| Min Storage Temperature | -55°C ~ +95°C | |
