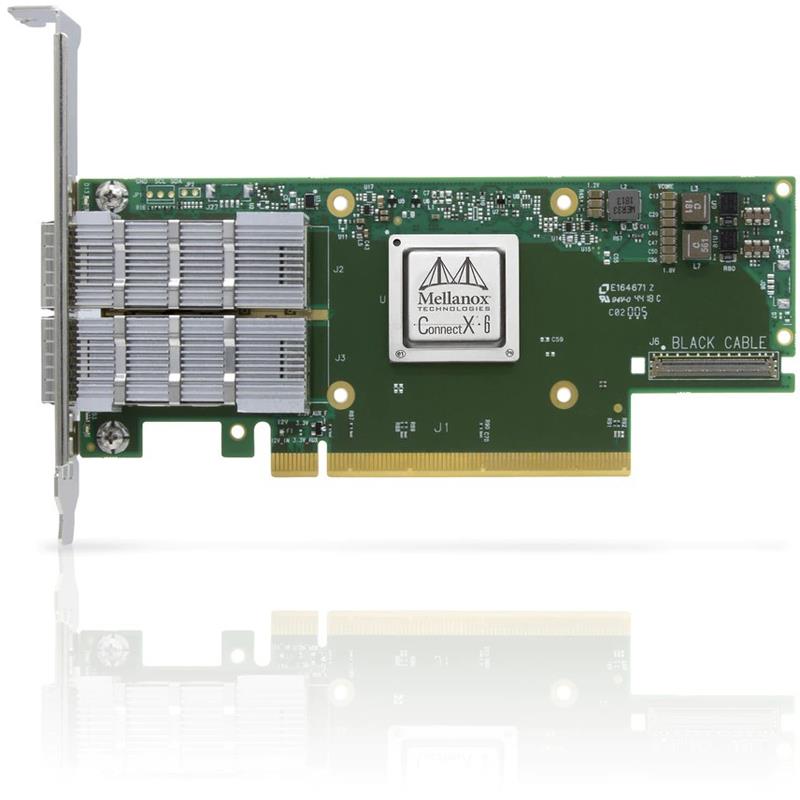

- Supermicro AOC-653106A-HDAT ConnectX-6 VPI HDR 200GbE Ethernet Adapter Card - Gen 4 PCIe x16 Dual-port QSFP56 Connectors
Supermicro AOC-653106A-HDAT ConnectX-6 VPI HDR 200GbE Ethernet Adapter Card - Gen 4 PCIe x16 Dual-port QSFP56 Connectors
Efficient service chaining enablement
Host Chaining technology for economical rack design
Flexible programmable pipeline for new network flows
Supports 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports
2-Port ConnectX-6 VPI HDR InfiniBand Network Interface Card 200GbE QSFP56, PCIe 4.0 x16, RoHS - nVidia MCX653106A-HDAT-SP
Up to 200Gb/s connectivity per port
Max bandwidth of 200Gb/s
Up to 215 million messages/sec
Sub 0.6usec latency
Block-level XTS-AES mode hardware encryption
FIPS capable
Advanced storage capabilities including block-level encryption and checksum offloads
Supports both 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports
Best-in-class packet pacing with sub-nanosecond accuracy
PCIe Gen 3.0 and Gen 4.0 support
RoHS compliant
ODCC compatible
Extra Specifications for Supermicro AOC-653106A-HDAT ConnectX-6 VPI HDR 200GbE Ethernet Adapter Card - Gen 4 PCIe x16 Dual-port QSFP56 Connectors
| Main Specifications | ||
| Device Type | Network adapter - 2 ports | |
| Form Factor | Plug-in Card | |
| Interface (Bus) Type | PCI Express 4.0 x16 | |
| PCI Specification Revision | PCIe 1.1, PCIe 2.0, PCIe 3.0 | |
| Dimensions (WxDxH) | 6.6 in x 3.5 in | |
| Networking | ||
| Ports | 200Gb Ethernet / 200Gb Infiniband QSFP28 x 2 | |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand, 200 Gigabit Ethernet, 200 Gigabit InfiniBand | |
| Data Transfer Rate | 200 Gbps | |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI | |
| Expansion / Connectivity | ||
| Expansion / Connectivity | 2 x 200Gb Ethernet / 200Gb Infiniband - QSFP28 | |
| Software / System Requirements | ||
| OS Required | FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS | |
| Miscellaneous | ||
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by | |
| Features | Auto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), InfiniBand DDR Link support, Jumbo Frames support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, InfiniBand FDR Link support, congestion control, Advanced Error Reporting (AER), Extended Message-Signaled Interrupts (MSI-X), Header Data Split (HDS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), InfiniBand EDR Link support, TLP Processing Hint (TPH), InfiniBand SDR Link support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), user mode registration and remapping of memory (UMR), On demand paging (ODP), Message Signaled Interrupts (MSI), InfiniBand HDR100 Link support | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
