- Supermicro X11SDV-4C-TLN2F-B Motherboard Mini-ITX Embedded Intel Xeon D-2123IT, 4-Core SoC (System on Chip) - BULK

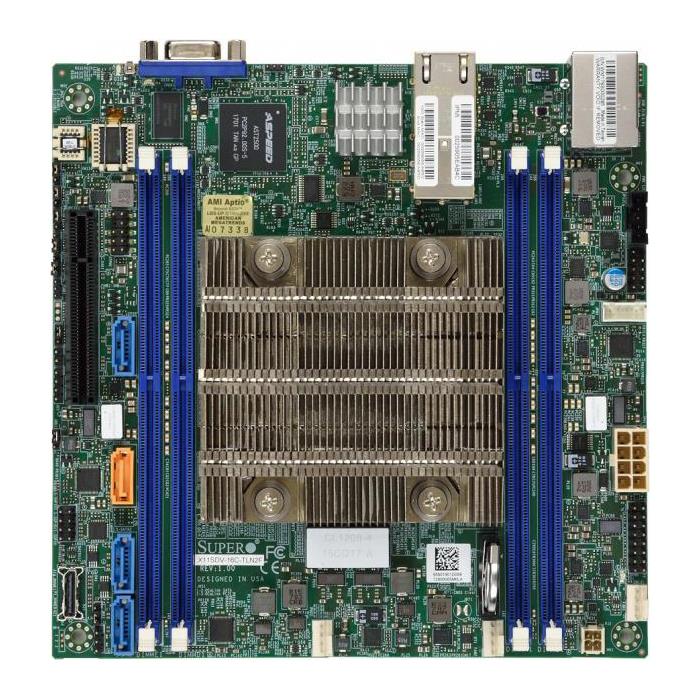

Supermicro X11SDV-4C-TLN2F-B Motherboard Mini-ITX Embedded Intel Xeon D-2123IT, 4-Core SoC (System on Chip) - BULK
• 4 DIMM slots; 1 PCI-E Add-on card
• SoC controller for 8 SATA 6 Gbps ports w/ RAID
• 2x 10GBase-T ports; 1x Dedicated IPMI LAN port
• Intel Xeon Processor D-2123IT 4-Core; 8Threads 60W
Motherboard Mini-ITX, Embedded Intel Xeon D-2123ITProcessor, 2.20GHz 4-Core/8 thread. Up to 512GB ECC LRDIMM DDR4 memory, Chipset: System on Chip, 8 SATA3 RAID 0,1,5,10 + 4 SATA ports via OcuLink for NVMe, 2-port 10GbE, IPMI, VGA, TPM - MBD-X11SDV-4C-TLN2F (BULK PACKING)
• System on Chip
• 12V DC or ATX Power Input
• 2 USB 3.0 ports (rear), 2 USB 2.0 ports (via header)
• Dual LAN with 10GBase-T with Intel X557
• Intel Xeon Processor D-2123IT, 4-Core, 8 Threads, 60W
• 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink
• Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe)
• Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2133MHz in 4 DIMM slots
Extra Specifications for Supermicro X11SDV-4C-TLN2F-B Motherboard Mini-ITX Embedded Intel Xeon D-2123IT, 4-Core SoC (System on Chip) - BULK
| Main Specifications | ||
| Device Type | Motherboard | |
| Form Factor | Mini-ITX | |
| Dimensions (WxDxH) | 6.75" x 6.75" (17.15cm x 17.15cm) | |
| Processor | ||
| Compatible Processors | Intel Xeon Processor D-2123IT, CPU TDP support 60W TDP | |
| Cache/Core | 4 cores, 8 threads / 8MB cache | |
| System Memory | ||
| Memory Capacity | Up to 256GB Registered ECC RDIMM, DDR4-2400MHz, Up to 512GB ECC LRDIMM, DDR4-2400MHz, in 4 DIMM slots | |
| Memory Type | 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM (Operating speed up to 2400MHz) | |
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB, LRDIMM: 16GB, 32GB, 64GB, 128GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | ASPEED AST2500 | |
| Network Controllers | Dual LAN with 10Gbase-T | |
| Graphics | ASPEED AST2500 BMC | |
| TPM | TPM Header | |
| Input / Output | ||
| SATA | SoC controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 - 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe) | |
| LAN | 2 RJ45 10GBase-T ports, 1 RJ45 Dedicated IPMI LAN port | |
| Others | 2 USB 2.0 ports (2 via headers, Type A), 2 USB 3.0 ports (2 rear) | |
| VGA | 1 VGA port | |
| Expansion Slots | ||
| PCI-E | 1 PCI-E 3.0 x8 | |
| 1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink | ||
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | ACPI 6.1, SMBIOS 3.1, UEFI 2.6, PCI FW 3.2 | |
| Management | ||
| Software | Intel Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SSM, SUM, SuperDoctor 5, Watchdog | |
| Power Configurations | +12V DC Power Input, ACPI Power Management | |
| PC Health Monitoring | ||
| Voltage | +1.5V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3 -fan status, Memory Voltages, Monitors CPU voltages, Supports system management utility, VBAT | |
| FAN | 3x 4-pin fan headers (up to 3 fans), 3 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control) | |
| Temperature | Thermal Control for 3 Fan Connectors | |
| LED | UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED | |
| Other Features | 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, Node Manager Support, RoHS, UID | |
| Environmental | ||
| Operating Environment | Operating Temperature Range: 0°C ~ 60°C (32°F ~ 140°F) | |
| Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F) | ||
| Non-Operating Relative Humidity Range: 10% ~ 95% (non-condensing) | ||
| Operating Relative Humidity Range: 10% ~ 85% (non-condensing) | ||
| Parts List | ||
| Motherboard | 1x MBD-X11SDV-4C-TLN2F | |
| I/O Cables | 2x CBL-0044L, 1x CBL-PWEX-1063 | |
| I/O Shield | 1x MCP-260-00084-0N | |
