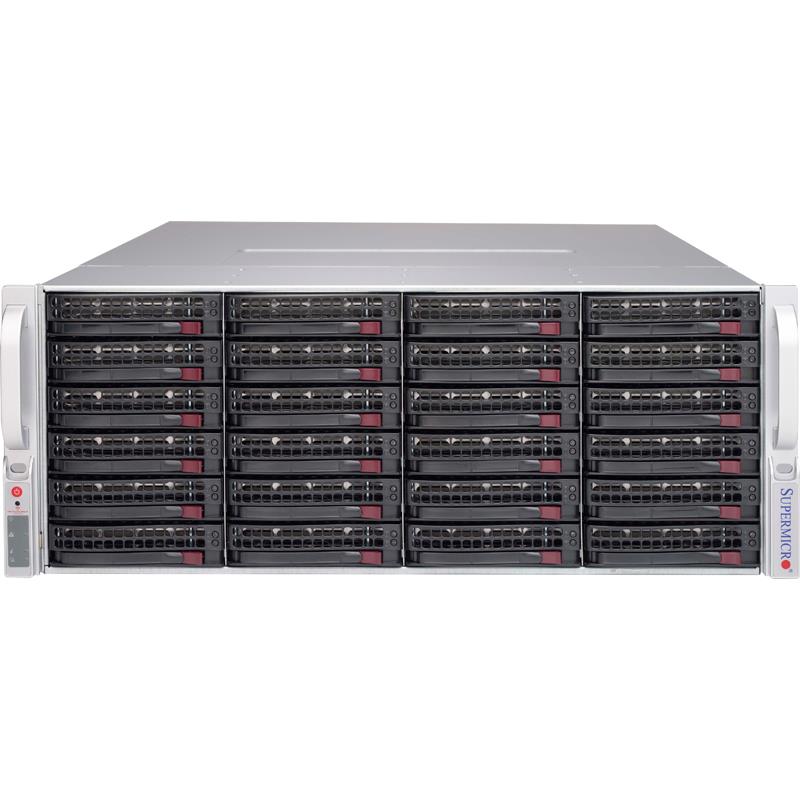

Supermicro CSE-847E2C-R1K23JBOD 4U JBOD 1200W/1000W Power Supply With Dual SAS3 Expander
44x (24 front + 20 rear) 3.5" hot-swap HDD bays
Double-sided High-Density JBOD Storage Enclosure
Design provides high-density storage in a 4U form factor
Equipped with 1280W Platinum Level redundant power supply
4U Rackmount JBOD Chassis with Dual SAS3 Expander and 1200W Power Supply
Double-sided High-Density JBOD Storage Enclosure
44x (24 front + 20 rear) 3.5" hot-swap SAS drive bays supporting SAS3/2 HDDs with 12Gbps throughput
Redundant 1200W Titanium Level (1+1) power supplies with PMBus
7x 8cm (middle) hot-swap redundant cooling fans
SAS3 (12Gbps) backplane with dual expanders supports SAS3 drives for load balancing and redundancy
JBOD Power Control Board with IPMI for remote monitor and power on-off
8x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
Palletized packaging for easy shipping and handling
Qualified SAS HBA / controller: AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA, AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
Extra Specifications for Supermicro CSE-847E2C-R1K23JBOD 4U JBOD 1200W/1000W Power Supply With Dual SAS3 Expander
| Main Specifications | ||
| Device Type | SuperChassis 847E2C-R1K23JBOD | |
| Form Factor | 4U SAS3 JBOD storage chassis | |
| Dimensions (WxDxH) | Height 7" (178 mm) x Width 17.2" (437 mm) x Depth 27.5" (699 mm) | |
| Weight | Net Weight: 95.0 lbs (43.09 kg) | |
| Enclosure Color | Black | |
| Drive Bays | ||
| Hot-swap | 44 x 3.5" hot-swap HDD bays for JBOD solution | |
| On-Board Devices | ||
| Network Controllers | Qualified SAS Controllers: AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter, AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller | |
| SAS/SATA Backplane | ||
| SAS/SATA Backplane | 24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) | |
| 20-port 4U (SC847E2C JBOD) SAS3 12Gbps dual-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) | ||
| Front Panel | ||
| Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button | |
| LEDs | 1 Network Activity LEDs, Fan Fail/System Over Heat LED, Power Status LED, Power Fail LED, Unit Identification (UID) LED | |
| System Cooling | ||
| Fans | 7 x 8cm hot-swap redundant PWM cooling fan(s) | |
| System Monitoring | ||
| System Monitoring | IPMI | |
| Environmental | ||
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) | ||
| Operating Relative Humidity Range: 8% - 90% (non-condensing) | ||
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) | ||
| Power Supply | ||
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm | |
| Certification | 80 Plus Titanium Certified | |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL | |
| Parts List - (Items Included) | ||
| Backplane | 1x BPN-SAS3-846EL2, 1x BPN-SAS3-847EL2 | |
| Parts | 1x CSE-PTJBOD-CB3, 4x MCP-280-84701-0N | |
| Cable | 2x CBL-CDAT-0601, 1x CBL-NTWK-0587, 4x CBL-SAST-0568, 8x CBL-SAST-0593, 8x CBL-SAST-0593-01 | |
| Power Distributor(s) | 1x PDB-PT847-8824 | |
| Power Supply Number | 2x PWS-1K23A-1R | |
