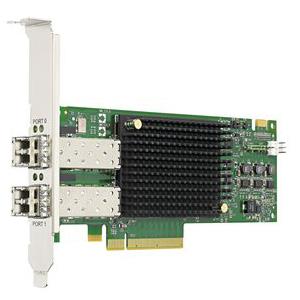

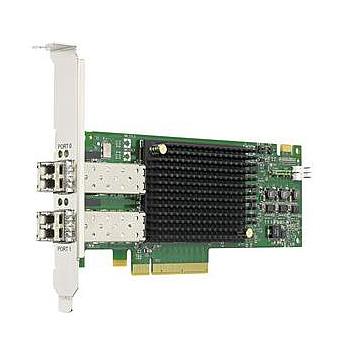

Broadcom AOC-LPE31002-M6 Gen 6 Dual-port 16G Fibre Channel, HF
Fibre Channel Class 3, PCI Hot Plug (PHP)
Support high service-level agreement applications
Support for NVMe/FC for low-latency, high-performance
End-to-end data protection with hardware parity, CRC, ECC
Gen 6 Dual-port 16G Fibre Channel, HF
Fibre Channel is known as the gold standard for network storage connectivity in enterprise and cloud deployments.
The latest Emulex Gen 6 FC HBAs with Dynamic Multi-core architecture offer higher performance, lower latency, enhanced diagnostics and manageability that benefit both 16GFC environments.
Extra Specifications for Broadcom AOC-LPE31002-M6 Gen 6 Dual-port 16G Fibre Channel, HF
| Main Specifications | ||
| Device Type | Host bus adapter | |
| Form Factor | Plug-in Card | |
| Interface (Bus) Type | PCI Express 3.0 x8 | |
| PCI Specification Revision | PCIe 3.0 | |
| Dimensions (WxDxH) | 6.60 x 2.71 in Low profile | |
| Networking | ||
| Ports | 16Gb Fibre Channel x 2 | |
| Data Link Protocol | 16Gb Fibre Channel | |
| Storage Controller | ||
| I/O Controller | XE501 | |
| Software / System Requirements | ||
| OS Supports | Additional support is available from OEMs and partners, Oracle Solaris, SUSE Linux Enterprise Server, VMware vSphere | |
| Miscellaneous | ||
| Compliant Standars | Current ANSI/IETF Standards: FC-PI-4, FC-DA, FC-DA-2, FC-FS, FC-GS-6, FC-LS-2, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-5, FCP-4, Fibre Channel class 3, Legacy ANSI/IETF standards: FC-PH, PCIe base spec 3.0, PCIe card electromechanical spec 3.0, PHP hot plug-hot swap, SBC-3, SPC-4, SSC-4 | |
| Cables Required | 100m at 32Gb on 50/125 μm OM4 MMF, 20m at 32Gb on 50/125 μm OM2 MMF, 70m at 32Gb on 50/125 μm OM3 MMF, Operating at 32Gb | |
| Power Supply | ||
| Certification | [Australia(RCM), Japan(VCCI Class A), China(China RoHS Compliant), Europe(CE Mark, EU RoHS compliant,TUV Bauart Certified), Korea(MSIP[formerly KCC/MIC]Class A), Taiwan(BSMI Class A)] | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
