- Kioxia KCM6XVUL6T40 Hard Drive SSD 6.4TB 2.5in, NVMe PCIe 4 x4

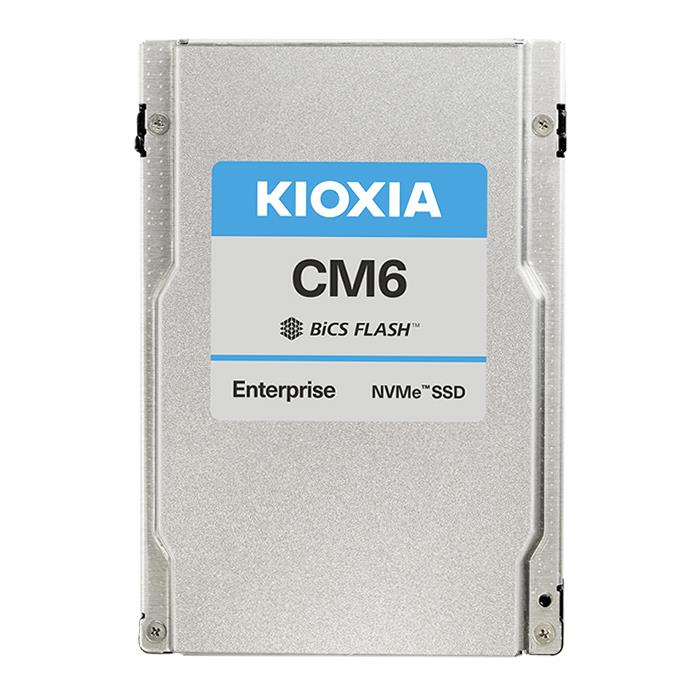

Kioxia KCM6XVUL6T40 Hard Drive SSD 6.4TB 2.5in, NVMe PCIe 4 x4
Dual-port design for high availability applications
Data warehousing, Business intelligence Applications
Power loss protection and end-to-end data protection
6th gene, two-die failure recovery, double parity protection
Hard Drive SSD 6.4TB 2.5in, NVMe PCIe 4 x4 15mm SIE 3DWPD - CM6-V Series Enterprise SSD - OEM
The CM6-V series is a mixed-use SSD that is optimized to support a broad range of enterprise applications and associated workloads, including high-performance computing, online transaction processing, IoT and edge computing, media streaming.
Built on PCIe 4.0 and NVMe 1.4 technology, the CM6 Series SSDs deliver excellent performance up to 1.4M IOPS (random read) and 350 KIOPS (random write), with maximum power consumption of 25 W.
Featuring KIOXIA Corporation’s 96-layer BiCS FLASH 3D TLC memory, the CM6-V Series of enterprise NVMe SSDs delivers 3 DWPD (Drive Writes Per Day) of endurance and supports storage capacities up to 12.8 TB, making them ideally suited for read and write mixed-use enterprise applications.
Extra Specifications for Kioxia KCM6XVUL6T40 Hard Drive SSD 6.4TB 2.5in, NVMe PCIe 4 x4
| Main Specifications | ||
| Device Type | SSD Hard drive with NVMe | |
| Capacity | 6.4TB | |
| Form Factor | 2.5-inch, 15mm Z-height | |
| Interface | PCIe 4.0, NVMe 1.4 | |
| Interface Speed | 64 GT/s (Gen4 1x4, 2x2) | |
| NAND Flash Memory Type | BiCS FLASH TLC | |
| Dimensions (WxDxH) | Height 15.0 mm + 0, - 0.5 mm x Width 69.85 ± 0.25 mm x Length 100.45 mm Max | |
| Weight | 130 g Max. | |
| Performance | ||
| Internal Data Rate | 6900 MBps (read) / 4000 MBps (write) | |
| 4KB Random Read | 1,4000,000 IOPS | |
| 4KB Random Write | 325,000 IOPS | |
| Endurance DWPD | 3 | |
| Power | ||
| Supply Voltage | 12 V ± 10%, 3.3 Vaux ± 15% | |
| Power Consumption | 20 W (Active), 5.0 W (Ready) | |
| Miscellaneous | ||
| MTBF | 2.5 (M hours) | |
| Features | PCIe 4.0, NVMe 1.4 specification compliant, Form factor: 2.5-inch, 15mm Z-height, Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH 96-layer 3D TLC memory, SFF-TA-1001 conformant (U.3), works with Tri-mode controllers and backplanes, Dual-port design for high availability applications, 6th generation, two-die failure recovery and double parity protection, High performance with lower power consumption, Power loss protection (PLP) and end-to-end data protection, Suited for 24x7 enterprise workloads, Data security options: SIE, SED, FIPS 140-2[1, 2, 3, 4, 5], Six power mode settings | |
| Applications | Data warehousing, Online transaction processing (OLTP), (transactional and relational databases), Business intelligence, Artificial intelligence and machine learning | |
| Environmental | ||
| Operating Environment | Temperature (Operating): 0 °C to 70 °C | |
| Humidity (Operating): 5 % to 95 % R.H. | ||
| Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) | ||
| Shock (Operating): 9,800 m/s2 { 1,000 G } ( 0.5 ms duration ) | ||
| Warranty: | 5 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
