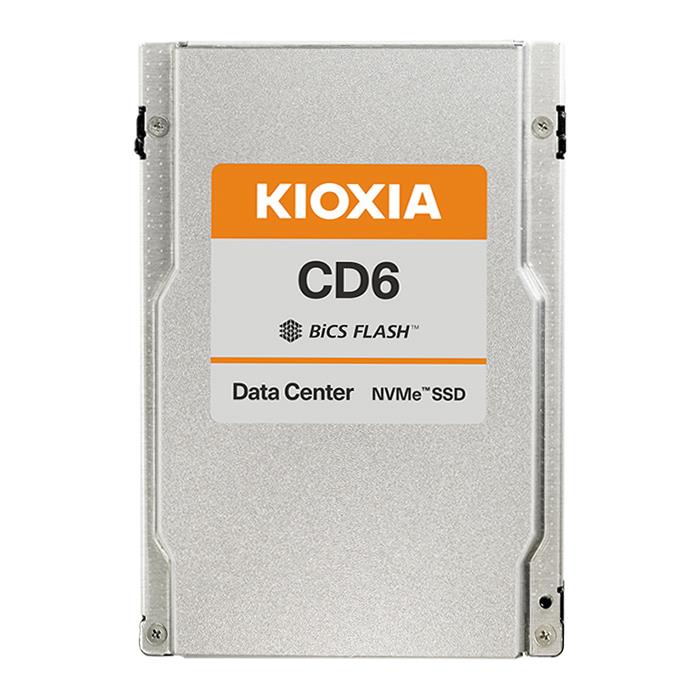

- Kioxia KCD6XVUL6T40 6.4TB NVMe Solid-State Drive 2.5in PCIe 4 x4 SIE TLC NAND 3DWPD - CD6-V Series
Kioxia KCD6XVUL6T40 6.4TB NVMe Solid-State Drive 2.5in PCIe 4 x4 SIE TLC NAND 3DWPD - CD6-V Series
Deliver 3DWPD (Drive Writes Per Day) of endurance
Featuring 96-layer BiCS FLASHTM 3D TLC memory
Well-suited for hyper-scale data center applications
Optimized to support a broad range of scale-out applications
The NVMe Solid-State Drive Features 6.4TB 2.5in, PCIe 4 x4 15mm SIE 3DWPD - CD6-V Series Data Center SSD - OEM
Data Center NVMe Mixed-use SSD
The CD6-V Series is a mixed-use data center NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe Gen4 x4 interface.
Featuring KIOXIA Corporation's 96-layer BiCS FLASHTM 3D TLC memory, CD6-V SSDs deliver 3DWPD (Drive Writes Per Day) of endurance, 2.5-inch form factor, making them well-suited for hyperscale data center applications.
Extra Specifications for Kioxia KCD6XVUL6T40 6.4TB NVMe Solid-State Drive 2.5in PCIe 4 x4 SIE TLC NAND 3DWPD - CD6-V Series
| Main Specifications | ||
| Device Type | Solid State Drive - Internal - SIE Model | |
| Capacity | 6.4TB | |
| Form Factor | 2.5-inch, 15mm Z-height | |
| Interface | PCIe 4.0, NVMe 1.4 | |
| Interface Speed | 64 GT/s (Gen4 x4) | |
| NAND Flash Memory Type | BiCS FLASH TLC | |
| Dimensions (WxDxH) | Height 15.0 mm + 0, - 0.5 mm x Width 69.85 ± 0.25 mm x Length 100.45 mm Max | |
| Weight | 130 g Max. | |
| Performance | ||
| Internal Data Rate | 6200 MBps (read) / 4000 MBps (write) | |
| 4KB Random Read | 1,000,000 IOPS | |
| 4KB Random Write | 250,000 IOPS | |
| Endurance DWPD | 3 | |
| Power | ||
| Supply Voltage | 12 V ± 10%, 3.3 Vaux ± 15% | |
| Power Consumption | 19 W (Active), 5.0 W (Ready) | |
| Miscellaneous | ||
| MTBF | 2.5 (M hours) | |
| Features | PCIe 4.0, NVMe 1.4 specification compliant, Form factor: 2.5-inch, 15mm Z-height, Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH 96-layer 3D TLC, SFF-TA-1001 conformant (U.3), works with Tri-mode controllers and backplanes, Single-port design, optimized for data center class workloads, 6th generation, two-die failure recovery and double parity protection, Consistent performance and reliability for demanding 24x7 environments, Designed for high-density storage deployments, Power loss protection (PLP) and end-to-end data correction | |
| Applications | Hyperscale, IoT and big data analytics, Online transaction processing (OLTP), (transactional and relational databases), Virtualized environments, Streaming media and content delivery networks | |
| Environmental | ||
| Operating Environment | Temperature (Operating): 0 °C to 70 °C | |
| Humidity (Operating): 5 % to 95 % R.H. | ||
| Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) | ||
| Shock (Operating): 9,800 m/s2 { 1,000 G } ( 0.5 ms duration ) | ||
