- Supermicro SYS-E302-9A Compact Embedded Intel Processor IoT Barebone
Supermicro SYS-E302-9A Compact Embedded Intel Processor IoT Barebone
• IoT Edge Computing
• Retail, Smart Medical Expert Systems
• Networking Appliance
• Industrial Automation & Control
• Embedded IoT Gateway
Barebone Compact, Embedded Intel Atom C3558 Processor, 2.20GHz 4-Core/4 Thread/8MB Cache. Up to 256GB DDR4 Memory, Chipset: System on Chip,4-Port Gigabit Ethernet, IoT Fanless, includes 60W DC Power Adapter (CSE-E302iL + A2SDI-4C-HLN4F)
This product is no longer available.
1. Intel® Atom® processor C3558, Single socket FCBGA 1310
2. System on Chip
3. 2x 2.5" 7mm fixed drive bay
4. Up to 256GB registered ECC, up to 64GB unbuf. ECC/non-ECC, DDR4-2133MHz, in 4 DIMM slots
5. 1 M.2 M Key 2242/2280 (PCI-E 3.0 x2)
6. 4 GbE LAN ports w/ Intel C3000 SoC
7. 2 USB 2.0, 1 VGA via BMC
8. Fanless
9. Lockable 12V DC 60W power adapter
Extra Specifications for Supermicro SYS-E302-9A Compact Embedded Intel Processor IoT Barebone
| Motherboard | ||
| Motherboard | Super A2SDi-4C-HLN4F | |
| Processor/Cache | ||
| CPU | FCBGA 1310 | |
| Intel® Atom® processor C3558 | ||
| 4 Cores, 2.2GHz | ||
| CPU TDP support 16W | ||
| System Memory | ||
| Memory Capacity | 4x DDR4 DIMM sockets | |
| Supports up to 64GB DDR4 ECC/non-ECC UDIMM | ||
| Supports up to 256GB DDR4 ECC RDIMM | ||
| Memory Type | 2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM | |
| DIMM Sizes | 64GB, 32GB, 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | System on Chip | |
| SATA | SoC controller for SATA3 (6Gbps) ports | |
| Network Controllers | Quad Gigabit Ethernet LAN via Intel® C3000 SoC | |
| Graphics | Aspeed AST2400 BMC | |
| Input / Output | ||
| SATA | 2 SATA3 (6Gbps) ports | |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 2.0 ports (rear) | |
| Display | 1 VGA port | |
| TPM | TPM header | |
| Chassis | ||
| Form Factor | Compact | |
| Model | CSE-E302IL | |
| Dimensions | ||
| Width | 11.6" (295mm) | |
| Height | 3" (76mm) | |
| Depth | 8.1" (206mm) | |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) | |
| Net Weight: 3.45 lbs (1.56 kg) | ||
| Available Colors | Black | |
| Front Panel | ||

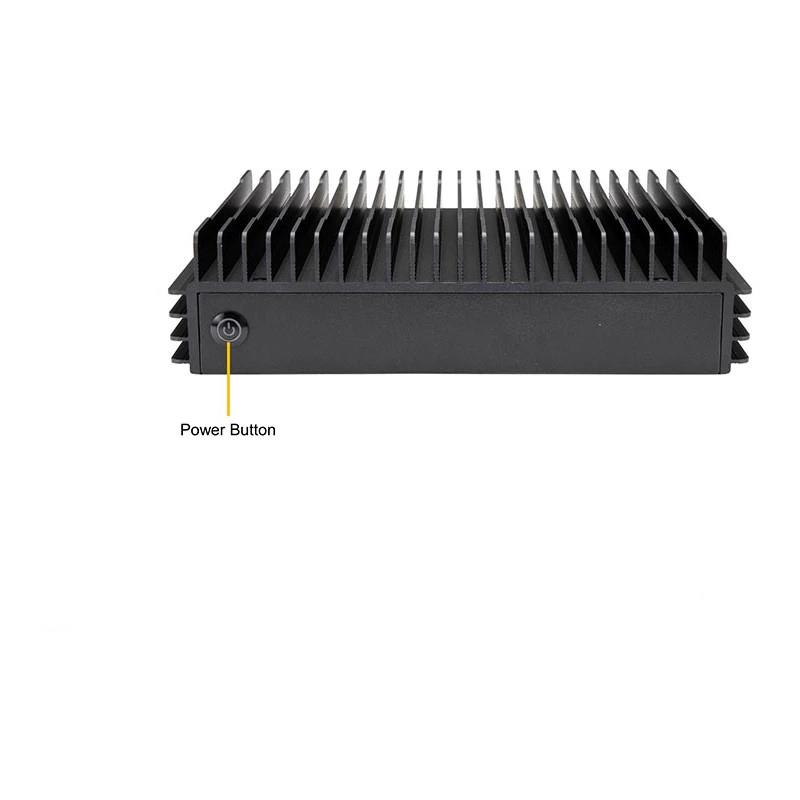

| Buttons | Power On/Off button | |
| LEDs | Power LED (Hard drive activity LED) | |
| Expansion Slots | ||
| PCI-Express | 1x M.2 M Key 2242/2280 (PCI-E 3.0 x2) | |
| Drive Bays / Storage | ||
| Internal | 2x 2.5" 7mm fixed drive bay | |
| M.2 | Key: M-Key | |
| Interface: PCI-E 3.0 x2 & SATA | ||
| Form Factor: 2242, 2280 | ||
| System Cooling | ||
| System Cooling | Fanless | |
| Power Supply | ||
| Power Supply | Lockable 12V DC 60W power adapter | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | UEFI 2.4 | |
| SMBIOS 2.7.1 | ||
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| OOB | ||
| Power Configurations | Power-on mode for AC power recovery | |
| CPU thermal trip support for processor protection | ||
| ACPI / APM Power Management | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s air flow with wide temperature M.2 or SSD (0°C to 85°C) | ||
| Product SKUs | ||
| Product SKUs | SuperServer E302-9A (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-A2SDi-4C-HLN4F | 1 | Super A2SDi-4C-HLN4F Motherboard | |
| Motherboard / Chassis | CSE-E302iL | 1 | Fan-less Embedded BOX for Flex-ATX, Mini-ITX 1.5U H w/o PWS | |
| Tray | MCP-220-30201-0B | 1 | Black, Fixed HDD tray 2.5in(2x7/1x15mm) for CSE-E302 | |
| Heat Sink | MCP-350-30201-0N | 0 | Thermal block 64.5*43*12.7mm AL6063 for CSE-E302 | |
| Power Adapter | MCP-250-10134-0N | 1 | 60W DC power adapter with US power cord 18AWG 6ft |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable | CBL-SAST-1034 | $ 25.00 | 1 | SATA Splitter Cable with Power to Support Dual Storage Devices | ||
| Thermal Solution for NVMe M.2 drives | MCP-350-30204-0N | $ 33.50 | 1 | Required with NVMe M.2 drives | ||
| Wall mount/VESA mount | MCP-290-30201-0B | $ 72.00 | 1 | WALL / VESA mount kit with adapter holder |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
