- Kioxia KCM6XRUL3T84 3.84TB NVMe Solid-State Drive PCIe 4x4 2.5in TLC NAND 1DWPD SIE - CM6-R Series

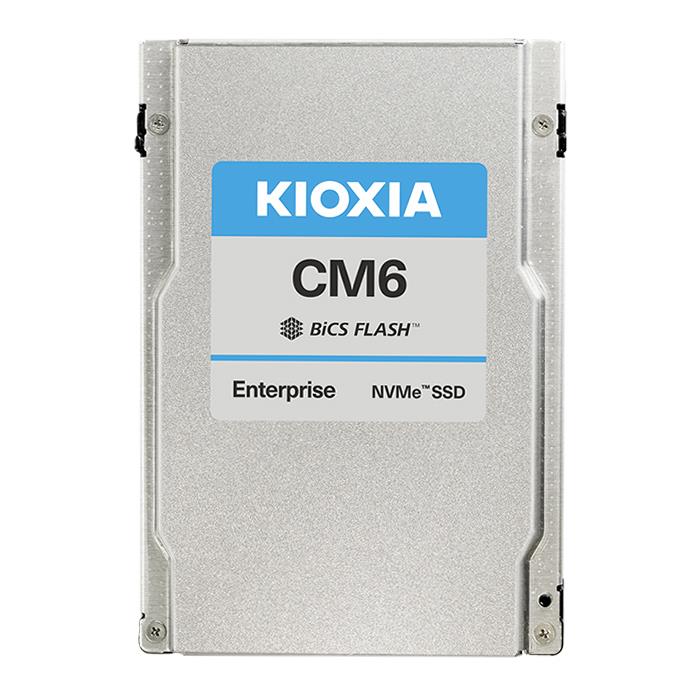

Kioxia KCM6XRUL3T84 3.84TB NVMe Solid-State Drive PCIe 4x4 2.5in TLC NAND 1DWPD SIE - CM6-R Series
Featuring 96-layer BiCS FLASHTM 3D TLC memory
Deliver 1DWPD (Drive Writes Per Day) of endurance
Power loss protection (PLP) and end-to-end data protection
Optimized to support a broad range of enterprise applications
The NVMe Solid-State Drive Features 3.84TB PCIe 4x4 2.5in 15mm SIE 1DWPD - OEM
Enterprise NVMe Read-intensive SSD
The CM6-R series is a read-intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software-defined storage and virtualization.
Built on PCIe 4.0 and NVMe 1.4 technology. Featuring KIOXIA Corporation's 96-layer BiCS FLASH 3D TLC memory, the CM6-R Series of enterprise NVMe SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance making them ideally suited for read-intensive enterprise applications.
SIE option supports Crypto Erase, which is a standardized feature defined by NVM Express Inc.
Extra Specifications for Kioxia KCM6XRUL3T84 3.84TB NVMe Solid-State Drive PCIe 4x4 2.5in TLC NAND 1DWPD SIE - CM6-R Series
| Main Specifications | ||
| Device Type | SSD Hard drive with NVMe | |
| Capacity | 3.84TB | |
| Form Factor | 2.5-inch, 15mm Z-height | |
| Interface | PCIe 4.0, NVMe 1.4 | |
| Interface Speed | 64 GT/s (Gen4 1x4, 2x2) | |
| NAND Flash Memory Type | BiCS FLASH TLC | |
| Dimensions (WxDxH) | Height 15.0 mm + 0, - 0.5 mm x Width 69.85 ± 0.25 mm x Length 100.45 mm Max | |
| Weight | 130 g Max. | |
| Performance | ||
| Internal Data Rate | 6900 MBps (read) / 4200 MBps (write) | |
| 4KB Random Read | 1,400,000 IOPS | |
| 4KB Random Write | 170,000 IOPS | |
| Power | ||
| Supply Voltage | 12 V ± 10%, 3.3 Vaux ± 15% | |
| Power Consumption | 19 W (Active), 5.0 W (Ready) | |
| Miscellaneous | ||
| MTBF | 2.5 (M hours) | |
| Features | PCIe 4.0, NVMe 1.4 specification compliant, Form factor: 2.5-inch, 15 mm Z-height, Proprietary KIOXIA architecture: controller, firmware and BiCS FLASHTM 96-layer 3D TLC memory, SFF-TA-1001 conformant (U.3), works with Tri-mode controllers and backplanes, Dual-port design for high availability applications, 6th generation, two-die failure recovery and double parity protection, High performance with lower power consumption, Power loss protection (PLP) and end-to-end data protection, Suited for 24x7 enterprise workloads, Six power mode settings | |
| Applications | Software defined storage and virtualization, Data warehousing, Online transaction processing (OLTP), (transactional and relational databases), Business intelligence, Artificial intelligence and machine learning | |
| Environmental | ||
| Operating Environment | Temperature (Operating): 0 °C to 70 °C | |
| Humidity (Operating): 5 % to 95 % R.H. | ||
| Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) | ||
| Shock (Operating): 9,800 m/s2 { 1,000 G } ( 0.5 ms duration ) | ||
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Kioxia |
| Type of Support: | FULL |
| Phone No.: | 949-737-7300 |
| URL: | Click here for Manufacturer Website |
