- Kioxia KCM6XVUL800G Hard Drive CM6 800GB NVMe PCIe 4x4 2.5in

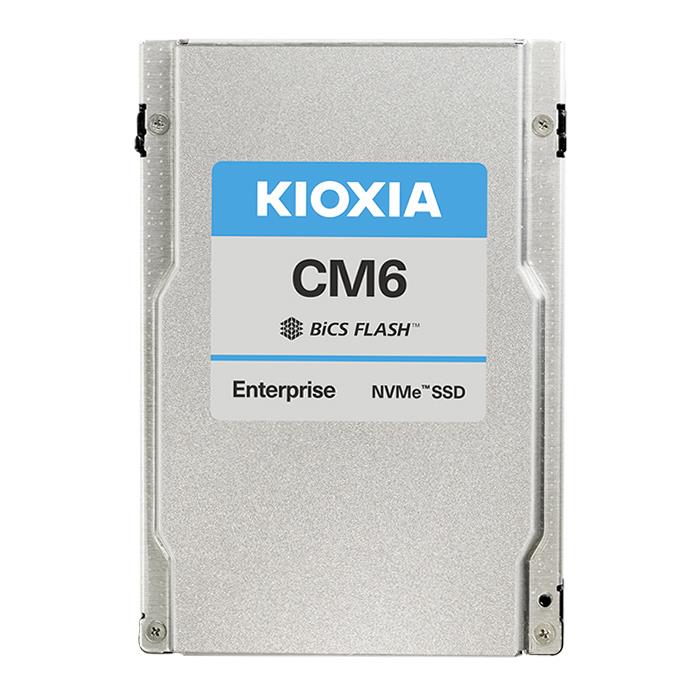

Kioxia KCM6XVUL800G Hard Drive CM6 800GB NVMe PCIe 4x4 2.5in
Dual-port design for high availability applications
Power loss protection and end-to-end data protection
KIOXIA Corporation’s 96-layer BiCS FLASH 3D TLC memory
Optimized to support a broad range of enterprise applications
Hard Drive CM6 800GB NVMe PCIe 4x4 2.5in 15mm SIE 3DWPD - OEM
Enterprise NVMe Mixed-use SSD
The CM6-V series is a mixed-use SSD that is optimized to support a broad range of enterprise applications and associated workloads, including high-performance computing, online transaction processing, IoT and edge computing, media streaming. Built on PCIe 4.0 and NVMe 1.4 technology.
Featuring KIOXIA Corporation’s 96-layer BiCS FLASH 3D TLC memory, the CM6-V Series of enterprise NVMe SSDs delivers 3 DWPD (Drive Writes Per Day) of endurance and supports storage capacities up to 12.8 TB, making them ideally suited for read and write mixed-use enterprise applications.
Extra Specifications for Kioxia KCM6XVUL800G Hard Drive CM6 800GB NVMe PCIe 4x4 2.5in
| Main Specifications | ||
| Device Type | Solid State Drive - Internal - SIE Model | |
| Capacity | 800GB | |
| Form Factor | 2.5-inch, 15mm Z-height | |
| Interface | PCIe 4.0, NVMe 1.4 | |
| Interface Speed | 64 GT/s (Gen4 1x4, 2x2) | |
| NAND Flash Memory Type | BiCS FLASH TLC | |
| Dimensions (WxDxH) | Height 15.0 mm + 0, - 0.5 mm x Width 69.85 ± 0.25 mm x Length 100.45 mm Max | |
| Weight | 130 g Max. | |
| Performance | ||
| Internal Data Rate | 9200 MBps (read) / 1400 MBps (write) | |
| 4KB Random Read | 880,000 IOPS | |
| 4KB Random Write | 100,000 IOPS | |
| Power | ||
| Supply Voltage | 12 V ± 10%, 3.3 Vaux ± 15% | |
| Power Consumption | 14 W (Active), 5.0 W (Ready) | |
| Miscellaneous | ||
| MTBF | 2.5 (M hours) | |
| Features | PCIe 4.0, NVMe 1.4 specification compliant, Form factor: 2.5-inch, 15mm Z-height, Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH 96-layer 3D TLC memory, SFF-TA-1001 conformant (U.3), works with Tri-mode controllers and backplanes, Dual-port design for high availability applications, 6th generation, two-die failure recovery and double parity protection, High performance with lower power consumption, Power loss protection (PLP) and end-to-end data protection, Suited for 24x7 enterprise workloads, Data security options: SIE, SED, FIPS 140-2[1, 2, 3, 4, 5], Six power mode settings | |
| Applications | Data warehousing, Online transaction processing (OLTP), (transactional and relational databases), Business intelligence, Artificial intelligence and machine learning | |
| Environmental | ||
| Operating Environment | Temperature (Operating): 0 °C to 70 °C | |
| Humidity (Operating): 5 % to 95 % R.H. | ||
| Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) | ||
| Shock (Operating): 9,800 m/s2 { 1,000 G } ( 0.5 ms duration ) | ||
| Warranty: | 5 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Kioxia |
| Type of Support: | FULL |
| Phone No.: | 949-737-7300 |
| URL: | Click here for Manufacturer Website |
