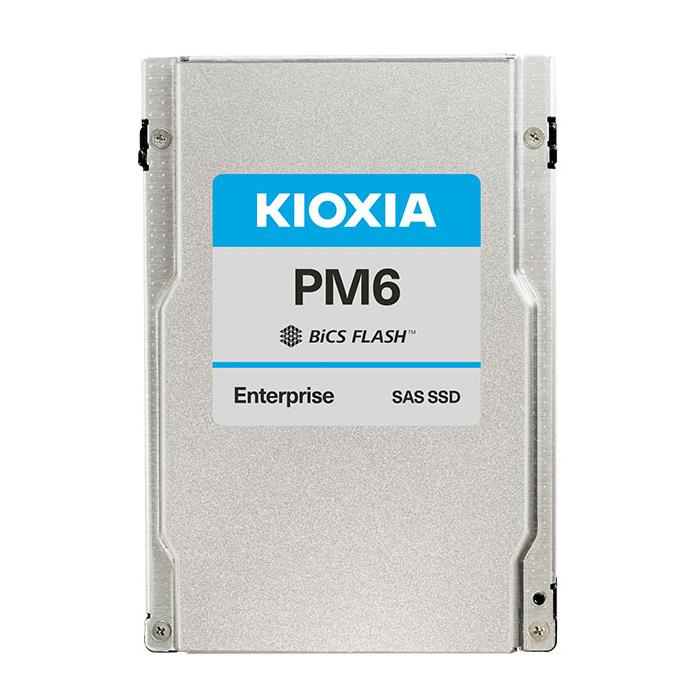

- Kioxia KPM6XVUG3T20 Hard Drive PM6 3.2TB SAS 24Gb/s 2.5in
Kioxia KPM6XVUG3T20 Hard Drive PM6 3.2TB SAS 24Gb/s 2.5in
3 DWPD with 100 % Random Write Workload
24G SAS interface with single/dual-port support
Up to 595K random read IOPS (4 KiB) in dual-port mode
Web servers, Data warehousing, Streaming media Applications
Hard Drive PM6 3.2TB SAS 24Gb/s 2.5in 15mm 3DWPD SIE
This product is no longer available.
PM6-V Series 24G SAS Enterprise SSD is optimized for mixed-use applications, including relational database, streaming media, data warehousing, and web services. The series is designed to deliver balanced levels of performance, reliability, capacity, and endurance for mixed-use and read-intensive environments.
Featuring KIOXIA Corporation’s 96-layer BiCS FLASHTM 3D flash memory, this 6th generation enterprise SAS SSD PM6-V offers 3 DWPD (Drive Writes Per Day).
Key Features
24G SAS interface with single/dual-port support
T10 Multi-Stream Write support
Up to 595K random read IOPS (4 KiB) in dual-port mode
2.5-inch form factor, 15 mm Z-height
3 DWPD with 100 % Random Write Workload
Power Loss Protection and End-to-End Data Protection, including T10 DIF
Pin-3 Power Disable Support
Sanitize Instant Erase (SIE)
Extra Specifications for Kioxia KPM6XVUG3T20 Hard Drive PM6 3.2TB SAS 24Gb/s 2.5in
| Main Specifications | ||
| Device Type | Solid State Drive - Internal - SIE Model | |
| Capacity | 3.2TB | |
| Form Factor | 2.5-inch, 15mm Z-height | |
| Interface | 24G SAS | |
| Interface Speed | 22.5 Gbit/s, 12.0 Gbit/s, 6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s | |
| NAND Flash Memory Type | BiCS FLASH TLC | |
| Dimensions (WxDxH) | Height 15.0 mm + 0, - 0.5 mm x Width 69.85 ± 0.25 mm x Length 100.45 mm Max | |
| Weight | 130 g Max. | |
| Performance | ||
| Internal Data Rate | 4150 MBps (read) / 2450 MBps (write) | |
| 4KB Random Read | 595K IOPS | |
| 4KB Random Write | 240K IOPS | |
| Power | ||
| Supply Voltage | 5 V + 10% / - 7% 12 V ± 10 % | |
| Power Consumption | 5.0 W Typ. | |
| Environmental | ||
| Operating Environment | Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) | |
| Shock (Operating): 9,800 m/s2 { 1,000 G } ( 0.5 ms duration ) | ||
| Case Surface Temperature (Operating): 0 °C to 70 °C | ||
| Humidity (Operating): 5 % to 95 % R.H. (No condensation) | ||
| Miscellaneous | ||
| MTBF | 2.5 (M hours) | |
| Applications | Web servers, Data warehousing, Streaming media | |
| Warranty: | 5 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Kioxia |
| Type of Support: | FULL |
| Phone No.: | 949-737-7300 |
| URL: | Click here for Manufacturer Website |
