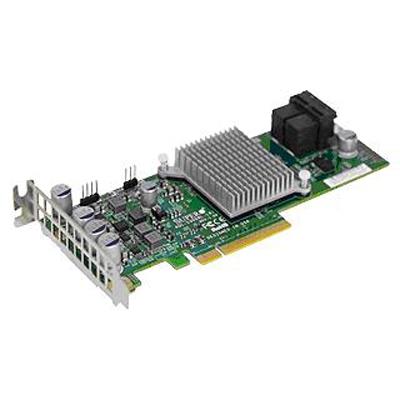

- Supermicro AOC-S3008L-L8E+ Internal Host Bus Adapter 8-Port SAS3 12Gb/s & SATA3 6Gb/s Gen3 PCIe x8 HBA, Broadcom 3008
Supermicro AOC-S3008L-L8E+ Internal Host Bus Adapter 8-Port SAS3 12Gb/s & SATA3 6Gb/s Gen3 PCIe x8 HBA, Broadcom 3008
8 Internal Ports SAS HBA Adapter Card Gen3/SAS3 8 PORT HBA + I2C, IPMI support, HF - RoHS
Broadcom 3008 SAS controller
8-port (internal), 12Gb/s per port
Supports 122 devices - HBA only
Automatically negotiates PCI-E (1.x, 2.x and 3.x) link widths
Power management support
Supports 3.0, 6.0 and 12Gb Gb/s SAS and SATA data transfer rates
Port independent auto-negotiation
Supports SSP, SMP, STP and SATA protocols
Zoning capability w/ SAS3 expanders
OS Support: Windows 2012, 2k8,Vista, RedHat Enterprise and SUSE Linux
Processor at 1.2 GHZ
AOC-S3008L-L8e+
enables IPMI interface through new I²C port
Uses 2 MiniSAS HD (SFF-8643) connectors
Operating Temp: 0° to 55°C
Extra Specifications for Supermicro AOC-S3008L-L8E+ Internal Host Bus Adapter 8-Port SAS3 12Gb/s & SATA3 6Gb/s Gen3 PCIe x8 HBA, Broadcom 3008
Add-on Card | ||
Add-on Card | The Supermicro HBA features 8 internal SAS connectors for high-performance storage connectivity. Use a Broadcom 3008 I/O processor with Fusion-MPT (Message Passing Technology) for optimum performance and a PCI Express host interface for increased bandwidth. The supports 122 devices as a HBA in IT mode. This product is only available through Supermicro. | |
Compliance | ||
RoHS | RoHS Compliant 6/6, Pb Free | |
Dimensions and Weight | ||
H x L | 2.7" x 6.6" | |
Weight | 0.5 lbs | |
Tested Motherboards and Servers | ||
Motherboards | X9DRH-7TF:https://www.supermicro.com/products/motherboard/xeon/c600/x9drh-7tf.cfm | |
X9DR3-LN4F+:https://www.supermicro.com/products/motherboard/xeon/c600/x9dr3-ln4f_.cfm | ||
X9DRT-PIBQ:https://www.supermicro.com/products/motherboard/xeon/c600/X9DRT-PIBQ.cfm | ||
X9DRT-P:https://www.supermicro.com/products/motherboard/xeon/c600/X9DRT-P.cfm | ||
Downloads | ||
User's Guide | [ https://www.supermicro.com/manuals/other/AOC-S3008L-L8e.pdf ] | |
Driver | [ https://www.supermicro.com/wdl/driver/SAS/Broadcom/3008/Driver/ ] | |
Firmware | [ https://www.supermicro.com/wdl/driver/SAS/Broadcom/3008/Firmware/ ] | |
Tested Hard Drives | ||
Tested HDD/SSD | [ Tested HDD List ]:https://www.supermicro.com/en/support/resources/hdd/display?Category=AOC&sz=3.5&ctrl=61 |
Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
