- Supermicro CSE-825TQ-600LPB Server Chassis 2U Rackmount 600W Power Supply

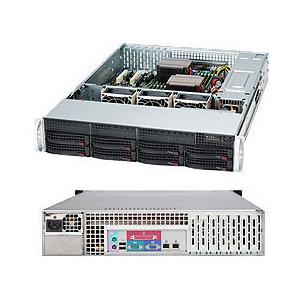

Supermicro CSE-825TQ-600LPB Server Chassis 2U Rackmount 600W Power Supply
• Up to 8x 3.5-inch SAS/SATA HDD
• Optional 1 x slim DVD-ROM drive bay
• Supports motherboard E-ATX and ATX
• 2U chassis - 600W platinum power supply
Rackmount 2U Chassis w/ 600W High-Efficiency Power Supply w/ PFC for Motherboard up to E-ATX - 8x 3.5in Hot-Swap SAS/Sata Drive Trays, Optional Slim DVD (or) Slim Floppy Drive, 7 LP I/O Expansion Slots, Rails Kit (Black)
1. 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
2. 8 x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards, 2 x 3.5" fixed drive bay
3. 8-port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDD
4. 1U 600W platinum efficiency multiple output power supply w/PMBus
5. 7 low-profile expansion slot(s)
6. 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
Extra Specifications for Supermicro CSE-825TQ-600LPB Server Chassis 2U Rackmount 600W Power Supply
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Efficiency | 92% | |
| Total Output Power and Input | 600W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 279.4 x 76 x 40.4 mm | |
| Output Type | 24pin ATX | |
| -12V | Max: 0.5A / Min: 0A | |
| +12V | Max: 49A / Min: 0.5A (100Vac - 240Vac) | |
| +5V | Max: 18A / Min: 0.5A | |
| +3.3V | Max: 15A / Min: 0.5A | |
| +5Vsb | Max: 3A / Min: 0A | |
| Product SKUs | ||
| Product SKUs | CSE-825TQ-600LPB | |
| Form Factor | ||
| Form Factor | 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards | |
| Dimensions | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.5" (647 mm) | |
| Gross Weight | 52 lbs (23.59 kg) | |
| Net Weight | 37 lbs (16.78 kg) | |
| Packaging (W x H x L) | 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7x Low-profile expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 2x 3.5" fixed drive bay | |
| 8x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards | ||
| Backplane | ||
| Backplane | 8-Port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDD | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1x slim DVD-ROM drive bay | |
| Optional 2x USB 3.0 ports | ||
| 2x USB 2.0 ports | ||
| 1x COM port tray | ||
| Front Panel | ||
| Button | Power On/Off button | |
| System Reset button | ||
| LED | Power status LED | |
| HDD activity LED | ||
| 2 Network Activity LEDs | ||
| System Information LED | ||
| Power Fail LED | ||
| Systems Cooling | ||
| Fans | 3x 8cm (7000 RPM) hot-swap PWM cooling fan(s) | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| TUV/CB | ||
| UL/CUL | ||
| FCC class B | ||
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
