| Main Specifications |

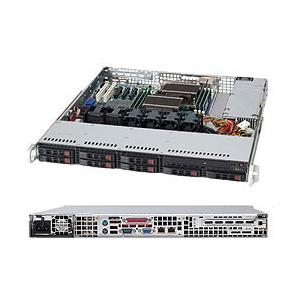

| Device Type | SuperChassis 113TQ-600CB |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 23.5" (597 mm) |
| Color | Black |
| Height (Rack Units) | 1U Rackmount Chassis |
| Max Mainboard Size | Support for motherboard size: 12" x 13" E-ATX and 13.68" x 13" |
| Weight | 35 lbs (16kg) |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1x Full-height & Full-length PCI expansion slot |
| Peripheral Drives |
| CD-ROM / DVD-ROM | Slim DVD-ROM drive |
| Drive Bays |
| Hot-swap | 8x Hot-swap 2.5" SAS / SATA HDD tray |
| Front Panel |
| Buttons | Power On/Off button, System Reset button, UID button |
| LEDs | Power status LED, HDD activity LED, 2x Network activity LEDs, Universal Information (UID) LED |
| Operating Environment (System) |
| Operating Temperature Range | Operating Temperature Range 5C ~ 35C (41F ~ 95F) |
| Non-Operating Temperature Range -40C ~ 60C (-40F ~ 140F) |
| Operating Relative Humidity Range 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | 600W AC-DC power supply and power distributor w/ PFC |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 1x 1U SAS / SATA backplane |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, CCC Certification, EN 60950/IEC 60950-Compliant, Europe/CE Mark, Germany - TUV Certified |
| Parts List - (Items Included) |
| Air Shroud | MCP-310-00002-01 |
| Backplane | BPN-SAS-113TQ / MCP-220-00047-0B |
| Mounting Rails | CSE-PT51L |
| Parts List |
| Cables | CBL-0157L, CBL-0191L, CBL-0180L-01 |
| System Cooling |
| Fans | FAN-0086L4 |
| Standard Parts List |
| Front Panel | MCP-280-00017-0N |
