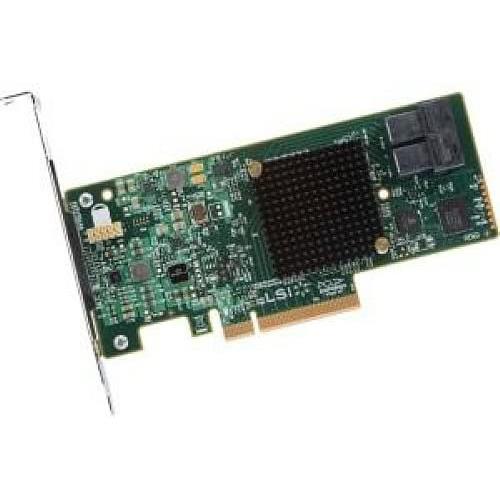

Supermicro AOC-SAS3-9341-4i 4 Ports Internal LSI MegaRAID 9341-4i, SAS3 RAID
Four internal 12Gb/s SATA and SAS ports
Designed for small and medium businesses
1 HD Mini-SAS SFF8643 (Horizontal mount)
Fit into 1U/2U rack-mounted servers and compact servers
4-Port Internal LSI MegaRAID 9341-4i, SAS3 RAID levels 0/1/5/6 PCIe 3.0 - OEM
Improve data performance and protection cost-effectively for small business and server storage applications
Email, file, SharePoint, and similar critical apps must scale easily over time while remaining both highly protected and easily manageable. That’s where the MegaRAID SAS 9341-4i 12Gb/s controller card can add real value. Designed for small and medium businesses (SMBs) with tower and rack-mounted and servers, it provides the headroom required for future growth at an affordable price point.
Connect up to 64 SATA or SAS drives in non-RAID (JBOD) mode or 32 drives in RAID mode with four internal 12Gb/s SATA and SAS ports
Support high-bandwidth applications with PCIe® 3.0 connectivity
Fit into 1U/2U rack-mounted servers and compact servers with low-profile form factor
Balance protection and performance for critical applications with RAID levels 0, 1, 5, 10 and 50
Extra Specifications for Supermicro AOC-SAS3-9341-4i 4 Ports Internal LSI MegaRAID 9341-4i, SAS3 RAID
| Main Specifications | ||
| Device Type | Storage Controller | |
| Form Factor | Plug-in card - low profile | |
| Interface (Bus) Type | PCIe 3.0 x8 | |
| Storage Controller | ||
| RAID-on-Chip Controller | LSISAS3008 PowerPC 476 controller @ 1.2 GHz | |
| Data Transfer Rate | Up to 12Gb/s per port | |
| Channel Quantity | 4x Internal Ports | |
| Expansion / Connectivity | ||
| Interface and Connections | 1 HD Mini-SAS SFF8643 (Horizontal mount) | |
| Software / System Requirements | ||
| Management Software | LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) | |
| OS Supports | Extensive support includes Microsoft Windows Vista/2008/Server 2003/2000/XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more. | |
| Power | ||
| Operating Voltage | +12V | |
| Power Supply | ||
| Certification | Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), Safety: EN60950 | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
