- Supermicro SBA-4119S-T2N Single-Socket Blade AMD SP3 Rome/Milan
Supermicro SBA-4119S-T2N Single-Socket Blade AMD SP3 Rome/Milan

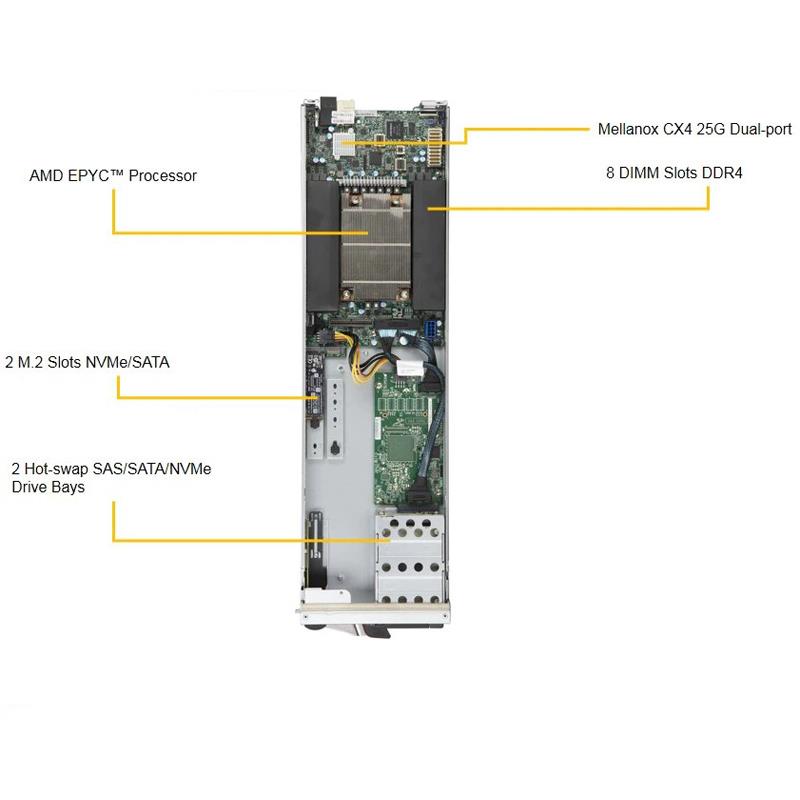

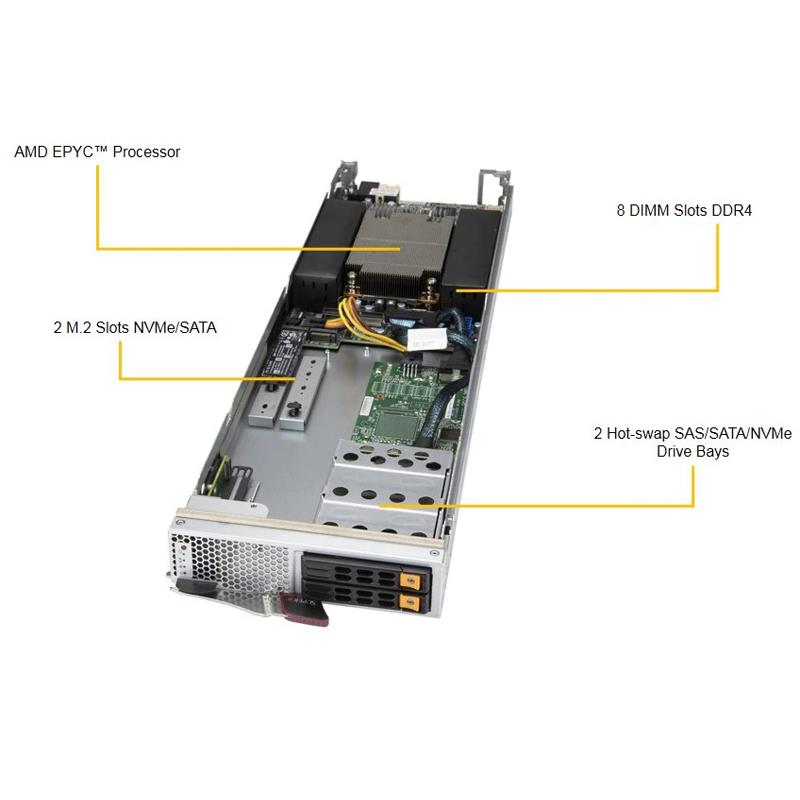

Single-Socket Blade AMD SP3 Rome/Milan, 2x M.2 slots, 2x SAS/U.2 drive bays, dual 25G network ports
This product is no longer available.
1. 100 CPUs per 42U Rack
2. Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
3. TDP up to 280W
4. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz LRDIMM
5. 2 Hot-plug 2.5" NVMe/SATA3 drive bays; 2 PCI-E x4 M.2
6. Dual 25G onboard
7. IPMI 2.0, KVM over IP, Virtual Media over LAN
8. Graphics: Aspeed AST2500 BMC
Extra Specifications for Supermicro SBA-4119S-T2N Single-Socket Blade AMD SP3 Rome/Milan
| Motherboard | ||

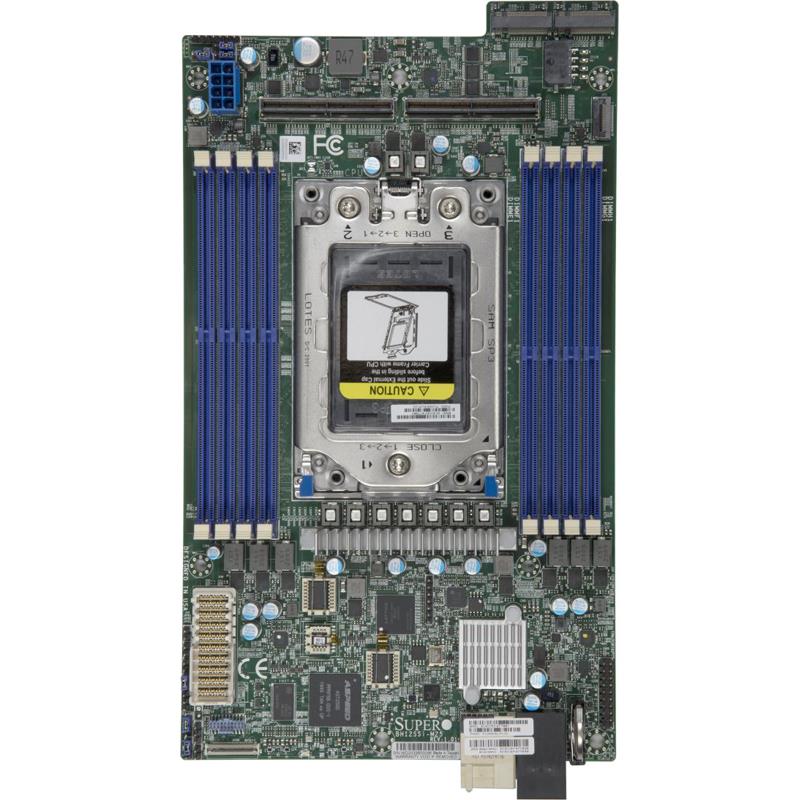

| Motherboard | Super BH12SSi-M25 | |
| Processor/Cache | ||
| CPU | Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer) | |
| Socket SP3 | ||
| Support CPU TDP up to 280W | ||
| Cores | Up to 64 Cores | |
| System Memory | ||
| Memory Capacity | 8 DIMM slots | |
| Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM | ||
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Dual 25G onboard via Mellanox CX4 | |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| Graphics | Aspeed AST2500 BMC | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| Dimensions | ||
| Height | 6.5" | |
| Width | 1.75" | |
| Depth | 23.5" | |
| Weight | 9.5 lbs (4.3 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| Drive Bays | ||
| Hot-swap | 2 Hot-Plug 2.5" NVMe/SATA3 drive bays | |
| M.2 | 2 PCI-E x4 M.2 | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-BH12SSi-M25 | 1 | Super BH12SSi-M25 Motherboard | |
| Motherboard / Chassis | MCP-680-41006-0N | 1 | 4U 10 SuperBlade Processor Blade chassis | |
| Add-on Card / Module | AOM-BPNIO-SNEA-P | 1 | AOM card for 4U SuperBlade, 2xSATA/NVMe, RoHS,RoHS | |
| Add-on Card / Module | AOM-BPNIO-FPE-P | 1 | AOM-BPNIO-FPE, Front Control I/O module for SuperBlade,RoHS | |
| Hard Drive Tray | MCP-220-00170-0B | 2 | Black hot swap tool-less NVMe 2.5" HDD tray with orange button for SuperBlade use | |
| Air Shroud | MCP-310-41006-0N | 1 | 4U 10 SuperBlade AMD Tray Air Shroud - HDD | |
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Heat Sink | SNK-P1043V | $ 59.00 | 1 | 1U standard AMD vapor chamber Heat Sink | ||
| TPM security module(optional, not included) | AOM-TPM-9665V | $ 43.00 | 1 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9655V | $ 43.00 | 0 | TPM module (Vertical) TPM 1.2. | ||
| Networking | AOC-IBH-X4ES-B | $ 895.00 | 1 | Mezzanine card, InfiniBand EDR Single Port based on ConnectX-4 | ||
| Networking | AOC-B25G-X4D | 0 | 2-port 25GbE Mezzanine Card (Mellanox ConnectX-4 Lx EN) | |||
| Networking | AOC-IBH-X6HS-B | $ 1,549.00 | 0 | SuperBlade InfiniBand HDR one port Mezzanine card,Mellanox ConnectX-6,RoHS | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
