Supermicro SYS-110P-WTR 1U Barebone Single Intel Processor
• Virtualization
• Cloud Computing
• Enterprise Server
• Data Center Optimized
• Database Processing and Storage
1U Barebone Single Intel Scalable Xeon Processor WIO, supports up to 8 DIMMs DDR4-3200, 10x 2.5in hot-swap SATA with 4 NVMe/SATA hybrid bays, dual 10GbE network ports, 750W Redundant Power Supply (X12SPW-TF + CSE-116TS-R706WBP2)

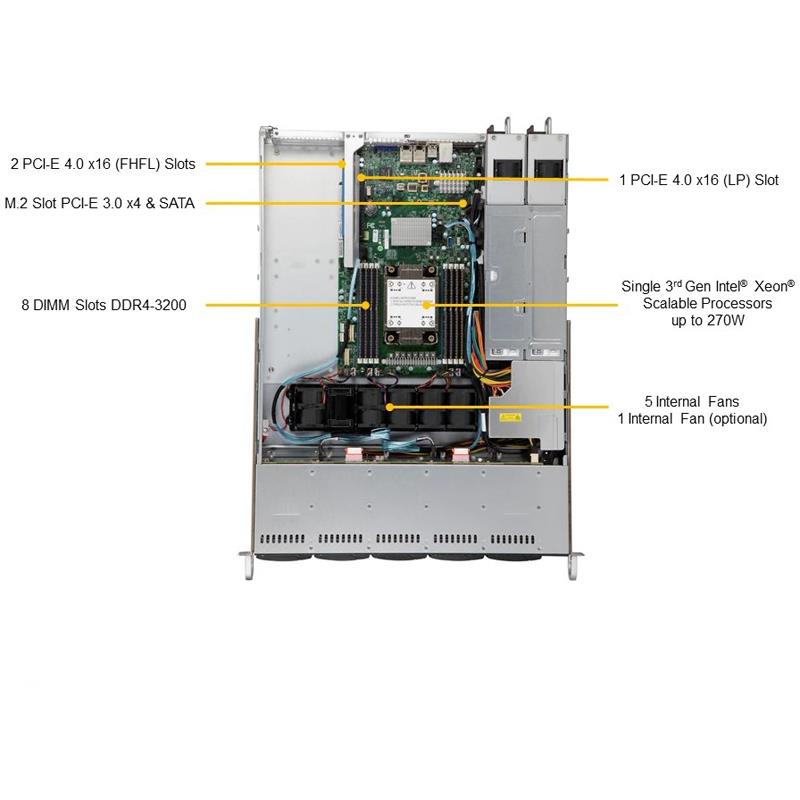

1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
3. 2 PCIe 4.0 x16 (FHFL) slots, 1 PCIe 4.0 x16 (LP) slot
4. Intel® Ethernet Controller X550 2x 10GbE RJ45
5. 10x hot-swap 2.5'' SATA3 drive bays with 4 hybrid NVMe/SATA drive bays, SAS3 with additional SAS controller card; Onboard 1x NVMe/SATA M.2
6. Redundant Platinum 750W Power Supply
Extra Specifications for Supermicro SYS-110P-WTR 1U Barebone Single Intel Processor
Motherboard | ||
Motherboard | Super X12SPW-TF | |
Processor | ||
CPU | Support CPU TDP 270W | |
Single Socket P+ (LGA 4189) | ||
Support Intel® 3rd Gen Xeon® Scalable Processors | ||
Cores | Up to 40C/80T; Up to 60MB Cache | |
System Memory | ||
Memory | Intel® Optane™ persistent memory 200 series | |
Memory Capacity: 8 DIMM slots | ||
Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM | ||
Up to 2TB: 8x 256 GB DRAM | ||
Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem | ||
Memory Voltage | 1.2 V | |
Error Detection | Yes | |
On-Board Devices | ||
NVMe | NVMe; RAID 0/1/5/10 support (*VROC HW key is required) | |
SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
Chipset | Intel® C621A | |
Network Connectivity | 2x 10GbE BaseT with Intel® X550 | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output | ||
SATA | 10 SATA (6Gbps) port(s) | |
LAN | 1 RJ45 Dedicated IPMI LAN port | |
2 RJ45 10GBase-T LAN ports | ||
USB | 3 USB port(s) (2 headers; 1 Type A) | |
2 USB 2.0 port(s) (2 rear) | ||
4 USB 3.2 Gen 1 port(s) (2 front; 2 rear) | ||
Video | 1 VGA 2 port(s) | |
Serial Port | 2 COM Port(s) (1 header; 1 rear) | |
DOM | 2 Super DOM (Disk on Module) port with built-in power | |
System BIOS | ||
BIOS Type | AMI 32MB SPI Flash EEPROM | |
Management | ||
Software | NMI | |
KVM with dedicated LAN | ||
Redfish API | ||
Intel® Node Manager | ||
SUM | ||
SSM | ||
SPM | ||
IPMI2.0 | ||
Supermicro Out of Band (OOB) License | ||
Power Configurations | ACPI/APM Power Management | |
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
7+1 Phase-switching voltage regulator | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 1U Rackmount | |
Model | CSE-116TS-R706WBP4 | |
Dimensions and Weight | ||
Height | 1.7" (43mm) | |
Width | 17.2" (437mm) | |
Depth | 23.5" (597mm) | |
Package | 8" (H) x 24" (W) x 32" (D) | |
Weight | Net Weight: 25 lbs (11.34 kg) | |
Gross Weight: 38 lbs (17.24 kg) | ||
Available Color | Black | |
Front Panel | ||
Buttons | UID button | |
Power On/Off | ||
LEDs | Power status | |
System information | ||
Device Activity | ||
LAN 1 Activity | ||
LAN 2 Activity | ||
Drive Bays / Storage | ||
Drive Bays | 10x 2.5" SATA drive bays (4x 2.5" NVMe hybrid) | |
M.2 | M-key, 2280, 22110 | |
1x PCIe 3.0 x 4 and SATA | ||
System Cooling | ||
Fans | 1 AOC cooling Fan(s) (optional) | |
5 counter-rotation PWM 40x40x56mm Fan(s) | ||
Power Supply | ||
Dimension (W x H x L) | 54.5 x 40.25 x 320 mm | |
Output Type | Gold Finger Connector | |
Certification | Platinum Level | |
Total Output Power | 750W | |
AC Input | 750W: 100-240Vac / 3.8A-8A / 50-60Hz | |
+12V | Max: 62A / Min: 0.5A | |
5V SB | Max: 3A / Min: 0A | |
Operating Environment | ||
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Product SKUs | ||
Product SKUs | SYS-110P-WTR | |
Expansion Slots | ||
PCI-Express (PCIe) | 2 PCIe 4.0 x16 FHFL slot(s) | |
1 PCIe 4.0 x16 LP slot(s) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X12SPW-TF | 1 | Super X12SPW-TF Motherboard | |
Motherboard / Chassis | CSE-116TS-R706WBP4 | 1 | 1U Chassis | |
Backplane | BPN-SAS3-LB16A-N10 | 1 | 1U 10-Slot SFF Backplane Supports 10xSAS3/SATA3/NVMe4 Storag | |
Cable | CBL-SAST-1234A-100 | 1 | SlimSAS x4 (STR) to 4x SATA,65CM,100 OHM,RoHS | |
Cable | CBL-SAST-1285-100 | 2 | Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R | |
Cable | CBL-0335L | 1 | FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF | |
Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
Fan | FAN-0141L4 | 5 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan | |
Manual | MNL-2265-QRG | 1 | 110P-WTR Quick Reference Guide | |
Riser Card | RSC-W-66G4 | 1 | 1U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS | |
Riser Card | RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCIe 4.0 x16 slot,HF,RoHS | |
Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
Heatsink / Retention | SNK-P0077P | 1 | 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms | |
*Power Supply | PWS-706P-1R | 2 | 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF | |
*Power Supply | MCP-250-00009-0N | 1 | SC113 Redundant Power Distributor Cover | |
*Power Distributor | PDB-PT112-S2424 | 1 | WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424 | |
*Front Panel | FPB-FP116-DU3 | 1 | Front control board with two USB 3.0 for SC116/SC119X | |
*Parts | MCP-120-00029-0N | 2 | Blank FH L bracket without SCSI cutout for SC815,823 | |
*Parts | MCP-120-00030-0N | 1 | Blank LP L-bracket (1 raw of capsule hole) | |
*Drive Tray(s) | MCP-220-00047-0B | 10 | Black gen 3rd hot-swap 2.5inch HDD tray | |
*Rear Window | MCP-240-00098-0N | 1 | WIO rear window for SC113,SC116, SC815 Redundant PWS | |
*Rail Set | MCP-290-00016-0N | 1 | 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N | |
*Rail Set | MCP-290-00063-0N | 1set | Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH | |
*Air Shroud | MCP-310-19002-0N | 1 | SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB | |
*Fan Holder | MCP-320-00027-0B | 24 | Plastic pin for 40x28, 40x56 fan | |
*Fan Holder | MCP-320-00028-0B | 1 | Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116 | |
*Fan Holder | MCP-340-00035-0B | 2 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Add-on Card for additional M.2 | AOC-SLG3-2H8M2 | $ 188.00 | 0 | Standard LP, PCIe 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1 | ||
CacheVault | BTR-CV3916-1U1 (For S3908/S3916) | 1 | CacheVault for Broadcom 3908/3916 with SuperCap mounting in 1U 40x56 fan tray | |||
CacheVault | BTR-CVPM05 • + MCP-240-00203-0N • (For S3908/S3916) | 1 | CacheVault for Broadcom 3908/3916 with SuperCap mounting bracket for PCIe location | |||
CacheVault | BTR-TFM8G-LSICVM02 + MCP-240-00203-0N • (For S3108) | 1 | CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCIe location | |||
CacheVault | BTR-CV3108-1U1 (For S3108) | 1 | CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray | |||
Cooling Fan | FAN-0141L4 • | 1 | 40x40x56 mm, 20.5K RPM / 17.6K RPM, Counter-rotating Fan | |||
Front Bezel | MCP-210-11601-0B | $ 31.00 | 1 | Black Front Bezel | ||
Inlet Thermal Sensor | MCP-280-00033-0N | $ 31.50 | 1 | Universal Thermal sensor kit with 80cm I2C cable | ||
Intel VROC RAID Key for NVMe | AOC-VROCSTNMOD | $ 176.00 | 1 | Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10 | ||
Intel VROC RAID Key for NVMe | AOC-VROCPREMOD | $ 344.50 | 1 | Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5 | ||
Intel VROC RAID Key for NVMe | AOC-VROCINTMOD | 1 | Intel SSD Only Upgrade module; RAID 0/1/10/5 | |||
NVMe Cable(s) | CBL-SAST-1231-85 | $ 44.00 | 0 | Slimline x8 (STR) to Slimline x8 (STR),INT,30CM, 85 OHM | ||
NVMe Drive Try(s) | MCP-220-00167-0B • | 0 | Tool-less Hot-swap Gen-3 NVMe drive tray, Orange tab, Black | |||
Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
Storage Control Card and Cable(s) | AOC-S3916L-H16iR-32DD + 2x CBL-SAST-1261-100 • | 1 | Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 32HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |||
Storage Control Card and Cable(s) | AOC-S3108L-H8iR-16DD | 1 | Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |||
Storage Control Card and Cable(s) | AOC-S3008L-L8I | $ 230.50 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10 | ||
Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1261-100 • | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |||
Storage Control Card and Cable(s) (HBA) | AOC-S3008L-L8E | $ 230.50 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA | ||
Storage Control Card and Cable(s) (HBA) | AOC-S3808L-L8IT + 1x CBL-SAST-1261-100 • | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA | |||
Storage Control Card and Cable(s) (HBA) | AOC-S3816L-L16IT + 2x CBL-SAST-1261-100 • | 1 | Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA | |||
TPM | AOM-TPM-9670V-S-O • | 1 | TPM 2.0, vertical form factor, provisioned for server | |||
TPM | AOM-TPM-9671V-S-O | 1 | TPM 1.2, vertical form factor, provisioned for server |
