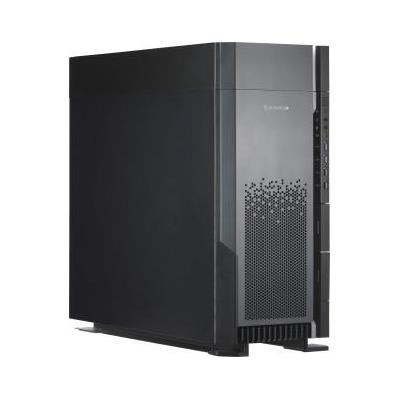

- Supermicro AS-5014A-TT Tower Barebone for AMD Ryzen Threadripper A+ SuperWorkstation
Supermicro AS-5014A-TT Tower Barebone for AMD Ryzen Threadripper A+ SuperWorkstation
• Media and Entertainment Content Creation
• Product Design and Engineering Simulation
• AI and Deep Learning
Tower Barebone for AMD Ryzen Threadripper PRO 3000WX, Single Socket, support up to 2TB ECC Registered Memory in 8x DIMM slots, 4x fixed 3.5in/2.5in SATA drive bays, 2x 2.5in fixed front drive bays, 4x M.2 slots (M12SWA-TF + CSE-GS7A-2000B) - AS -5014A-TT
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum CPU, 2 DIMMs, and 1 HDS/HDD).
1. AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
2. 8 DIMMs; up to 2TB Registered ECC DDR4 3200-MHz Memory
3. 6 PCI-E 4.0 x16 slots M.2 Interface: 4 PCI-E 4.0 x4, RAID 0, 1, 5 & 10 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key U.2 Interface : 2 U.2 sockets (Software RAID 0,1)
4. 1x 10GBase-T LAN port, 1x 1GbE LAN port (shared with IPMI)
5. 4 fixed internal 3.5"/2.5" SATA drive bays, 2 fixed front 2.5" SATA drive bays, 4 M.2
6. 1 VGA port (dedicated for IPMI)
7. 7.1 HD Audio
8. 2000W Platinum Level Power Supply
Extra Specifications for Supermicro AS-5014A-TT Tower Barebone for AMD Ryzen Threadripper A+ SuperWorkstation
| System Memory | ||
| Memory Capacity | 8 DIMM slots | |
| 8-channel memory bus | ||
| Supports up to 2TB Registered ECC DDR4 3200-MHz SDRAM | ||
| On-Board Devices | ||
| Chipset | AMD WRX80 | |
| Network Controllers | 10G LAN: Single LAN via Marvel AQC113C 10G Ethernet Controller | |
| 1GbE LAN: Single LAN with Intel® i210AT Enternet Controller (shared with IPMI) | ||
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Audio | 7.1 channel HD Audio by Realtek LC4050H + ALC1220 | |
| Input / Output | ||
| Audio | 7.1 HD Audio with optical S/PDIF | |
| SATA | 4 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 10GBase-T Ethernet LAN port | |
| 1 RJ45 GbE Ethernet LAN port (shared with IPMI) | ||
| USB | 1 USB 3.2 Gen2x2 port (Type C, 20Gbps) | |
| 5 USB 3.2 Gen2 ports (4 Type A, 1 front Intel Type C header, 10Gbps) | ||
| 5 USB 3.2 Gen1 ports (3 Type A, 1 via header) | ||
| 2 USB 2.0 via header | ||
| Video | 1 VGA port (dedicated for IPMI) | |
| Serial Port / Header | 1 COM port (rear) | |
| TPM | 1 TPM 2.0 Header | |
| System BIOS | ||
| BIOS Type | 256Mb SPI Flash with AMI BIOS | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| LED On/Off button | ||
| LEDs | Power LED | |
| Ports | 1 headphone jack | |
| 1 audio jack | ||
| 1 USB 3.2 Port (Type C) | ||
| 2 USB 3.2 Ports (Type A) | ||
| 2 USB 2.0 Ports | ||
| System Cooling | ||
| Water Cooling | Optional high-performance closed-loop water cooling for CPU | |
| Fans | 1x 12cm rear exhaust fan | |
| 2x 12cm front cooling fans | ||
| 3x 12cm top cooling fans (optional) | ||
| Power Supply | ||
| Power Supply | 2000W PS/2 Multi-Output Power Supply | |
| Certification | Platinum Certified | |
| Total Output Power and Input | 1200W with Input 100 - 115Vac | |
| 1500W with Input 115 - 200Vac | ||
| 2000W with Input 200 - 264Vac | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (W x H x L) | 150 x 86 x 200 mm | |
| +5V | Max: 25A / Min: 0.1A | |
| +12V | Max: 100A / Min: 0.1A (100-115Vac) | |
| Max: 125A / Min: 0.1A (115-120Vac) | ||
| Max: 166.6A / Min: 0.1A (200-264Vac) | ||
| +3.3V | Max: 25A / Min: 0A | |
| 5VSB | Max: 4A / Min: 0A | |
| -12V | Max: 0.5A / Min: 0A | |
| Output Type | 24pin ATX | |
| Motherboard | ||
| Motherboard | Super M12SWA-TF | |
| Processor/Cache | ||
| CPU | Socket sWRX8/SP3 | |
| Supports CPU TDP up to 280W | ||
| Single AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series processor | ||
| Cores | Up to 64 Cores | |
| Management | ||
| Software | Watchdog | |
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Chassis | ||
| Form Factor | Full Tower | |
| Optional Rackmount Kit (6U) | ||
| Model | CSE-GS7A-2000B | |
| Dimensions and Weight | ||
| Height | 21.06" (535mm) | |
| Width | 8.74" (222mm) | |
| Depth | 22.56" (573mm) | |
| Expansion Slots | ||
| PCI-Express | 6 PCI-E 4.0 x16 slots | |
| M.2 | Key: M-Key | |
| Form Factor: 2280, 22110 | ||
| M.2 Interface: 4 PCI-E 4.0 x4 | ||
| U.2 | Interface: 2 U.2 Sockets | |
| Software RAID 0,1 support | ||
| Drive Bays | ||
| Fixed | 4 internal fixed 3.5"/2.5" SATA3 drive bays | |
| 2 front fixed 2.5" SATA3 drive bays | ||
| Peripheral Bay(s) | 2x 5.25" drive bays | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | AS -5014A-TT (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-M12SWA-TF | 1 | Super M12SWA-TF Motherboard | |
| Motherboard / Chassis | CSE-GS7A-2000B | 1 | Full Tower/6U Rackmountable Chassis | |
| Power Supply | PWS-2K01-PQ | 1 | PS2 2000W Multi-output PLATINUM power supply,RoHS | |
| Fan | FAN-0221L4 | 2 | 12cm (2200rpm) cooling Fan | |
| Fan | FAN-0222L4 | 1 | 12cm (6400rpm) cooling Fan | |
| Cable | CBL-0044L | 4 | 57.5CM SATA FLAT S-S PBF | |
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Fan | FAN-0124L4 | $ 36.00 | 0 | 12cm (1850rpm) cooling Fan | ||
| Fan | FAN-0221L4 | $ 42.50 | 0 | 12cm (2200rpm) cooling Fan | ||
| Fan | FAN-0222L4 | $ 68.50 | 0 | 12cm (6400rpm) cooling Fan | ||
| CPU Heatsink | SNK-P0066AP4 | $ 163.00 | 0 | High Performance 4.5U Active CPU Heat Sink for AMD Socket SP3 Platform | ||
| HDD Bracket | MCP-220-73102-0N | $ 20.50 | 0 | 3.5" to 2.5" SSD/HDD Adapter Tray | ||
| Rail | MCP-290-GS706-0N | $ 325.50 | 0 | GS7 6U Rail Conversion Kit for rack mount (need to add MCP-290-00057-0N). | ||
| Rail | MCP-290-00057-0N | $ 103.00 | 0 | RAIL SET, QUICK/QUICK For 17.2"W | ||
| Power Cord | CBL-PWCD-0240-IS | 0 | Power cord C19 to CEE 7/7 (EU/KR) | |||
| Power Cord | CBL-PWCD-0445 | 0 | Power cord IEC60320, LP-53 to LS-19 (JPN) | |||
| Power Cord | CBL-0238L | 0 | Power cord C19 to AS 3112 (AU) | |||
| Liquid Cooling | SNK-P3045A4 | $ 231.00 | 0 | 1U Closed Loop Liquid Cooling Module for H12 AMD SP3 CPU | ||
| Intrusion switch | MCP-290-GS708-0N | 0 | GS7 Chassis Intrusion Switch | |||
| TPM security module | AOM-TPM-9665V | $ 43.00 | 0 | TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; |
