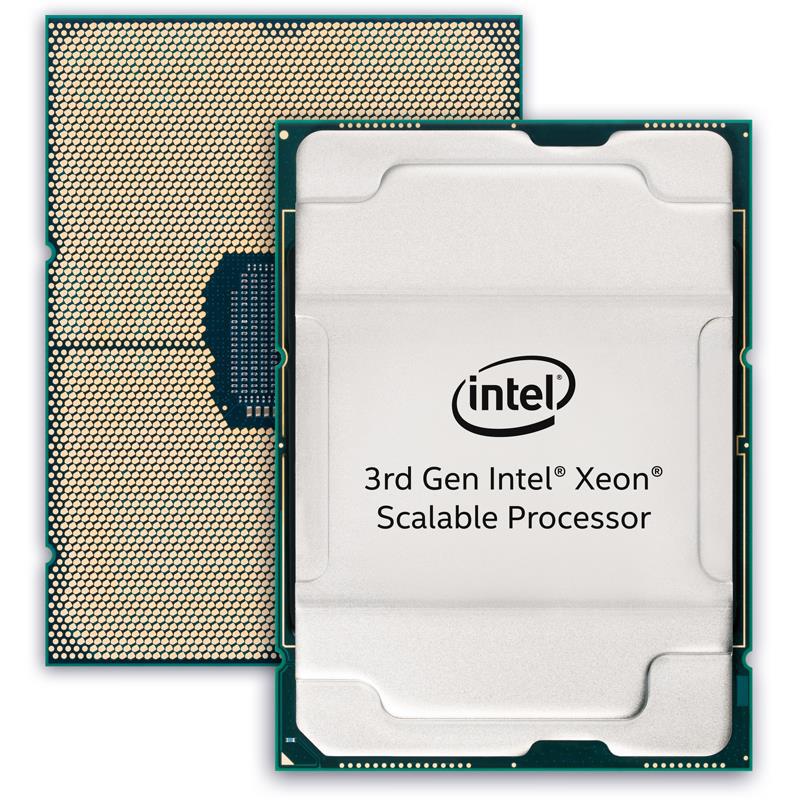

Intel CD8068904582501 Xeon Gold 6330N 2.20GHz 28-Core Processor 3rd Generation - Ice Lake
Enabling greater efficiencies and lower TCO
Intel Deep Learning Boost, now with bfloat16
Empowering transformation in the data-centric era
2.20 GHz Frequency, 28 Core/56 Thread, 42 MB Cache
Processor 2.20GHz Xeon Gold 6330N 28-Core (56 Threads), FCLGA4189 Socket, 42MB, 10nm, 165W, 2P, Tray
Faster time to value with Intel Select Solutions.
Strong, capable platforms for the data-fueled enterprise.
Breakthrough HPC and high-performance data analytics innovation.
Next-generation platform for cloud-optimized, 5G-ready networks, and next-generation virtual networks.
Extra Specifications for Intel CD8068904582501 Xeon Gold 6330N 2.20GHz 28-Core Processor 3rd Generation - Ice Lake
Main Specifications | ||
Device Type | Processor | |
Processor Number | 6330N | |
Clock Speed | 2.20 GHz | |
Max Turbo Speed | 3.40 GHz | |
Multi-Core Technology | 28-core | |
Number of Threads | 56 | |
QPI/UPI | Number of UPI Links: 3 | |
Manufacturing Process | 10 nm | |
Product Collection | 3rd Generation Intel Xeon Scalable Processor | |
Code Name | Products formerly Ice Lake | |
Vertical Segment | Server | |
Processor | ||
Cache | 42 MB | |
Thermal | ||
Design Power | 165 W | |
Memory Specifications | ||
Max Memory Size (dependent on memory type) | 6 TB | |
Memory Types | DDR4-2667 | |
Maximum Memory Speed | 2667 MHz | |
Max # of Memory Channels | 8 | |
ECC Memory Supported | Yes | |
Intel Optane DC Persistent Memory Supported | Yes | |
Expansion Options | ||
Scalability | 2S | |
PCI Express Revision | 4.0 | |
Max # of PCI Express Lanes | 64 | |
Package Specifications | ||
Sockets Supported | FCLGA4189 | |
Case Temperature | 86°C | |
Package Size | 77.5x56.5mm | |
Miscellaneous | ||
Features | Intel Speed Select Technology – Core Power, Intel Speed Select Technology – Turbo Frequency, Intel Deep Learning Boost (Intel DL Boost), Intel Speed Select Technology - Base Frequency, Intel Resource Director Technology (Intel RDT), Intel Speed Shift Technology, Intel Turbo Boost Technology 2.0, Intel Hyper-Threading Technology, Intel Virtualization Technology (VT-x), Intel Virtualization Technology for Directed I/O (VT-d), Intel VT-x with Extended Page Tables (EPT), Intel Transactional Synchronization Extensions, Intel 64, Instruction Set Extensions: Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512, # of AVX-512 FMA Units: 2, Intel Volume Management Device (VMD) | |
Security Features | ||
Security Features | Intel AES New Instructions, Intel Software Guard Extensions (Intel SGX) Yes with Intel SPS, Intel Trusted Execution Technology, Execute Disable Bit, Intel Run Sure Technology, Mode-based Execute Control (MBE), Intel Total Memory Encryption |
