- Intel CD8068904571601 Xeon Gold 6354 3.0GHz 18-Core Processor 3rd Generation - Ice Lake

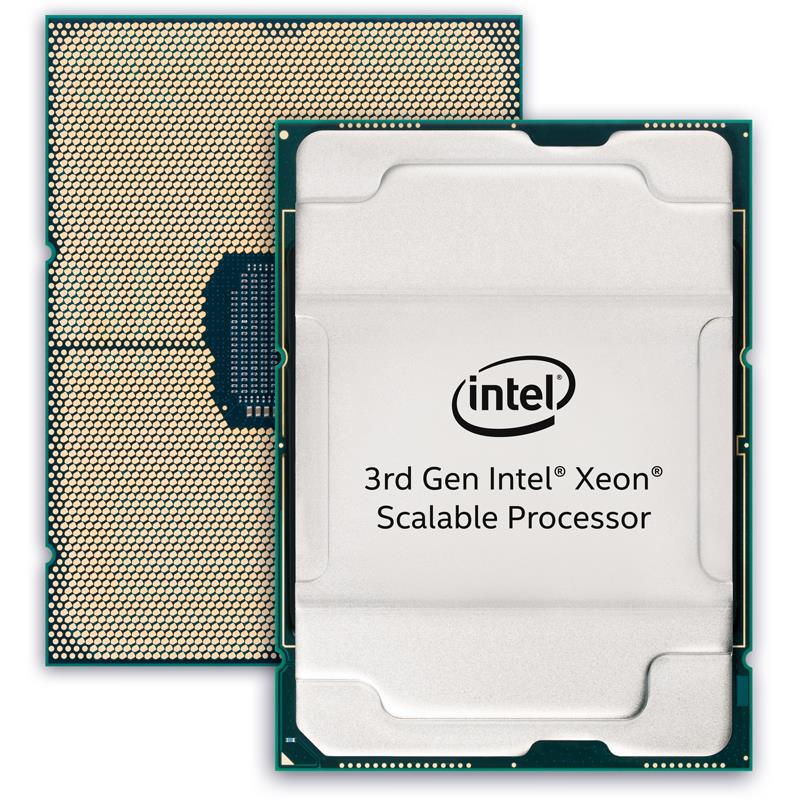

Intel CD8068904571601 Xeon Gold 6354 3.0GHz 18-Core Processor 3rd Generation - Ice Lake
Enabling greater efficiencies and lower TCO
Intel Deep Learning Boost, now with bfloat16
Empowering transformation in the data-centric era
3.0 GHz Frequency, 18 Core/36 Thread, 39 MB Cache
Processor 3.0GHz Xeon Gold 6354 18-Core (36 Threads), FCLGA4189 Socket, 39MB, 10nm, 205W, 2P, Tray
Faster time to value with Intel Select Solutions.
Strong, capable platforms for the data-fueled enterprise.
Breakthrough HPC and high-performance data analytics innovation.
Next-generation platform for cloud-optimized, 5G-ready networks, and next-generation virtual networks.
Extra Specifications for Intel CD8068904571601 Xeon Gold 6354 3.0GHz 18-Core Processor 3rd Generation - Ice Lake
| Main Specifications | ||
| Device Type | Processor | |
| Processor Number | 6354 | |
| Clock Speed | 3.00 GHz | |
| Max Turbo Speed | 3.60 GHz | |
| Multi-Core Technology | 18 Core | |
| Number of Threads | 36 | |
| QPI/UPI | Number of UPI Links: 3 | |
| Manufacturing Process | 10 nm | |
| Product Collection | 3rd Generation Intel Xeon Scalable Processor | |
| Code Name | Products formerly Ice Lake | |
| Vertical Segment | Server | |
| Processor | ||
| Cache | 39 MB | |
| Thermal | ||
| Design Power | 205 W | |
| Memory Specifications | ||
| Max Memory Size (dependent on memory type) | 6 TB | |
| Memory Types | DDR4-3200 | |
| Maximum Memory Speed | 3200 MHz | |
| Max # of Memory Channels | 8 | |
| ECC Memory Supported | Yes | |
| Intel Optane DC Persistent Memory Supported | Yes | |
| Expansion Options | ||
| Scalability | 2S | |
| PCI Express Revision | 4.0 | |
| Max # of PCI Express Lanes | 64 | |
| Package Specifications | ||
| Sockets Supported | FCLGA4189 | |
| Case Temperature | 77°C | |
| Package Size | 77.5x56.5mm | |
| Miscellaneous | ||
| Features | Intel Speed Select Technology – Core Power, Intel Speed Select Technology – Turbo Frequency, Intel Deep Learning Boost (Intel DL Boost), Intel Speed Select Technology - Base Frequency, Intel Resource Director Technology (Intel RDT), Intel Speed Shift Technology, Intel Turbo Boost Technology 2.0, Intel Hyper-Threading Technology, Intel Virtualization Technology (VT-x), Intel Virtualization Technology for Directed I/O (VT-d), Intel VT-x with Extended Page Tables (EPT), Intel Transactional Synchronization Extensions, Intel 64, Instruction Set Extensions: Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512, # of AVX-512 FMA Units: 2, Intel Volume Management Device (VMD) | |
| Package Type | OEM, Tray | |
| Security Features | ||
| Security Features | Intel AES New Instructions, Intel Software Guard Extensions (Intel SGX) Yes with Intel SPS, Intel Trusted Execution Technology, Execute Disable Bit, Intel Run Sure Technology, Mode-based Execute Control (MBE), Intel Total Memory Encryption | |
| Warranty: | 1 year |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Intel |
| Type of Support: | FULL |
| Phone No.: | 916-377-7000 |
| URL: | Click here for Manufacturer Website |
