Supermicro SYS-610U-TNR Ultra 1U Barebone Dual Intel Xeon Scalable Processor Up to 8TB DRAM SATA3, NVMe Dual 10GbE
• Virtualization
• HPC
• Cloud Computing
• High End Enterprise Server
• Software Defined Storage
• Application Tier Service Provider
• 5G/Telco
Barebone 1U Rackmount SuperServer Dual Intel Xeon Scalable, Intel C621A chipset, Up to 8TB in 32 DIMM Slots, SATA3 and NVMe RAID support, 4x 3.5in NVMe,SATA,SAS drive bays, 2x 10GbE BaseT LAN Ports, 1200W Redundant Power Supply (CSE-819U3TS-R1K22P-T + X12DPU-6)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 1 Storage Device HDD/HDS/M.2, and 1 NIC adapter*). *NIC adapter requirement includes either 1 Ultra Riser card with integrated NIC or 1 AOC-URG4N4 Ultra Riser card with 1 standard PCI-E NIC adapter.
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. Intel® C621A Chipset
3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
4. 2 PCIe 4.0 x16 (FH, 10.5"L) 1 PCIe 4.0 x16 (LP) 1 Internal PCIe 4.0 x16
5. Flexible networking options
6. 4x3.5" hot-swap hybrid NVMe/SATA/SAS drive bays
7. 8 heavy duty fans with optimal fan speed control
8. 1200W redundant Titanium level power supplies
Extra Specifications for Supermicro SYS-610U-TNR Ultra 1U Barebone Dual Intel Xeon Scalable Processor Up to 8TB DRAM SATA3, NVMe Dual 10GbE
| Motherboard | ||
| Motherboard | Super X12DPU-6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Dual Socket P+ (LGA-4189) | ||
| Support CPU TDP 270W * | ||
| Cores | Up to 40C/80T; Up to 60MB Cache | |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory | Intel® Optane™ persistent memory 200 series | |
| Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM | ||
| Memory Capacity: 32 DIMM slots | ||
| Up to 8TB: 32x 256 GB DRAM | ||
| Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| NVMe | NVMe (16GT/s); RAID 0/1/5/10 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | No NIC option supported | |
| 2x 10GbE BaseT with Intel® X710-AT2 (optional) OR | ||
| 2x 10GbE BaseT and 2x 10GbE SFP+ with Intel® X710-TM4 (optional) | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||

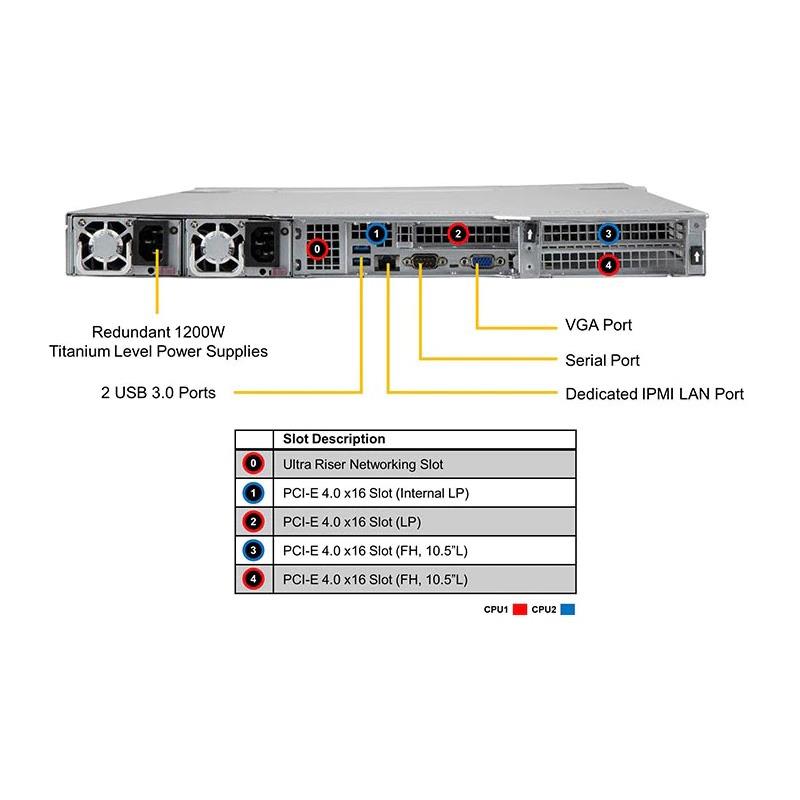

| Input / Output | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| Supermicro Out of Band (OOB) License (Included with Server) | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7 +1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-819U3TS-R1K22P-T | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29.7" (754mm) | |
| Package | 7.99" (H) x 23.81" (W) x 37.4" (D) | |
| Weight | Net Weight: 29.5 lbs (13.4 kg) | |
| Gross Weight: 44.5 lbs (20.2 kg) | ||
| Available Color | Black Front & Silver Body | |

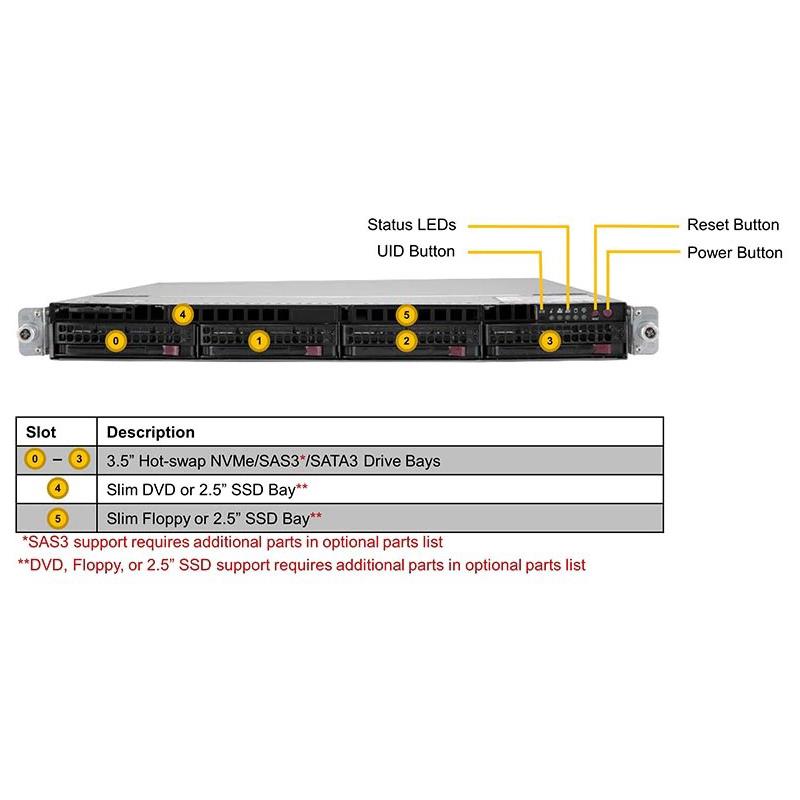

| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| LAN1 activity | ||
| System information (overheat/UID) | ||
| LAN2 acticity | ||
| Drive Bays / Storage | ||
| Hot-swap | 4x 3.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe hybrid) (SAS/NVMe support requires additional parts. Please see the Optional Parts list.) | |
| System Cooling | ||
| Fans | 8x 4cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 2 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| AC Input | 800W: 100-127Vac / 50-60Hz | |
| 1200W: 200-240Vac / 50-60Hz | ||
| 1200W: 200-240Vdc (For CCC Only) | ||
| +12V | Max: 66.7A / Min: 0A (100Vac-127Vac) | |
| Max: 100A / Min: 0A (200Vac-240Vac) | ||
| Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only) | ||
| 12V SB | Max: 2.1A / Min: 0A | |
| Output Type | AC-Input | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-610U-TNR | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 LP slot(s) | |
| 2 PCIe 4.0 x16 FH, 10.5"L slot(s) | ||
| 1 PCIe 4.0 x16 Internal LP slot(s) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12DPU-6 | 1 | Super X12DPU-6 Motherboard | |
| Motherboard / Chassis | CSE-819U3TS-R1K22P-T | 1 | 1U Chassis | |
| Backplane | BPN-SAS3-815TQ-N4 | 1 | 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices | |
| Cable | CBL-PWEX-0650 | 1 | 8 Pin Female to 2x RA(Right Angle) Big 4 Pin Female Power | |
| Cable | CBL-SAST-1256-100 | 1 | Slimline X4 (RE) to 4x SATA,INT,56/46/46/56CM,SB 56CM,1 | |
| Cable | CBL-CDAT-0667 | 1 | FRONT PANEL CONTROL CABLE 20 PIN TO 20 PIN W/TUBE, 85CM, 28A | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Air Shroud | MCP-310-11907-0N | 1 | CSE-119UH3 Plastic Air Shroud (right side) for X12DPU | |
| Air Shroud | MCP-310-11908-0N | 1 | CSE-119UH3 Plastic Air Shroud (left side) for X12DPU | |
| Air Shroud | MCP-310-81905-0B | 1 | Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH | |
| Riser Card | RSC-W-66G4 | 1 | 1U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS | |
| Riser Card | RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCIe 4.0 x16 slot,HF,RoHS | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0077P | 2 | 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms | |
| *Power Supply | PWS-1K22A-1R | 2 | 1U 800W/1200W Redundant Titanium w/PMBus power supply, W73.5xH40xL203mm, C14 inlet | |
| *Peripheral Drive | CSE-PT93L-B | 1 | Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS | |
| *Front Panel | FPB-FP815U | 1 | 815 UIO front control board (U) | |
| *Front Panel | MCP-280-00034-0N | 1 | Universal Thermal sensor kit with 40cm I2C cable | |
| *Front Panel | FPB-TMP-002 | 1 | Thermal Sensor board with 40cm I2C cable | |
| *Parts | MCP-160-11901-0B | 1 | 1U Ultra Mylar cable channel for X12 | |
| *Parts | MCP-160-11902-0B | 1 | 1U Ultra FP1 cable protective Mylar | |
| *Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| *Rear Window | MCP-240-81916-0N | 1 | Ultra I/O Rear window for SC819U, 119U tool-less chassis (No opening) | |
| *Rail Set | MCP-290-00112-0N | 1set | Inner rail, extension, long (quick) for 1U 17.2W chassis | |
| *Fan Holder | MCP-320-00056-0B | 32 | 40X56 rubber fan pin for SC819U, SC119U,RoHS/REACH | |
| *Fan | FAN-0210L4 OR | 8 | 40x40x56 mm, 29.5K-25.5K RPM, Counter-rotating Fan, RoHS | |
| *Fan | FAN-0216L4-2 | 0 | 40x40x56 mm, 31K-26.6K RPM, Counter-rotating Fan, Non-hot-swappable |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 1U Cable Management Arm | MCP-290-00165-0N | 1 | 1U Supermicro Cable Management Arm 3rd Gen | |||
| Add-on card for M.2 support | AOC-SLG3-2H8M2-O | 0 | 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS | |||
| CacheVaults | BTR-CVPM05 + BKT-BBU-BRACKET-05 | 0 | CacheVault for Broadcom 3908/3916 with Supercap | |||
| CacheVaults | BTR-CV3108-1U1 | $ 324.50 | 0 | CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray | ||
| Drive Tray | MCP-220-00138-0B • | 1 ~ 4 | Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab (For NVMe) | |||
| Drive Tray | MCP-220-00118-0B • | 1 ~ 4 | Black gen-5.5 tool-less 3.5-to-2.5 drive tray, Red tab (For SATA/SAS) | |||
| DVD-ROM/DVD-RW | DVM-TEAC-DVD-SBT5 | $ 84.50 | 1 | BLACK TEAC SLIM DVD SATA DRIVE, HF, RoHS | ||
| DVD-ROM/DVD-RW | DVM-TEAC-DVDRW-SBT5 | $ 101.00 | 1 | BLACK TEAC SLIM DVD-RW SATA DRIVE, HF, RoHS | ||
| DVD-ROM/DVD-RW Installation Kit | MCP-220-81502-0N • + CBL-0161L + CBL-PWEX-0702 | 1 | Slim SATA DVD kit | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Hot-Swap 2.5" Slim HDD Tray (DVD Slot) | MCP-220-81506-0N • & CBL-0161L & CBL-PWEX-0650 | 1 | 12G 2.5" Hot-swap Slim DVD Size Drive Kit w/Status LED | |||
| Hot-Swap 2.5" Slim HDD Tray (FDD Slot) | MCP-220-81504-0N • & CBL-0161L & CBL-PWEX-0650 | 1 | 12G 2.5" Hot-swap Slim Floppy Size Drive Kit w/Status LED | |||
| Intel® VROC RAID Key Options | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| Intel® VROC RAID Key Options | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 | ||
| Intel® VROC RAID Key Options | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Internal 2.5" Slim HDD Tray (DVD slot) | MCP-290-00036-0B & CBL-0484L & CBL-0080L • & CBL-PWEX-0650 | 1 | 12G 2.5" Internal Slim DVD Size Drive Kit | |||
| Internal 2.5" Slim HDD Tray (FDDD slot) | MCP-220-83601-0B & CBL-0484L & CBL-0080L • & CBL-PWEX-0650 | 1 | 12G 2.5" Internal Slim Floppy Size Drive Kit | |||
| Internal Drive Tray for Two 2.5" Drives | CBL-PWEX-0650CBL-0080L • | 12 | Power Cable for Two internal 2.5" drives | |||
| Internal Drive Tray for Two 2.5" Drives | MCP-120-82916-0N | $ 90.00 | 1 | 2.5” Internal Drive Bay (Slim DVD Tray) | ||
| Internal Drive Tray for Two 2.5" Drives | CBL-0484L OrCBL-SAST-0654 OrCBL-SAST-0948 • | 211 | SATA3 S-S CableminiSAS(iPass) to 4 SATA CableminiSAS HD to 4 SATA Cable | |||
| Network Card(s) | AOC Compatibility Matrix | 0 | Standard Networking AOC Matrix | |||
| NVMe Support Cable Kit | CBL-KIT-610U-TNR-4 | $ 132.50 | 1 | 4 NVMe Cable Kit for X12 Ultra SYS-610U-TNR | ||
| Optional Storage Controller Card + Cable(s) | AOC-S3908L-H8iR-16DD-O + 1x CBL-SAST-1251-100 | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3808L-L8iT-O + 1x CBL-SAST-1251-100 | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-4; HBA | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3108L-H8iR-16DD + 1x CBL-SAST-0948 • | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3008L-L8i + 1x CBL-SAST-0948 • | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0,1,1E | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3008L-L8E+-O + 1x CBL-SAST-0948 • | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA + I2C | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3008L-L8E + 1x CBL-SAST-0948 • | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA | |||
| Power Supply | PWS-1K62A-1R • | 2 | 1U 1600W, Titanium Level, Redundancy, AC Input: 90 - 264 VAC/47-63Hz | |||
| Power Supply | PWS-1K30D-1R | $ 427.00 | 2 | 1U 1300W, Redundancy, DC Input: -48Vdc | ||
| Power Supply | PWS-2K08A-1R • | 2 | 1U 2000W, Titanium Level, Redundancy, AC Input: 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Trusted Platform Module Options | AOM-TPM-9671V-O | 1 | SPI Capable Vertical TPM 1.2 Module | |||
| Trusted Platform Module Options | AOM-TPM-9670V-O | 1 | SPI TPM 2.0 using SLB9670 | |||
| Trusted Platform Module Options | AOM-TPM-9670V-S-FIPS-P | 1 | AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS | |||
| Ultra Riser Card Options + Rear Window | AOC-URG4N4-m2TS + MCP-240-81915-0N | 1 | 1U Ultra Riser 2-port 25GbE SFP28, based on Mellanox CX-6 LX, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS | |||
| Ultra Riser Card Options + Rear Window | AOC-URG4N4-I4XTS-O + MCP-240-81911-0N | 1 | 1U Ultra Riser with 2-port 10GBase-T RJ45 & 2-port 10G SFP+, based on Intel Carlsville X710-TM4, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS | |||
| Ultra Riser Card Options + Rear Window | AOC-URG4N4-I2XT-O + MCP-240-81909-0N | 1 | 1U Ultra Riser with 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS | |||
| Ultra Riser Card Options + Rear Window | AOC-URG4N4-O | 1 | 1U Ultra Riser without NIC, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS |
