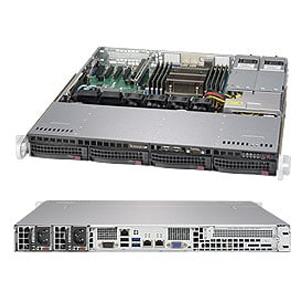

Supermicro SYS-5018R-MR 1U Barebone Single Intel Xeon E5-2600 Processor Up to 1TB LRDIMM SATA3 2 Gigabit Ethernet
Barebone 1U Rackmount SuperServer Single Intel Xeon E5-2600, Intel C612 chipset, Up to 1TB in DIMM Slots, SATA3, 4x 3.5in drive bays, 2x Gigabit Ethernet Ports, 400W Redundant Power Supply (CSE-813MFTQ-R407CB + X10SRi-F)
This product is no longer available.
1. Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2. Intel® C612 chipset
3. 4x 3.5" Hot-swap SATA3 drive bays
4.Up to 1TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 8x DIMM slots
5. 1x PCI-E 3.0 x16 slot
6. Intel® i350-AM2 Dual port GbE LAN
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. I/O ports: 1x VGA, 2x COM, 2x USB 3.0, 4x USB 2.0
9. 400W Redundant Power Supplies Platinum Level Certified
Extra Specifications for Supermicro SYS-5018R-MR 1U Barebone Single Intel Xeon E5-2600 Processor Up to 1TB LRDIMM SATA3 2 Gigabit Ethernet
| Product SKUs | ||
| Product SKUs | SuperServer 5018R-MR (Black) | |
| Motherboard | ||
| Motherboard | Super X10SRi-F | |
| Processor | ||
| CPU | Intel® Xeon® processor E5-2600 v4 † / v3, E5-1600 v4 † / v3 family (up to 145W TDP **) | |
| Single Socket R3 (LGA 2011) | ||
| Core / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| Note | † BIOS version 2.0 or above is required | |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support | ||
| System Memory | ||
| Memory Capacity | 8x 288-pin DDR4 DIMM slots | |
| Up to 1TB ECC 3DS LRDIMM | ||
| Up to 512GB ECC LRDIMM | ||
| Up to 256GB ECC RDIMM | ||
| Memory Type | 2400 † / 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | RAID 0, 1, 5, 10 support | |
| SATA3 (6Gbps) via C612 controller | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8201N PHY (dedicated IPMI) | ||
| Intel® i350-AM2 Dual Port Gigabit Ethernet | ||
| Video | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 10x SATA3 (6Gbps) ports | |
| LAN | 1x RJ45 Dedicated IPMI LAN port | |
| 2x RJ45 Gigabit Ethernet LAN ports | ||
| USB | 2x USB 3.0 ports (2 rear) | |
| 4x USB 2.0 ports (2 rear + 2 header) | ||
| Video | 1x VGA port | |
| Serial Port / Header | 1x internal header | |
| 1x Fast UART 16550 serial port | ||
| DOM | 2x Super DOM (Disk on Module) ports | |
| PC Health Monitoring | ||
| Voltage | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. | |
| FAN | Status monitor for speed control | |
| Status monitor for on/off control | ||
| Low noise fan speed control | ||
| Pulse Width Modulated (PWM) fan connectors | ||
| Total of 6 fan headers supporting up to 6 fans | ||
| 6 fans with tachometer status monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| I 2 C temperature sensing logic | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| LED | UID/Remote UID | |
| Suspend static indicator LED | ||
| System Information LED | ||
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| RoHS, Halogen Free | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-813MFTQ-R407CB | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 19.85" (503mm) | |
| Package | 8" (H) x 24" (W) x 28" (D) | |
| Weight | Gross Weight: 31.4 lbs (14.3 kg) | |
| Net Weight: 18.6 lbs (8.5 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Hard drive activity LED | ||
| 2x Network activity LEDs | ||
| Expansion Slots | ||
| PCI-Express | 1x PCI-E 3.0 x16 slot | |
| Drive Bays | ||
| Hot-swap | 4x 3.5" Hot-swap drive bays | |
| Peripheral Drives | ||
| Optional | Optional slim optical device bay, optional FDD/USB bay | |
| 2x 2.5" Fixed drives internal | ||
| Backplane | ||
| Backplane | SAS/SATA HDD Backplane (SAS support requires optional SAS controller) | |
| System Cooling | ||
| Fans | 4x 40x28mm 4-pin PWM Cooling Fans | |
| AC/DC240V Input Redundant Power Supplies | ||
| AC/DC240V Input Redundant Power Supplies | 400W 1U Redundant Power Supplies with PMbus | |
| Total Output Power | 400W | |
| Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
| Input | 100 - 240Vac / 6.0 - 3.0A / 50-60Hz | |
| 200 - 240Vdc / 3.4 - 3.2A (CCC Only) | ||
| +12V | Max: 33A / Min: 0.5A | |
| +5V sb | Max: 3A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| Certification | Platinum Level Certified | |
| System BIOS | ||
| BIOS Type | 8MB SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| DMI 2.3 | ||
| SMBIOS 2.3 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10SRi-F | 1 | Super X10SRi-F Motherboard | |
| Motherboard / Chassis | CSE-813MFTQ-R407CB | 1 | 1U Chassis | |
| Backplane | BPN-SAS-815TQ | 1 | 4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD | |
| Cable 1 | CBL-0157L | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG | |
| Cable 2 | CBL-0186L | 1 | SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG | |
| Air Shroud | MCP-310-19007-0N | 1 | SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB | |
| Manual | MNL-1605-QRG | 1 | SYS-5018R-M/MR, QRG,HF,RoHS/REACH | |
| Riser Card | RSC-RR1U-E16 | 1 | RSC-RR1U-E16 with PIC-E x16 output | |
| Heatsink / Retention | SNK-P0047PS | 1 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-407P-1R | 2 | AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH | |
| FAN | FAN-0154L4 | 4 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3.5" to 2.5" Converter Tray | MCP-220-00043-0N | $ 26.00 | 0 | Black Hot-swap Gen-4 2.5" to 3.5" HDD tray | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT5 | $ 84.50 | 1 | TEAC slim DVD-ROM SATA drive | ||
| DVD-ROM / DVD-RW | DVM-PLDS-DVDRW-SBT5 | $ 51.50 | 1 | PHILPS slim DVD-RW SATA drive | ||
| DVD-ROM Accessory | MCP-220-81502-0N | $ 28.50 | 1 | Slim SATA DVD mounting kit | ||
| Internal 2.5" HDD Tray (FDD slot) | MCP-220-83601-0B | $ 24.50 | 1 | Black FDD dummy tray support 1x 2.5" slim HDD | ||
| Internal 2.5" HDD Tray (DVD slot) | MCP-290-00036-0B | $ 19.50 | 1 | Black DVD dummy tray support 1x 2.5" slim HDD | ||
| Cable for internal HDD | CBL-0484L | $ 17.00 | 2 | 55cm 30AWG SATA straight to straigh cable | ||
| Cable for internal HDD | CBl-0289L | 1 | Y split, big 4 pin to two RA SATA power estenstion 30cm | |||
| Hot-swap 2.5" kit (FDD slot) | MCP-220-81504-0N | $ 113.00 | 1 | Single slim 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor | ||
| Hot-swap 2.5" kit (DVD slot) | MCP-220-81506-0N | $ 81.50 | 1 | Single slim 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor | ||
| Cooling Fan | FAN-0154L4 | $ 26.00 | 0 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan | ||
| Storage Controller card & cable | AOC-S3108L-H8iR& 1x CBL-SAST-0811 | 0 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Controller card & cable | AOC-S3108L-H8iR-16DD& 1x CBL-SAST-0811 | 0 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Controller card & cable | AOC-S3008L-L8i& 1x CBL-SAST-0811 | 0 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,63HDD, RAID 0, 1, 10 | |||
| Storage Controller card & cable | AOC-S3008L-L8e& 1x CBL-SAST-0811 | 0 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,122HDD HBA | |||
| Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 | |||
| Network Card(s) | AOC-STGN-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | |||
| Network Card(s) | AOC-STGF-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 | |||
| Network Card(s) | AOC-STG-B4S | $ 408.00 | 0 | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | ||
| Network Card(s) | AOC-STGS-i2T | 0 | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 | |||
| Network Card(s) | AOC-S25G-b2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 | |||
| Network Card(s) | AOC-S25G-m2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX | |||
| Front Bezels | CSE-PTFB-813LB | $ 27.00 | 0 | Black front bezels | ||
| Front Bezels | CSE-PTFB-813-02B | $ 25.50 | 0 | Black Front Bezel w/ Round Venting Holes | ||
| TPM security module | AOM-TPM-9665V | $ 43.00 | 1 | TPM 2.0, vertical form factor | ||
| TPM security module | AOM-TPM-9655V | $ 43.00 | 1 | TPM 1.2, vertical form factor | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
