| Motherboard |
| Motherboard | Super A1SRi-2758F |
| Processor/Cache |
| CPU | Intel® Atom™ Processor C2758 |
| System Memory |
| Memory Capacity | 4x 204-pin DDR3 SO-DIMM slots |
| Supports up to 64GB DDR3 ECC memory |
| Memory Type | 1600/1333MHz ECC DDR3 SDRAM 72-bit, 204-pin gold-plated DIMMs |
| DIMM Sizes | 16GB, 8GB, 4GB, 2GB |
| Memory Voltage | 1.5 V, 1.35 V |
| On-Board Devices |
| SATA | SoC SATA3 (6Gbps), SATA2 (3Gbps) |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| C2000 Soc I354 Quad GbE Controllers (MACs) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Graphics | BMC integrated ASPEED AST2400 |
| USB 3.0 | Renesas uPD720201 |
| Input / Output |
| Serial ATA | 2x SATA3 (6Gbps) ports |
| 4x SATA2 (3Gbps) ports |
| LAN | 4x RJ45 Gigabit Ethernet LAN ports |
| 1x RJ45 Dedicated IPMI LAN port |
| USB | 3x USB 3.0 ports (2 rear, 1 Type A) |
| Serial Port | 1x Fast UART 16550 Serial Port (rear) |
| DOM | 1x SATA DOM (Disk on Module) power connector |
| VGA | 1x VGA Port |
| Others | TPM 1.2 header |
| Management |
| Software | Watch Dog |
| NMI |
| SuperDoctor® 5 |
| Chassis |
| Form Factor | Mini Tower |
| Model | CSE-721TQ-250B |
| Dimensions and Weight |
| Height | 9.45" (240mm) |
| Width | 8.27" (210mm) |
| Depth | 11" (279mm) |
| Weight | Gross Weight: 15 lbs (6.8 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Power LED |
| Network activity LEDs |
| Hard drive activity LED |
| System Overheat LED |
| Expansion Slots |
| PCI-E | 1x PCI-E 2.0 x8 slot |
| Drive Bays |
| HDD | 4x 3.5" Hot-swap SATA trays |
| 2x 2.5" internal HDD bays |
| Power Supply |
| Power Supply | 250W Flex ATX Multi-output Bronze Power Supply |
| AC Voltage | 100 - 240V, 50 - 60Hz |
| +5V | Max:14 Amp; Min:0.5 Amp |
| +12V | Max:18 Amp; Min:1 Amp @100V-240V |
| -12V | Max: 0.3 Amp |
| +3.3V | Max: 12 Amp Min: 0.3Amp |
| 5VSB | Max: 2.5 Amp |
| Certification | Bronze Certified |
| System BIOS |
| BIOS Type | 64Mb SPI Flash EEPROM with AMI UEFI BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| ACPI 5.0 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| UEFI |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Operating Relative Humidity: 10% to 85% (non-condensing) |
| Non-operating Relative Humidity: 10% to 95% (non-condensing) |
| Non-operating Temperature: -20°C to 60°C (-4°F to 140°F) |
| Product SKUs |

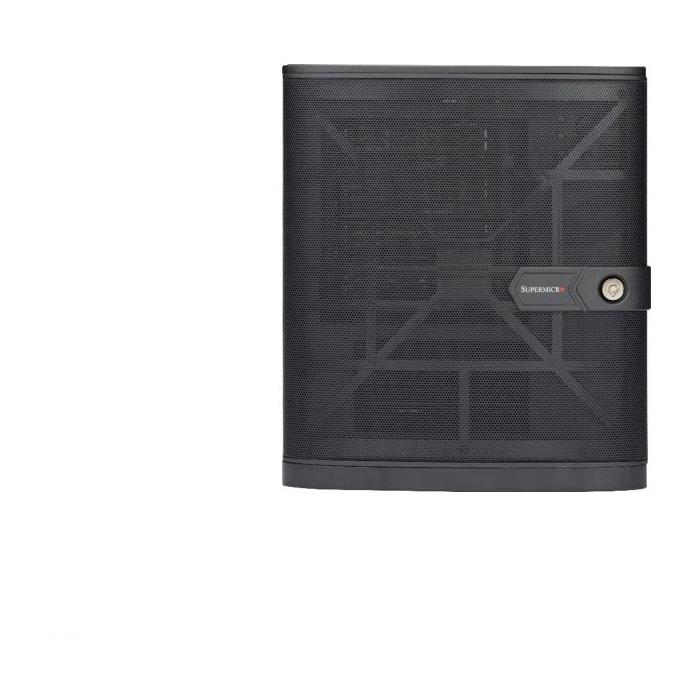

| Product SKUs | SuperServer 5028A-TN4 (Black) |
